All Gauges Not Operating

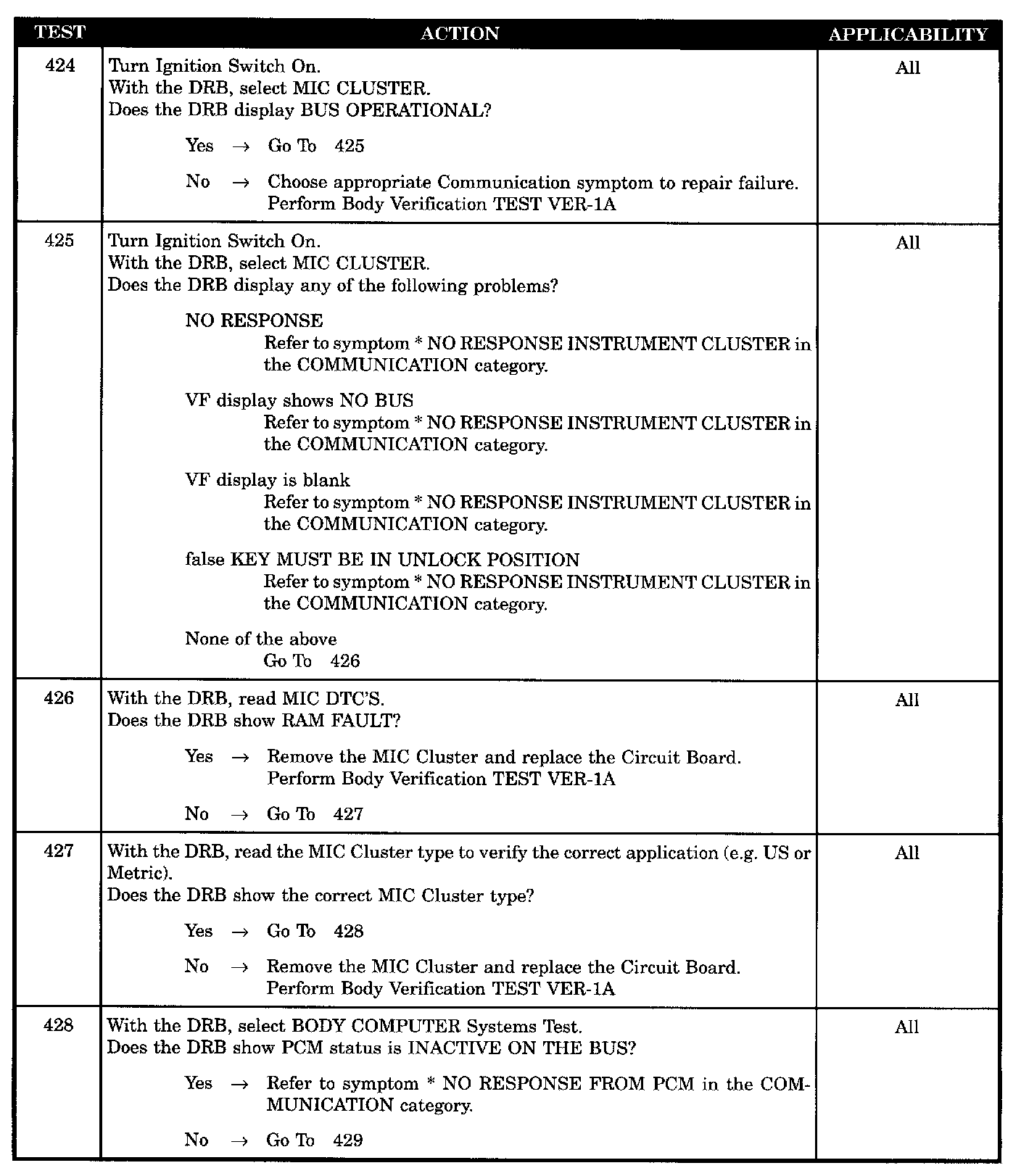

Test 424 - 428:

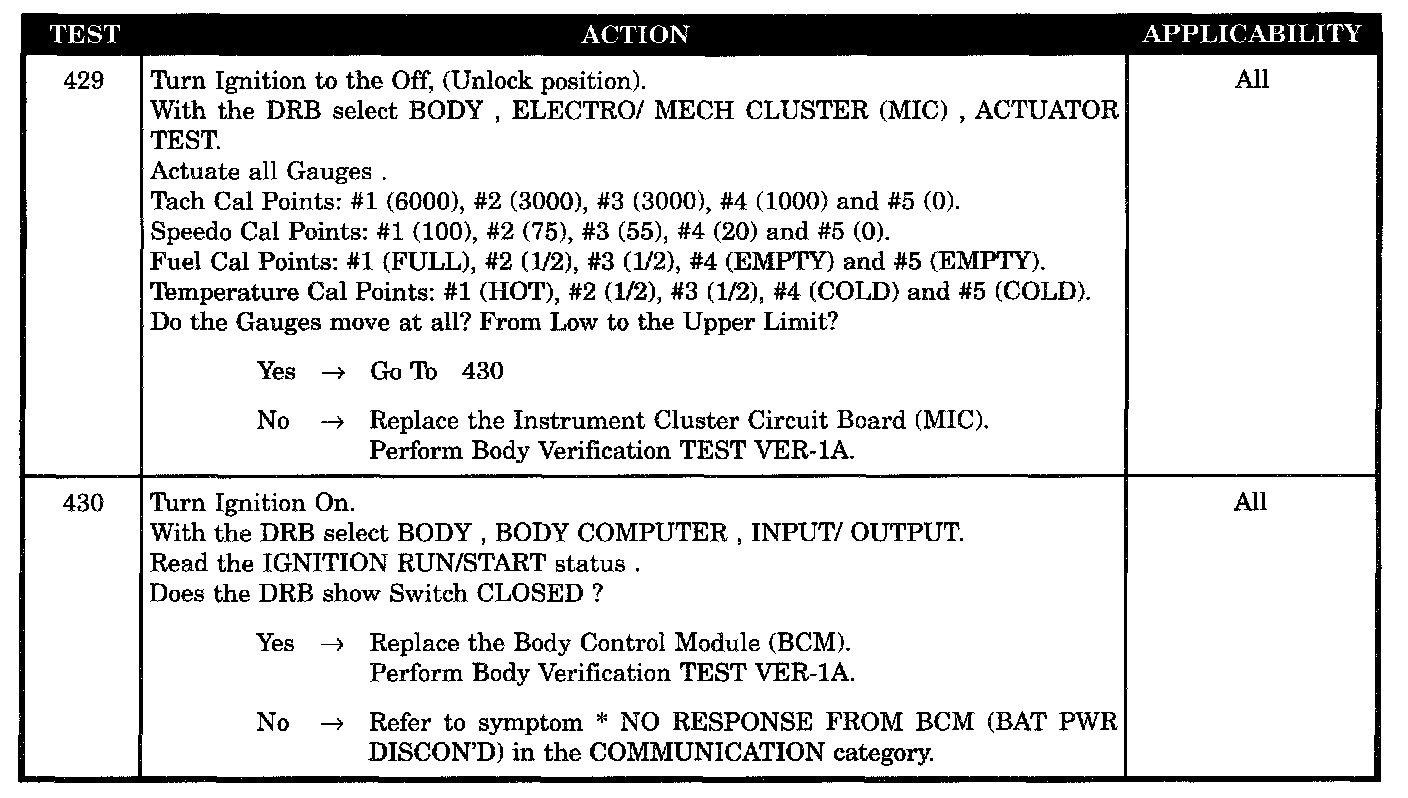

Test 429 - 430:

SYMPTOM
* ALL GAUGES NOT OPERATING

POSSIBLE CAUSES
- BCM IGN run/start input CKT defective
- Instrument cluster CKT board out of SPEC
- DRB displays RAM fault
- DRB shows BUS operational failure
- MIC cluster mismatch
