CCD Short to Ground

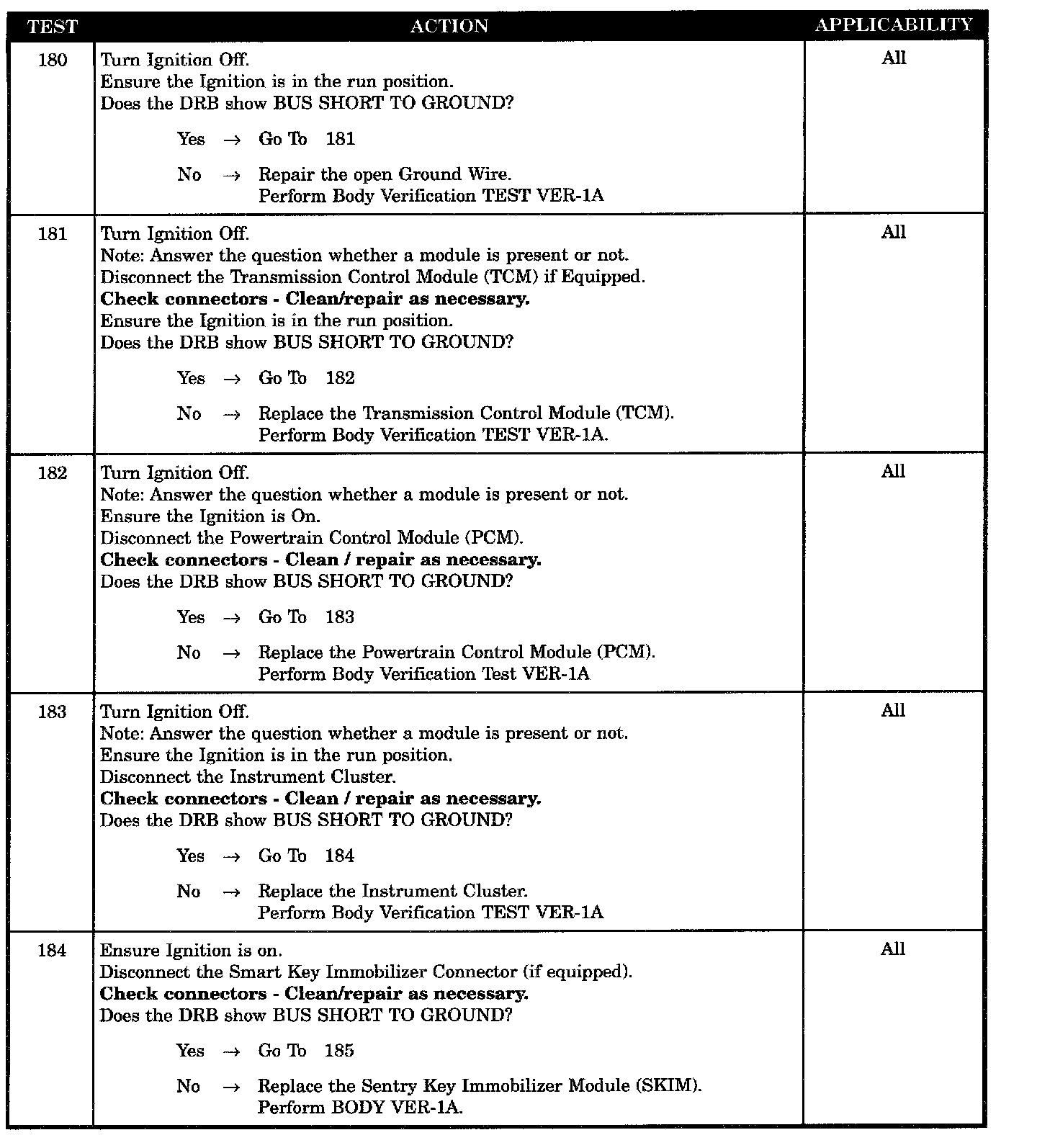

Test 180 - 184:

Test 185 - 189:

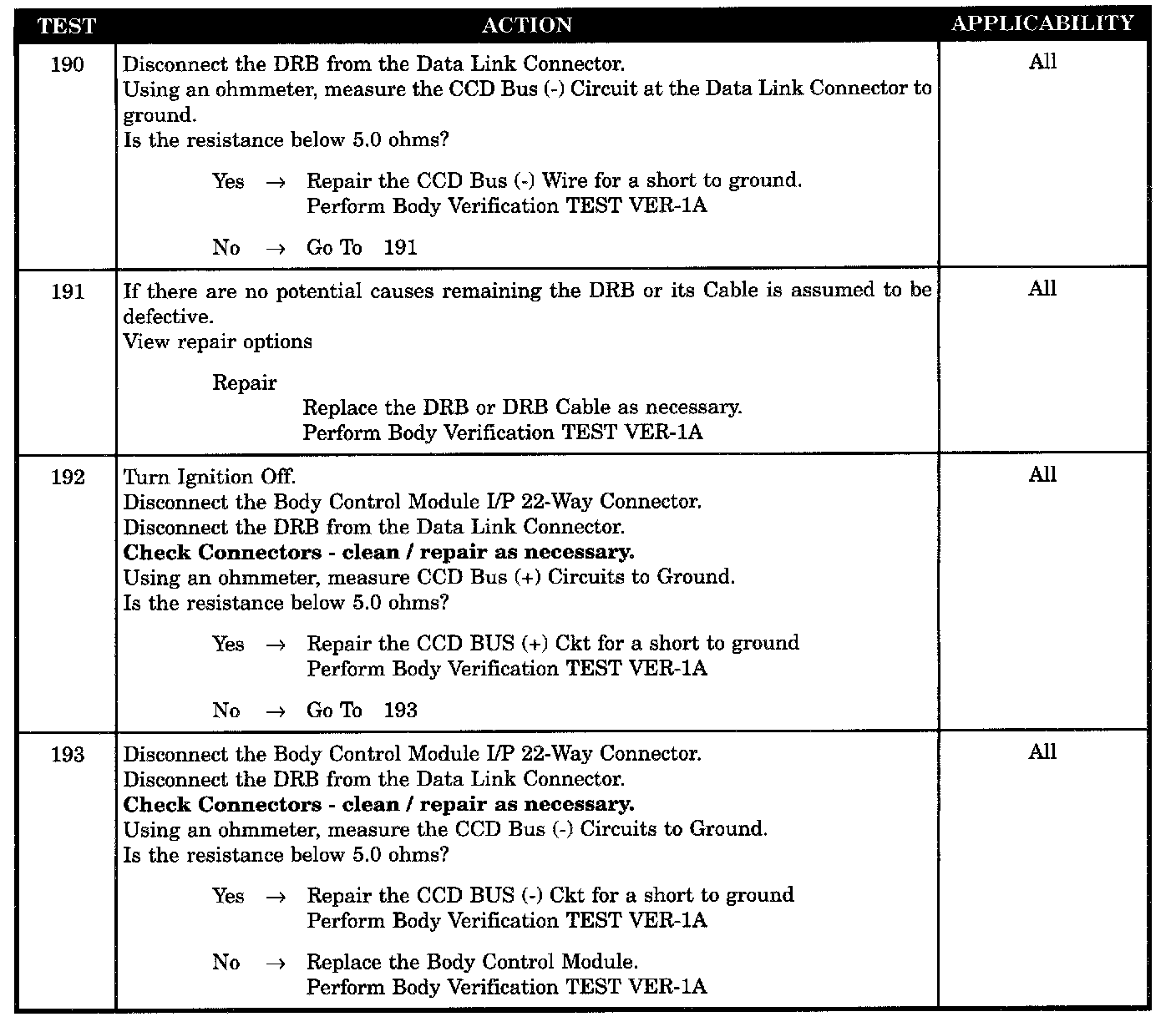

Test 190 - 193:

SYMPTOM
* CCD SHORT TO GROUND

POSSIBLE CAUSES
- Defective DRB/SHORT TO GROUND
- CCD ground wire open
- OPEN ground CKT/Body control module
- CCD bus (+) short to ground
- CCD bus (+) wire-short to ground
- CCD bus (-) short to ground
- CCD bus (-) wire-short to ground
- CCD instrument cluster short to ground
- CCD PCM short to ground
- CCD CAB short to ground
- CCD ACM short to ground
- CCD SKIM short to ground
- CCD TCM short to ground
- Defective BCM-bus (-) short to ground
