Bus (+) and Bus (-) Shorted Together

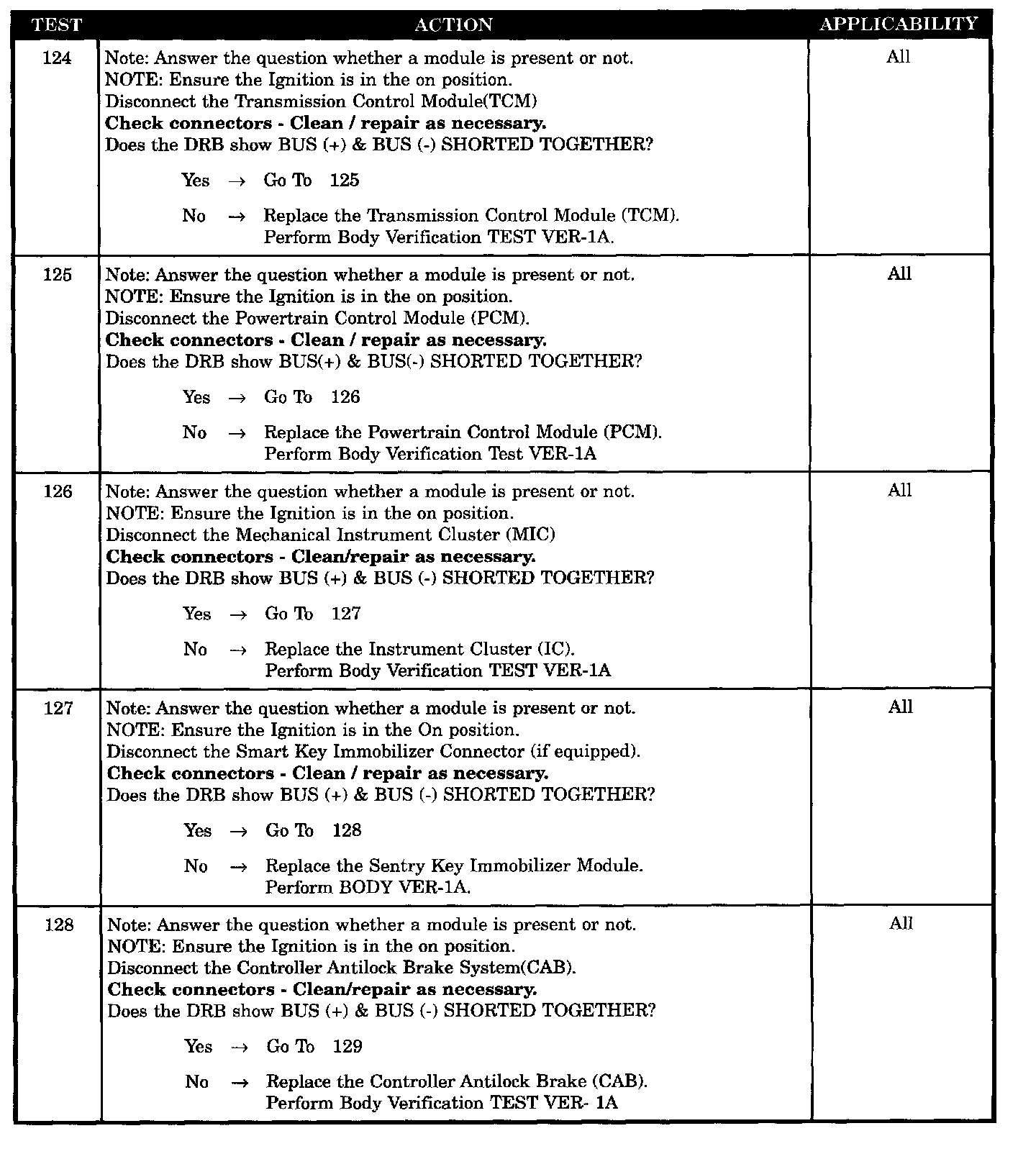

Test 124 - 128:

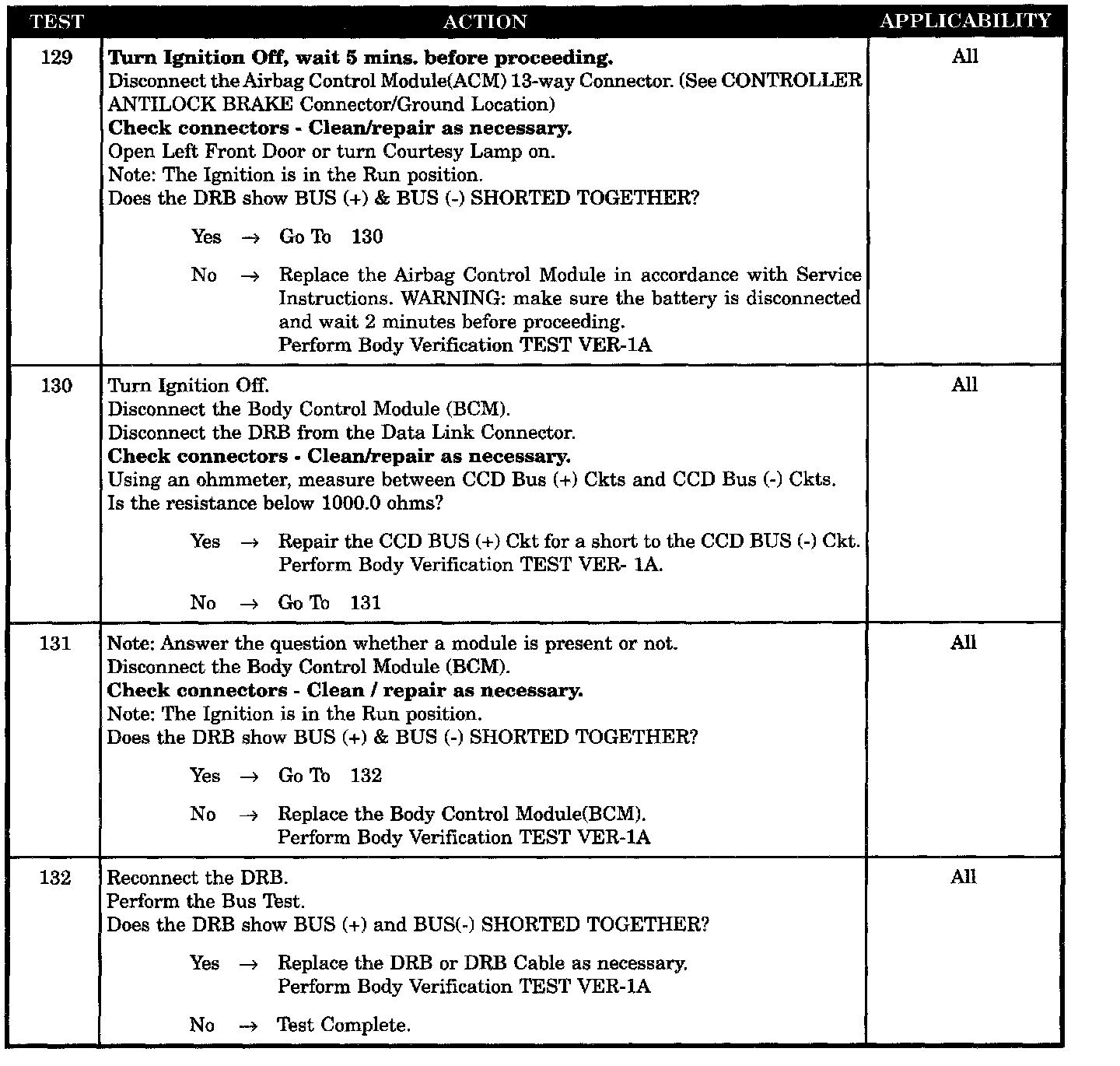

Test 129 - 132:

SYMPTOM
* BUS (+) AND BUS (-) SHORTED TOGETHER

POSSIBLE CAUSES
- Defective DRB/BUS (+) short to bus(-)
- CCD bus circuit bus (+) short to bus (-)
- CCD IC bus (+) short to bus (-)
- CCD PCM bus (+) short to bus (-)
- CCD CAB bus (+) short to bus (-)
- CCD BCM bus (+) short to bus (-)
- CCD ACM bus (+) short to bus(-)
- CCD SKIM bus (+) short to bus (-)
- CCD TCM bus (+) short to bus (-)
