Headlamp Time Delay Feature Inoperative

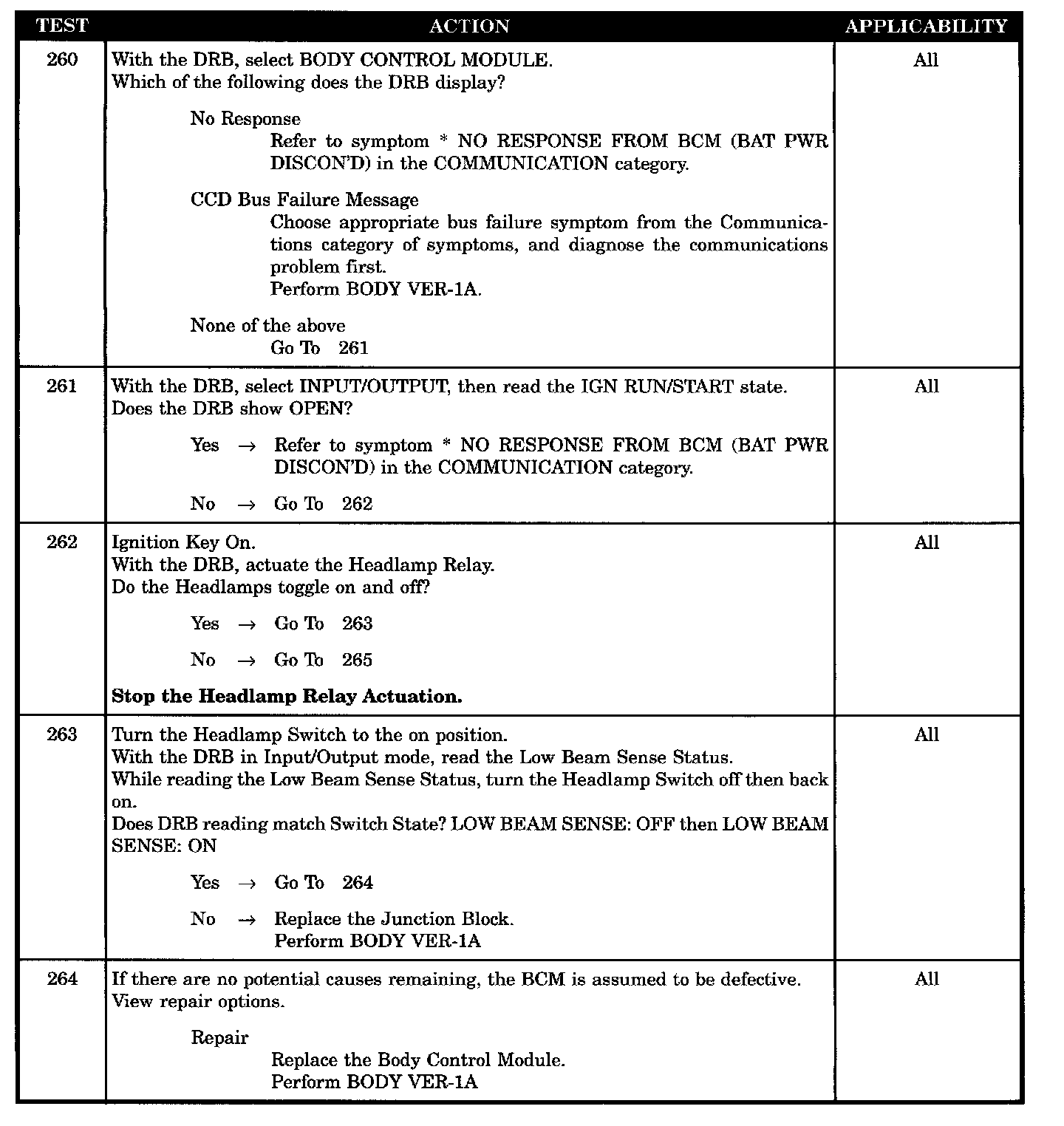

Test 260 - 264:

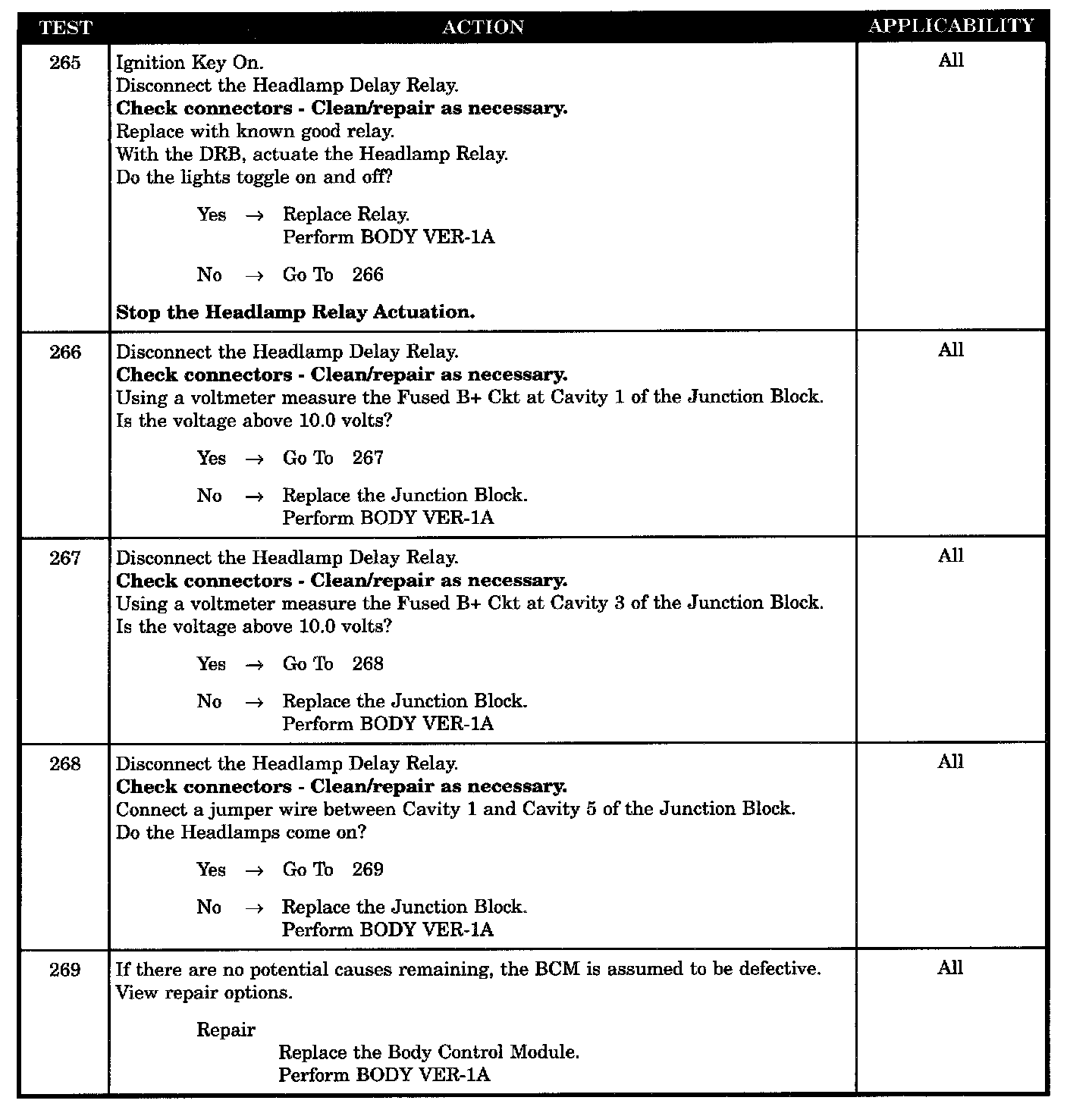

Test 265 - 269:

SYMPTOM
* HEADLAMP TIME DELAY FEATURE INOPERATIVE

POSSIBLE CAUSES
- No response (BCM)/CCD bus failure
- Headlamp delay RLY Defective-no toggle with actuation
- JUNC block defective-B+ jumper fails to light headlamps
- Junction block defective-fused B+ at cavity 1
- Junction block defective-fused B+ at cavity 3
- Junction block defective-low beam sense function
- BCM defective (low beam sense status) by default
- BCM defective (delay relay function) by default
