Courtesy Lamp Inoperative With Right Front Door

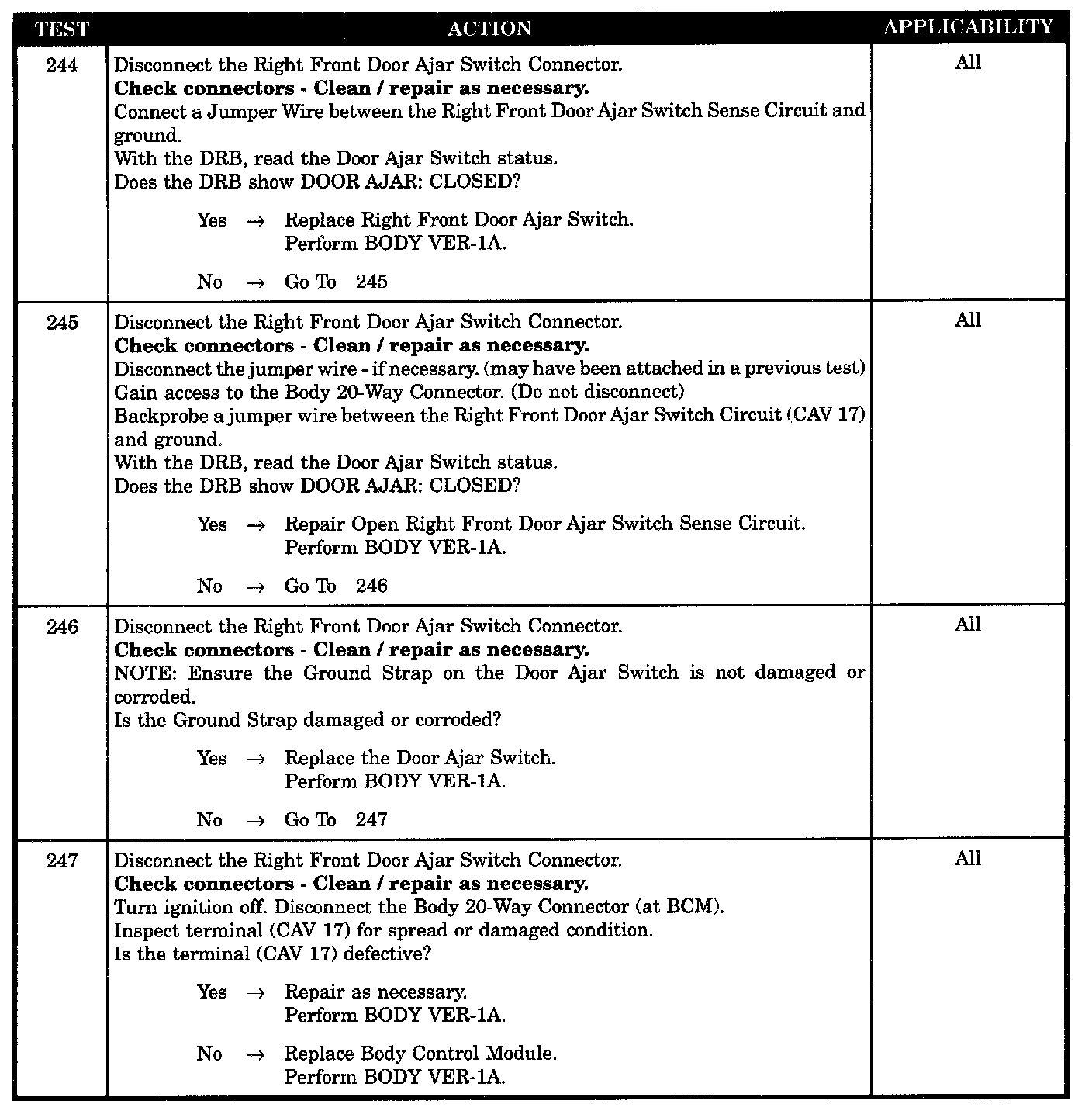

Test 244 - 247:

SYMPTOM
* COURTESY LAMP INOPERATIVE WITH RIGHT FRONT DOOR

TEST NOTE: All symptoms listed above are diagnosed using the same tests. The title for the tests will be * OPEN PASSENGER (RIGHT FRONT) DOOR AJAR CIRCUIT.

POSSIBLE CAUSES
- RF door ajar (closed) switch defective (closed)
- Body control module defective open input (CAV 17)
- Body 20-way connector defective (CAV 17)
- RF door ajar switch sense circuit defective (closed)
- RF door switch ground strap corroded/Damaged
