Right Rear Sensor Circuit Failure

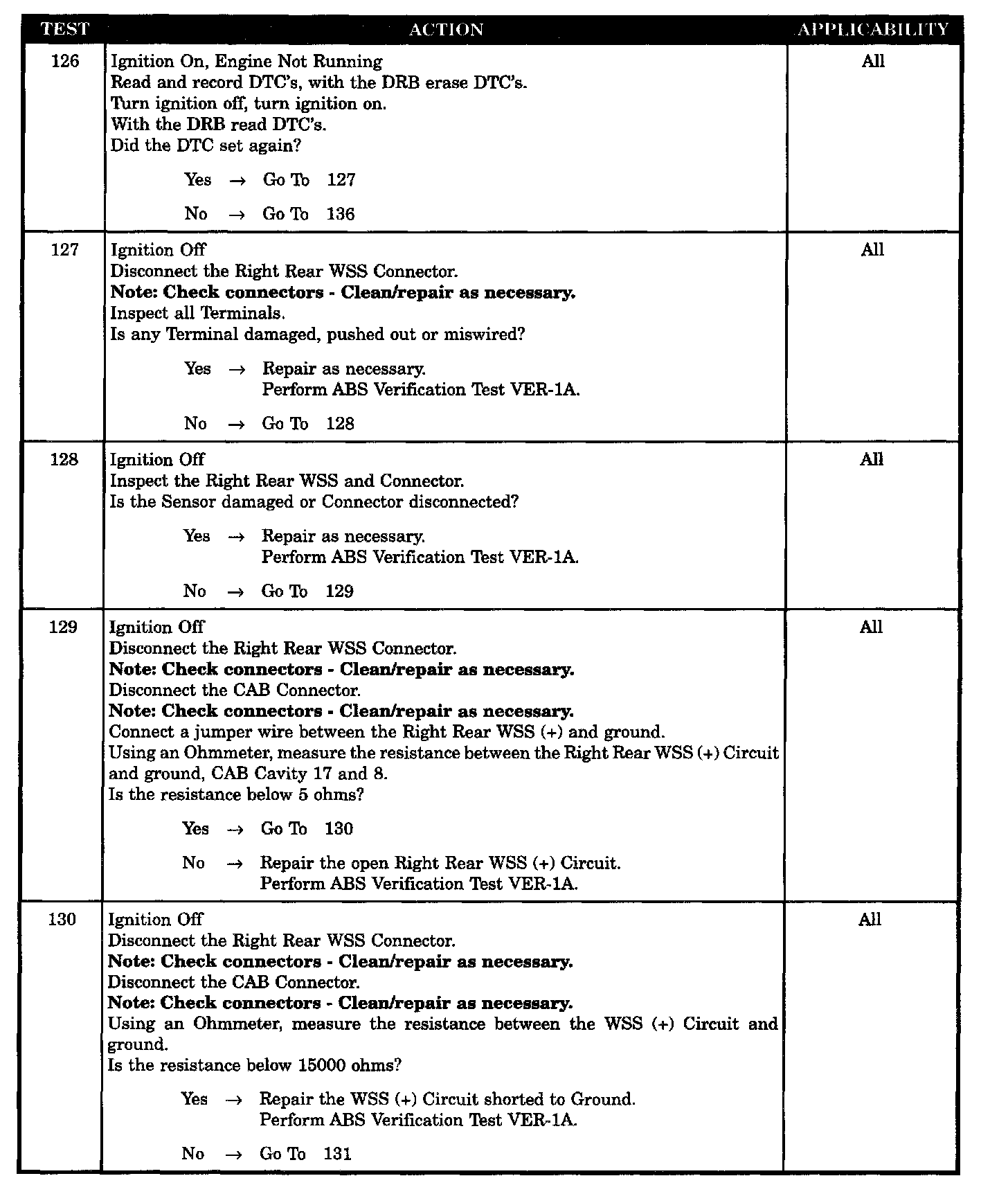

Tests 126 Through 130:

Tests 131 Through 135:

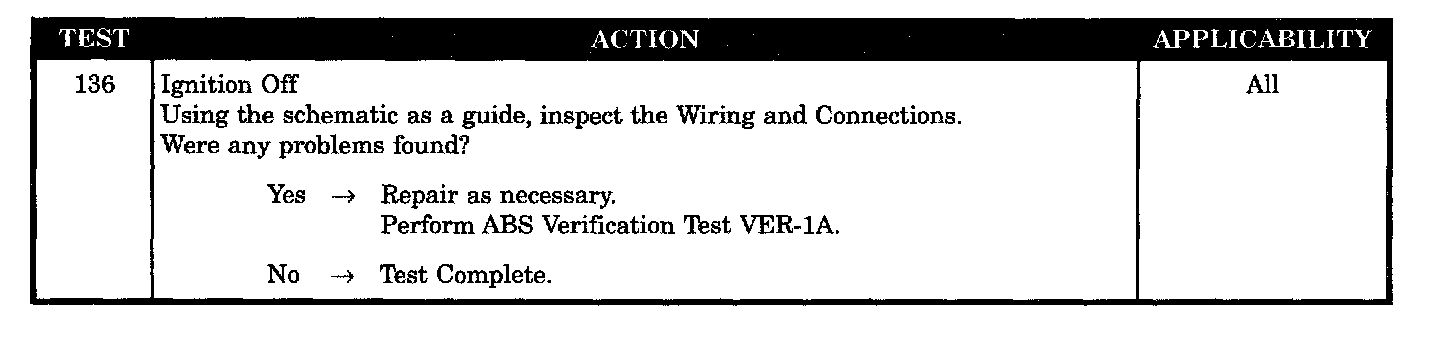

Test 136:

Symptom:
RIGHT REAR SENSOR CIRCUIT FAILURE

When Monitored:
1. Ignition on.
2. The CAB monitors the wheel speed circuit continuity at all times.

Set Condition:
If the CAB detects an open or shorted wheel speed sensor circuit, the diagnostic trouble code (DTC) will set.

Possible Causes
CAB DEFECTIVE
WIRING AND CONNECTORS OBSERVABLE DEFECT
WSS CIRCUIT OPEN
WSS CIRCUIT SHORTED TO GROUND
WSS CIRCUIT OPEN
WSS CIRCUIT SHORTED TO GROUND
WSS CONNECTOR OBSERVABLE DAMAGE
WSS DAMAGED OR CONNECTOR DISCONNECTED
WSS DEFECTIVE (ISOLATION CHECK)
WSS DEFECTIVE (RESISTANCE CHECK)
