Right Front Sensor Circuit Failure

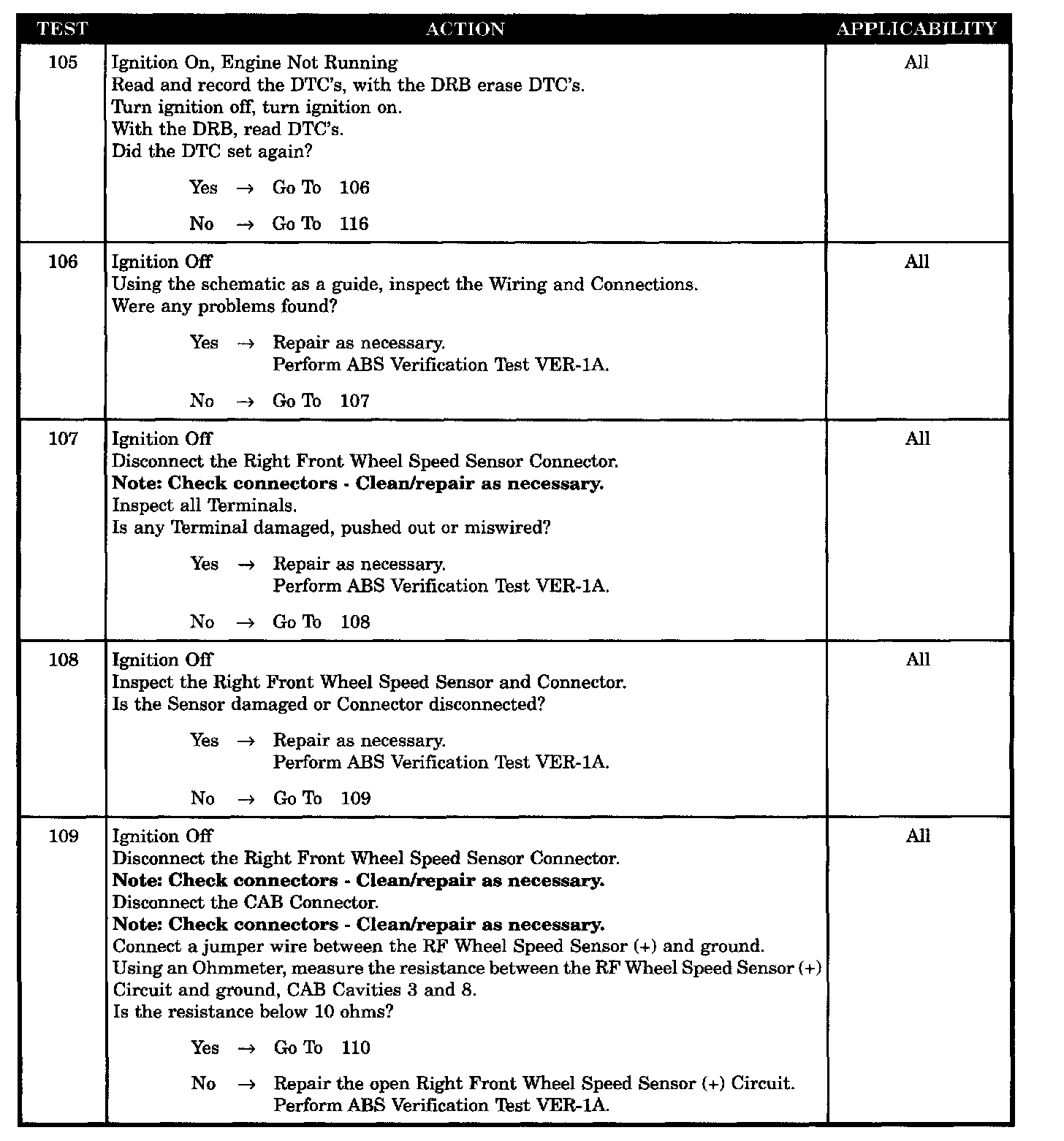

Tests 105 Through 109:

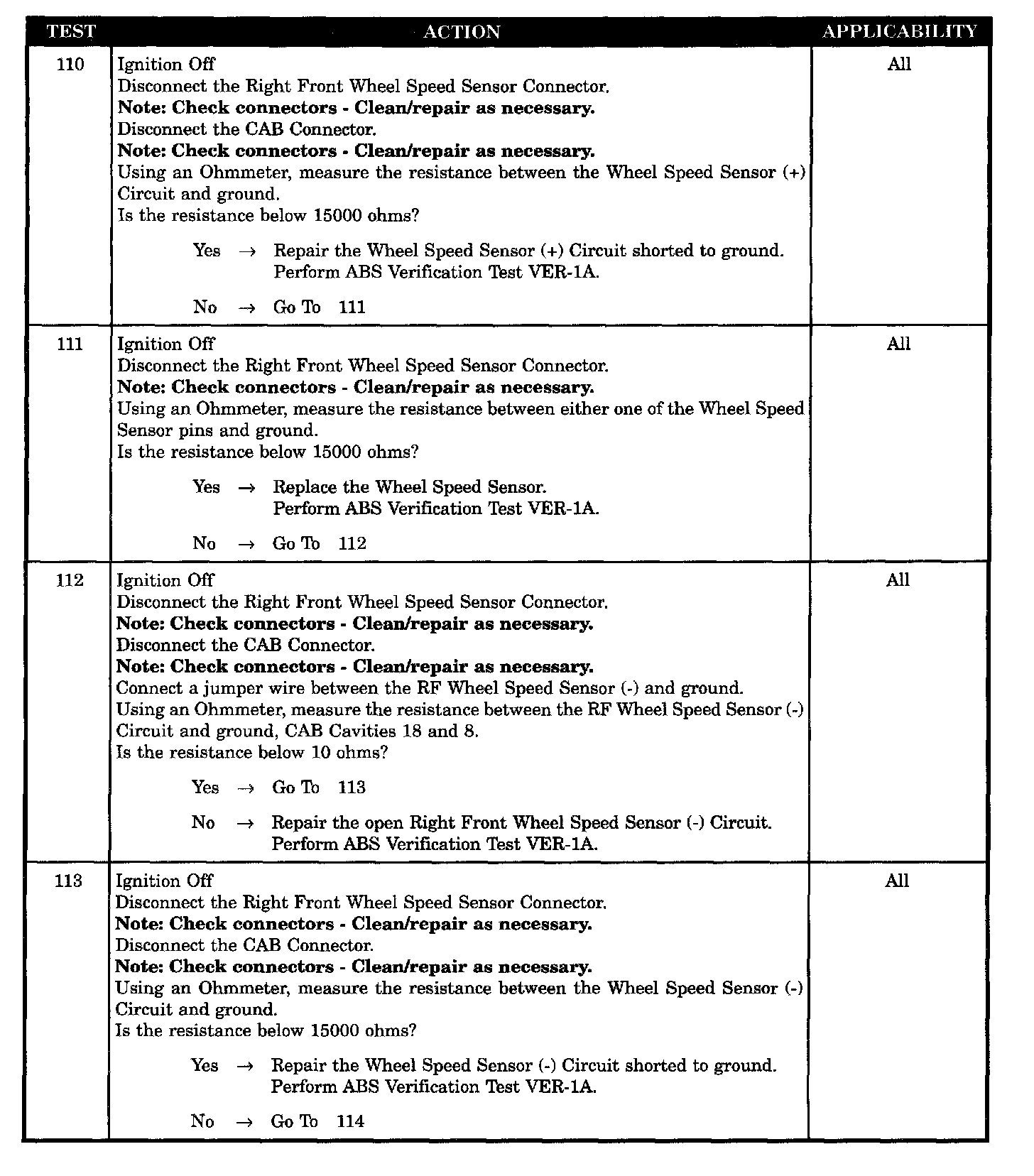

Tests 110 Through 113:

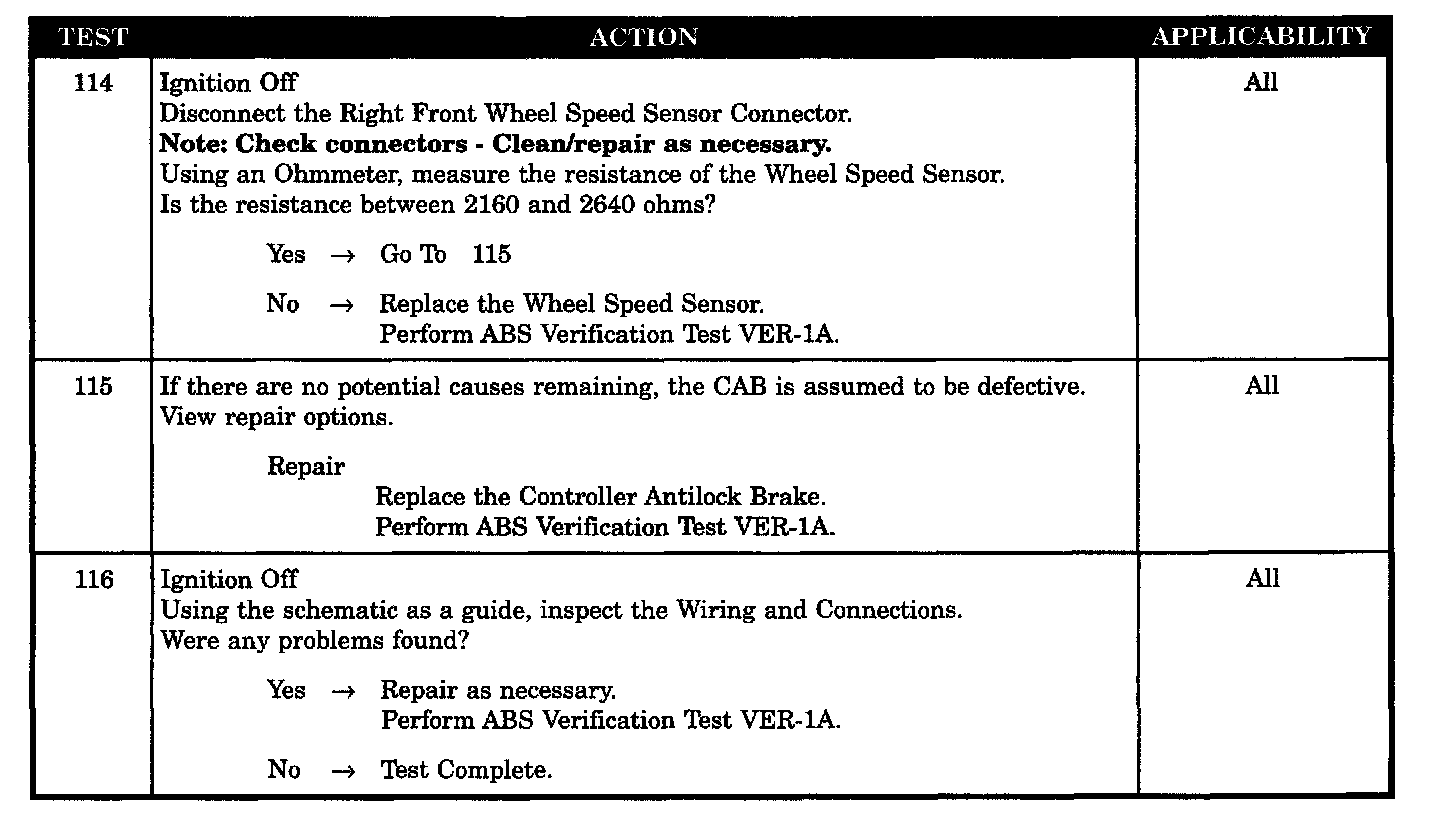

Tests 114 Through 116:

Symptom:
RIGHT FRONT SENSOR CIRCUIT FAILURE

When Monitored:
1. Ignition on.
2. The CAB monitors the wheel speed circuit continuity at all times.

Set Condition:
If the CAB detects an open or shorted wheel speed sensor circuit, the diagnostic trouble code (DTC) will set.

Possible Causes
CAB DEFECTIVE
WIRING AND CONNECTORS OBSERVABLE DEFECT
WSS CIRCUIT OPEN
WSS CIRCUIT SHORTED TO GROUND
WSS CIRCUIT OPEN
WSS W CIRCUIT SHORTED TO GROUND
WSS CONNECTOR OBSERVABLE DAMAGE
WSS DAMAGED OR CONNECTOR DISCONNECTED
WSS DEFECTIVE (ISOLATION CHECK)
WSS DEFECTIVE (RESISTANCE CHECK)
