Brake Switch

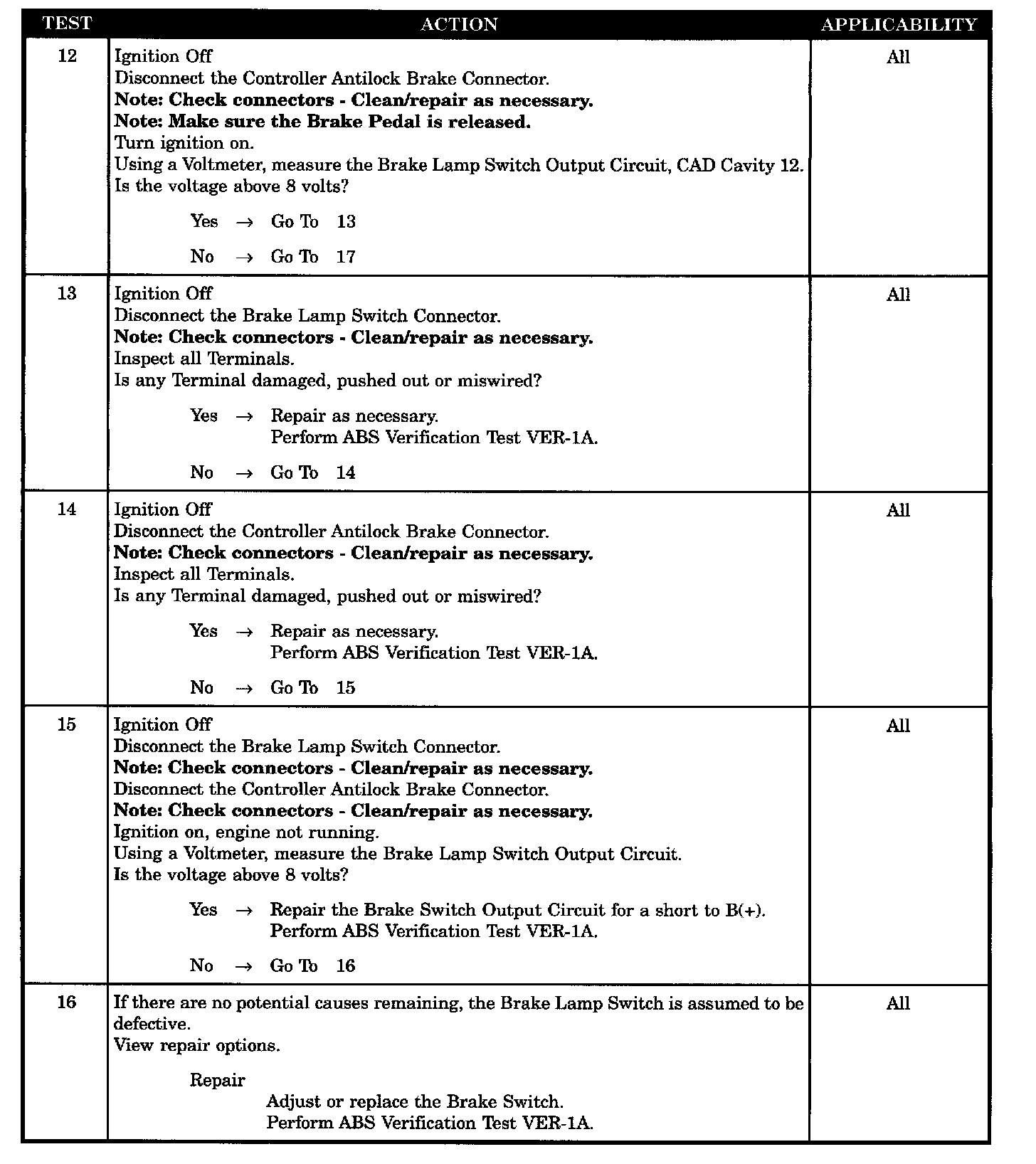

Tests 12 Through 16:

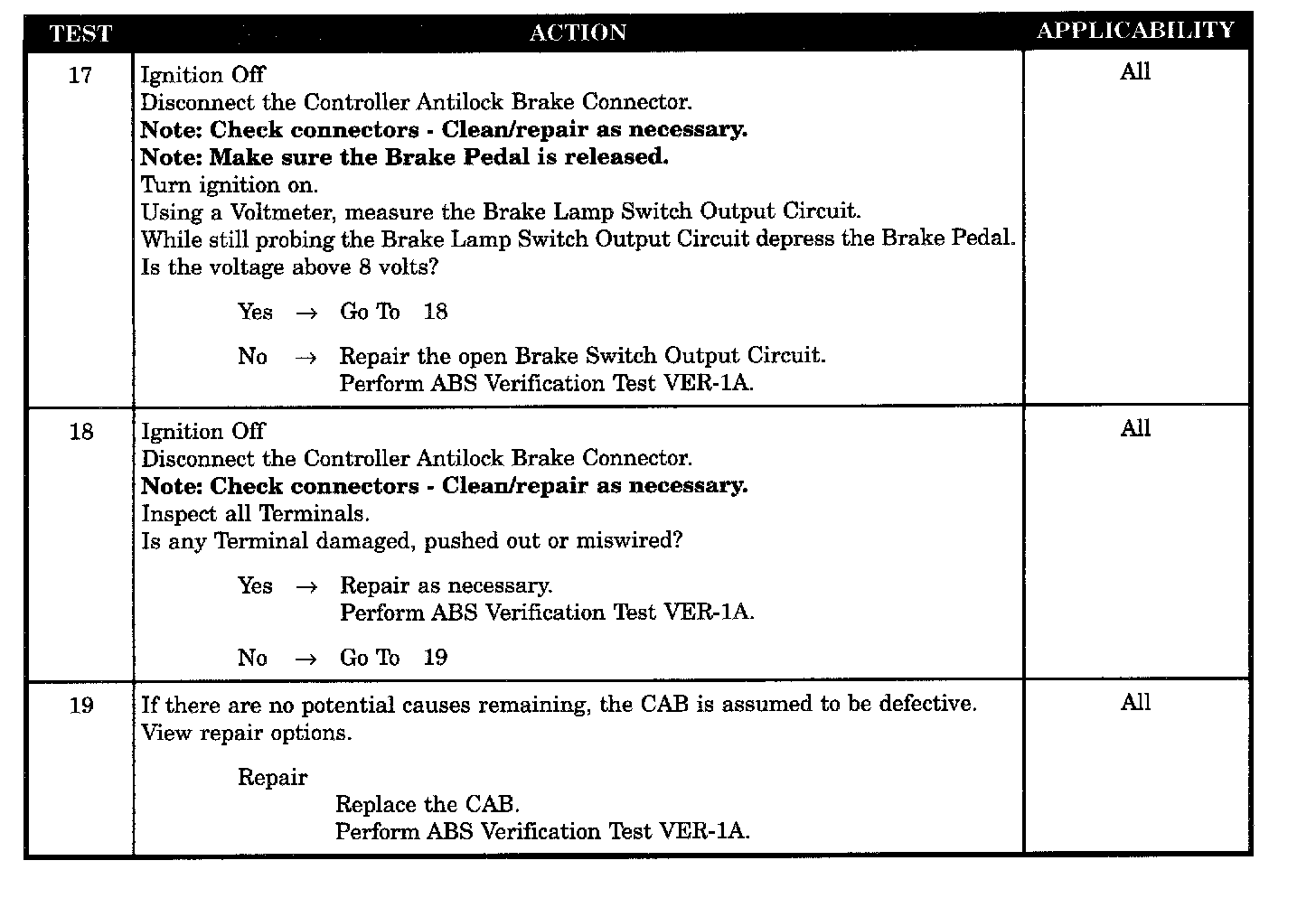

Tests 17 Through 19:

Symptom:
BRAKE SWITCH

Possible Causes
BRAKE SWITCH CONNECTOR OBSERVABLE DEFECT
BRAKE SWITCH DEFECTIVE
BRAKE SWITCH OUTPUT CIRCUIT OPEN
BRAKE SWITCH OUTPUT CIRCUIT SHORT TO B+
CAB CONNECTOR OBSERVABLE DEFECT
CAB DEFECT
