Driver Squib Circuit Shorted (Active)

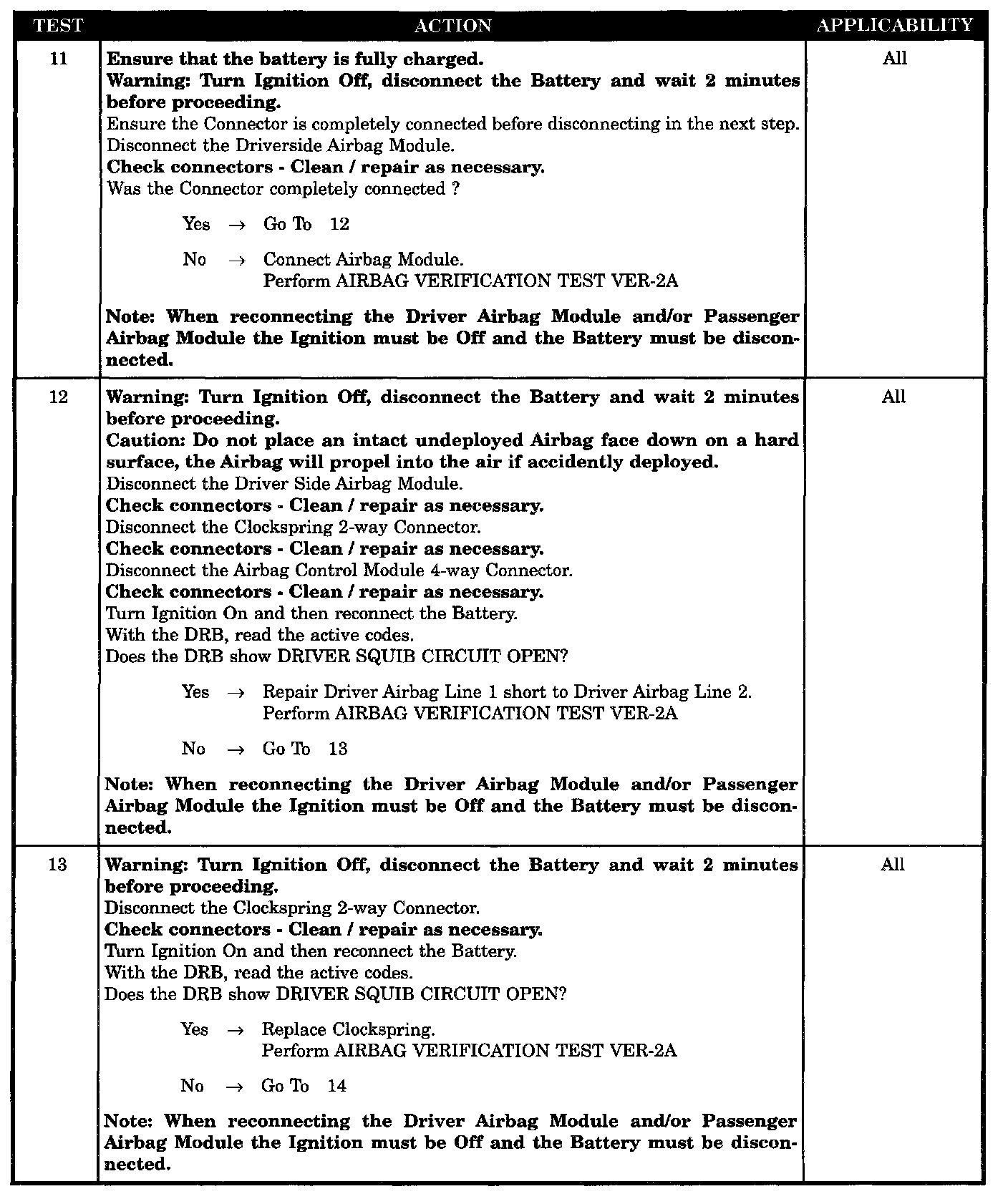

Test 11 - 13:

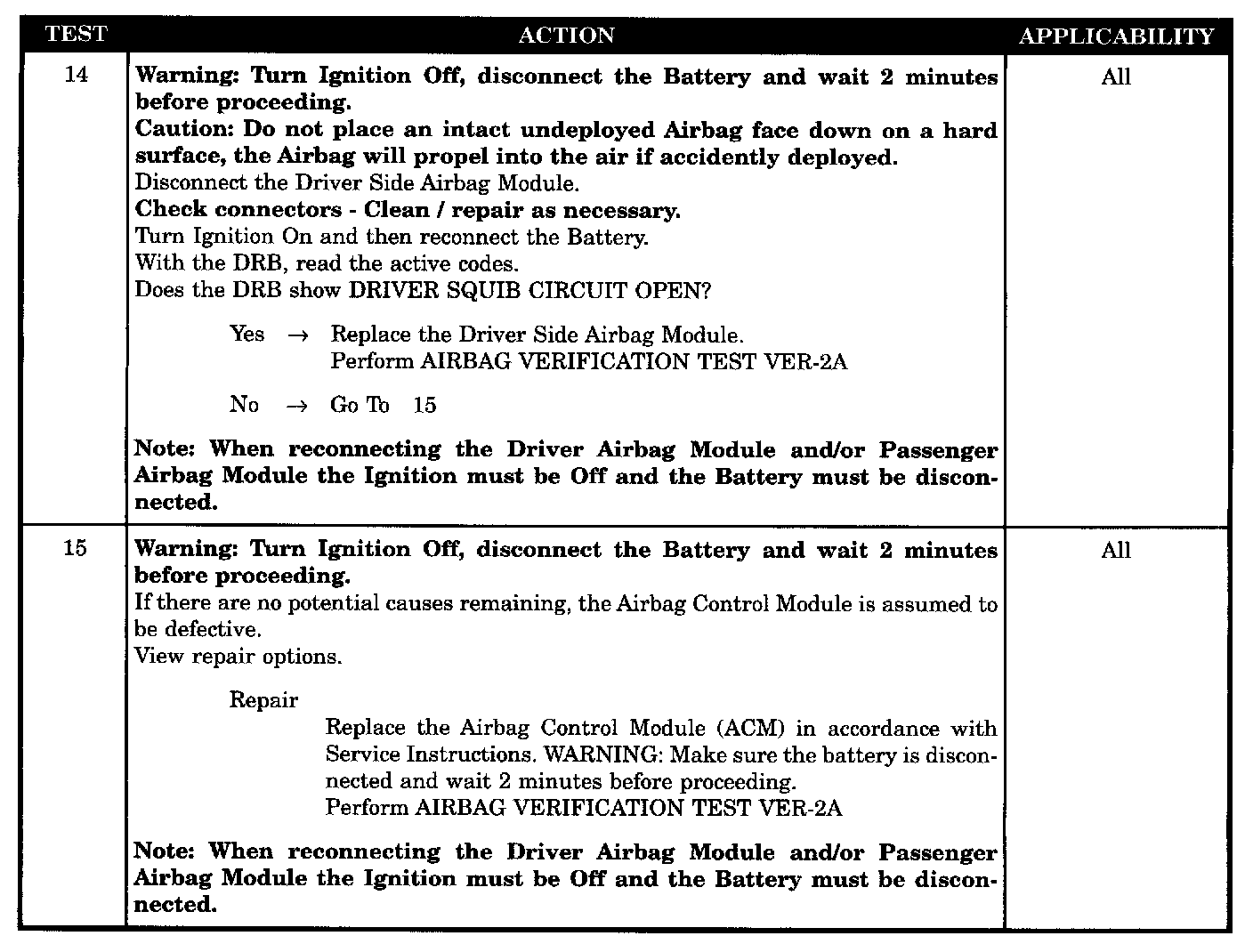

Test 14 - 15:

SYMPTOM
DRIVER SQUIB CIRCUIT SHORTED (ACTIVE)

WHEN MONITORED
Continuously with ignition on.

SET CONDITION
The ACM has detected low resistance in the Driver Squib Circuits.

POSSIBLE CAUSES
- Driver airbag connector disconnected
- Driver airbag line 1 shored to driver airbag line 2
- Clockspring shorted
- Driver airbag module shorted
- ACM defective driver airbag circuit shorted
