Brief Descriptions

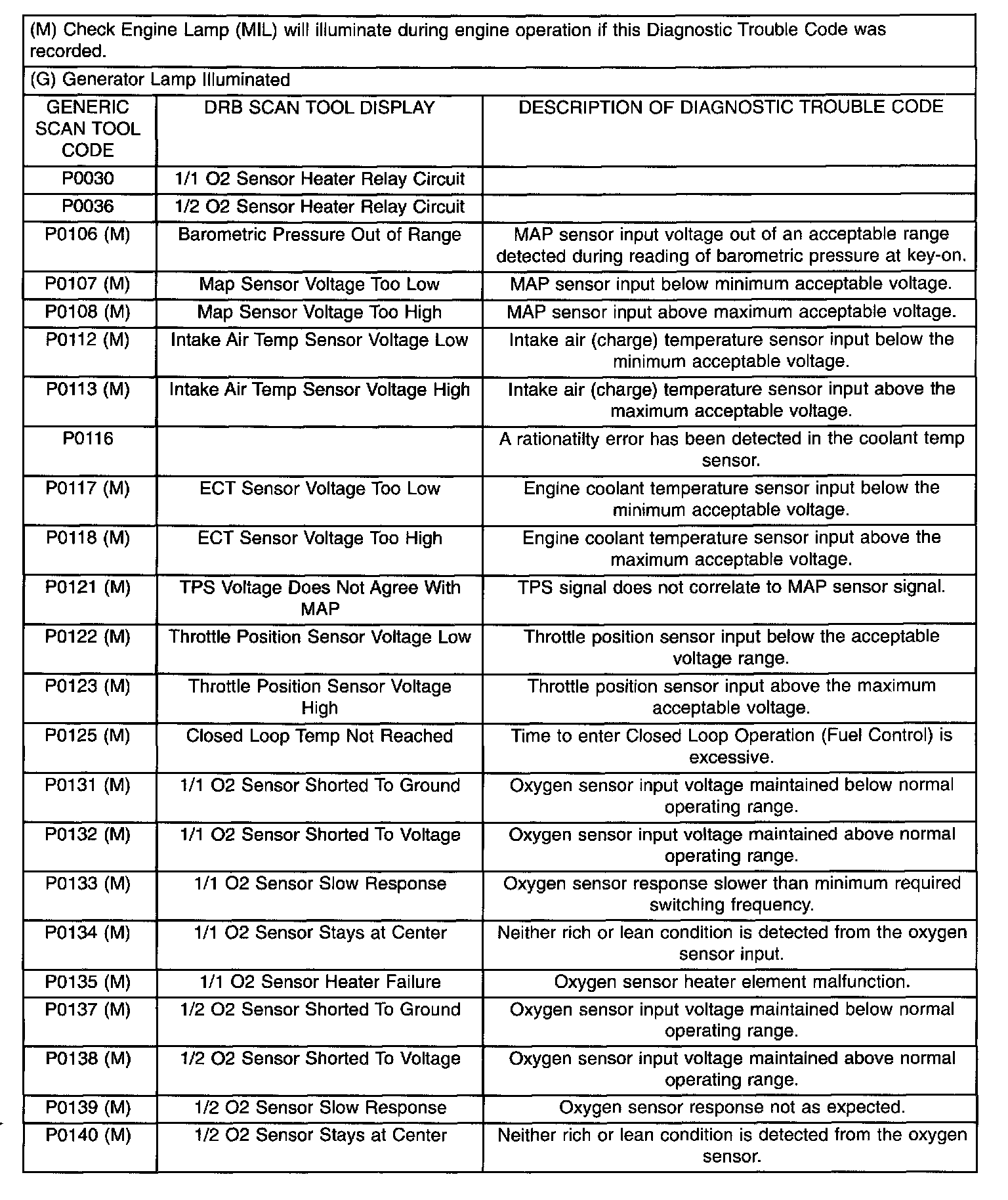

Diagnostic Trouble Code Descriptions (P0030 To P0140):

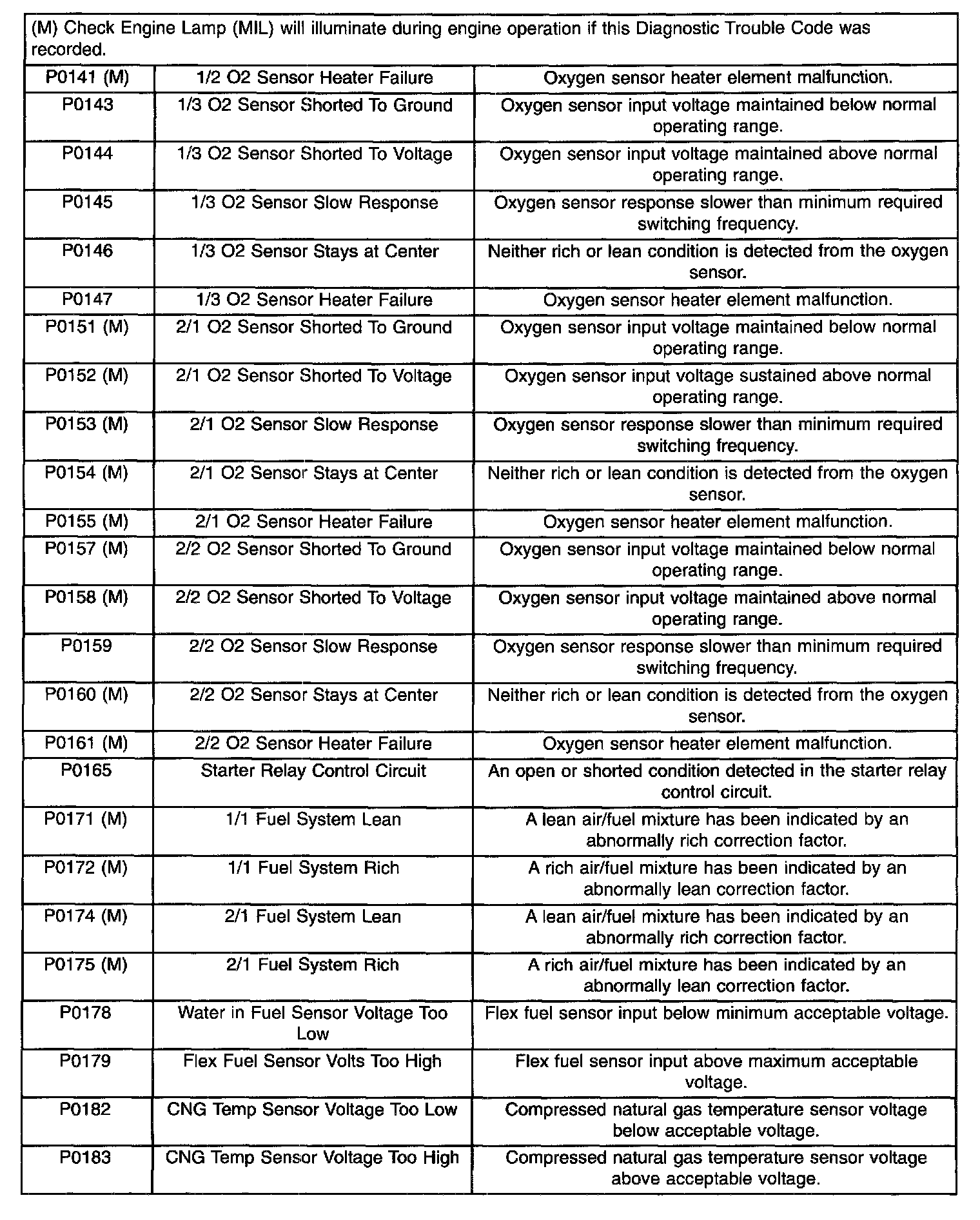

Diagnostic Trouble Code Descriptions (P0141 To P0183):

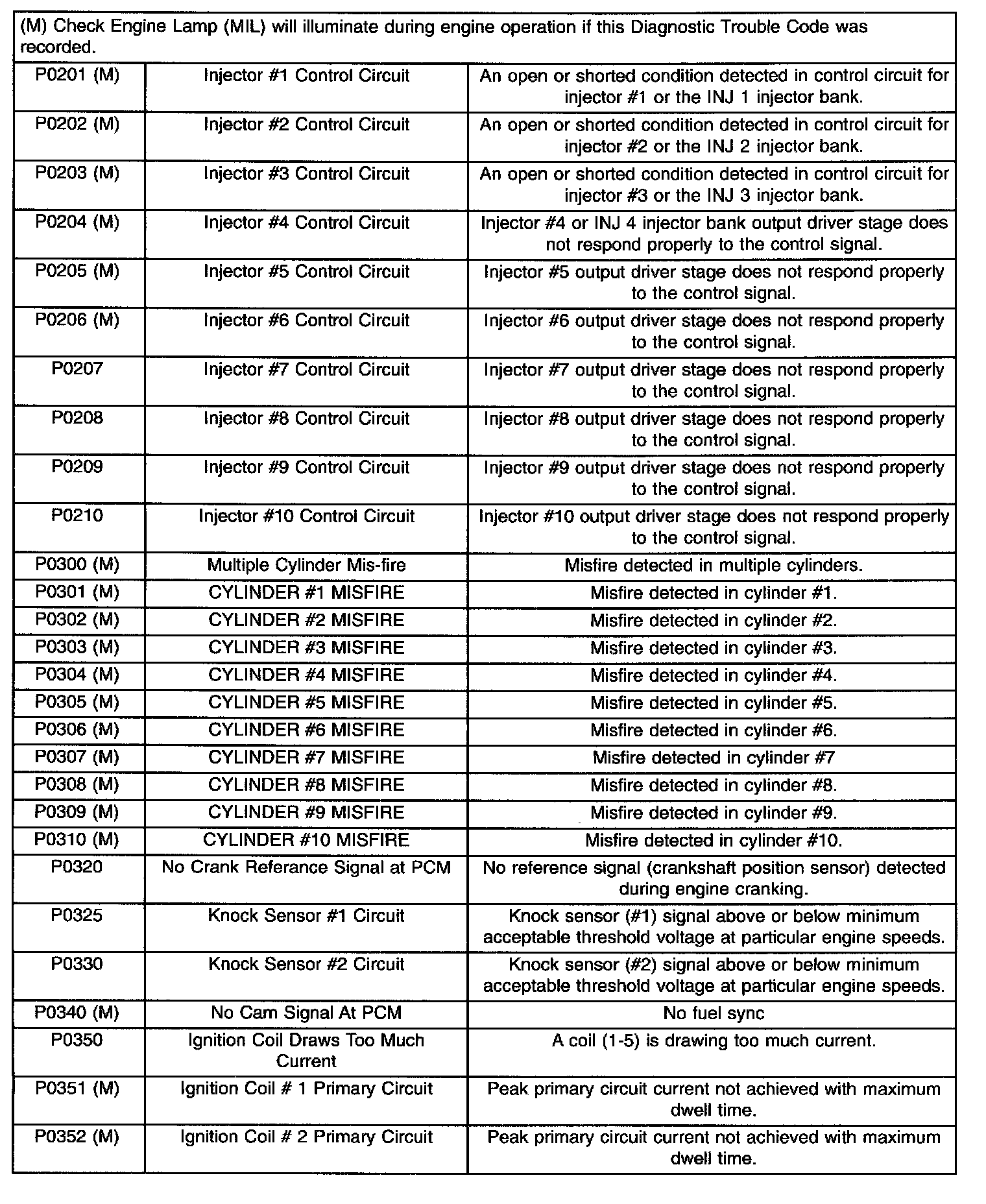

Diagnostic Trouble Code Descriptions (P0201 To P0352):

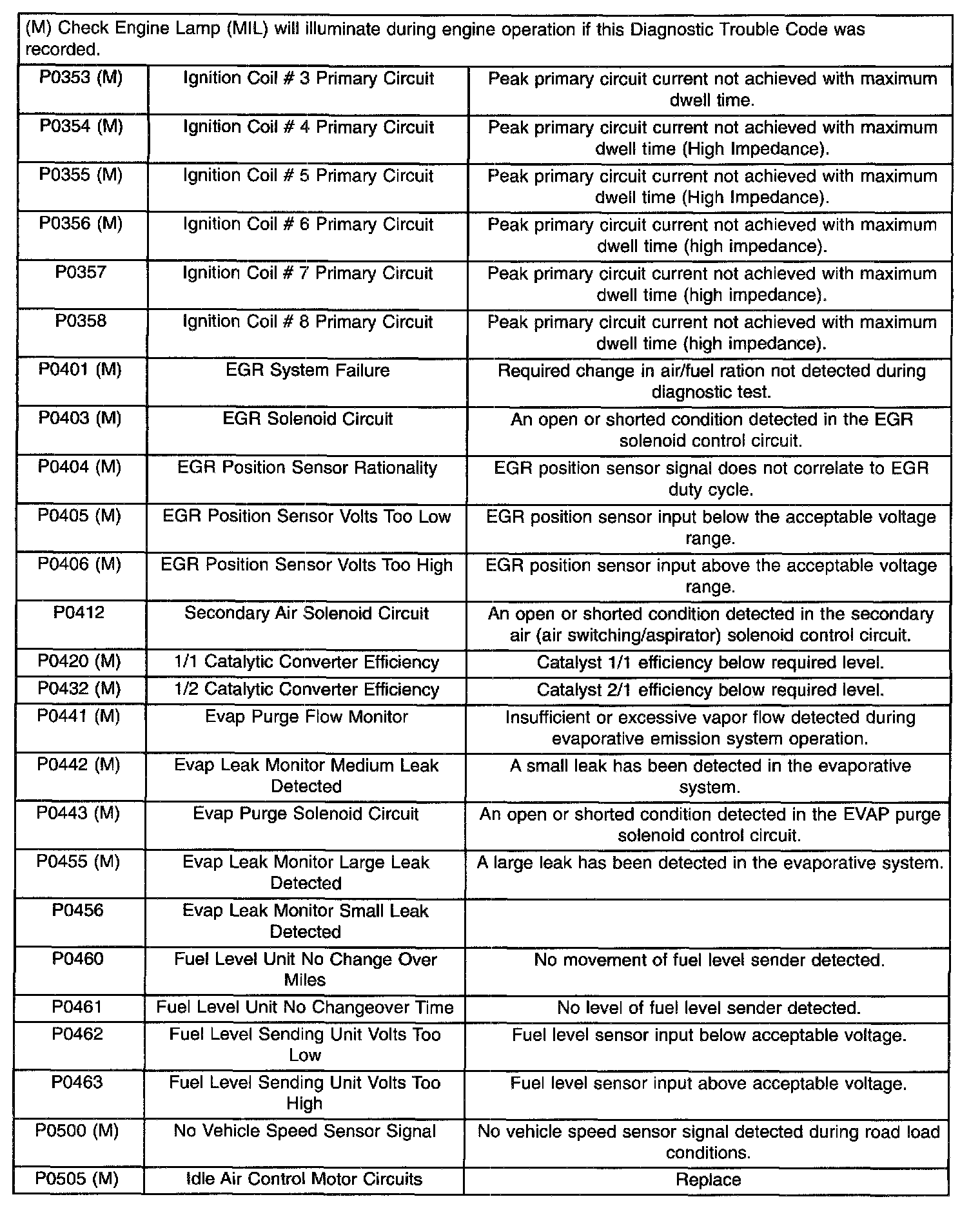

Diagnostic Trouble Code Descriptions (P0353 To P0505):

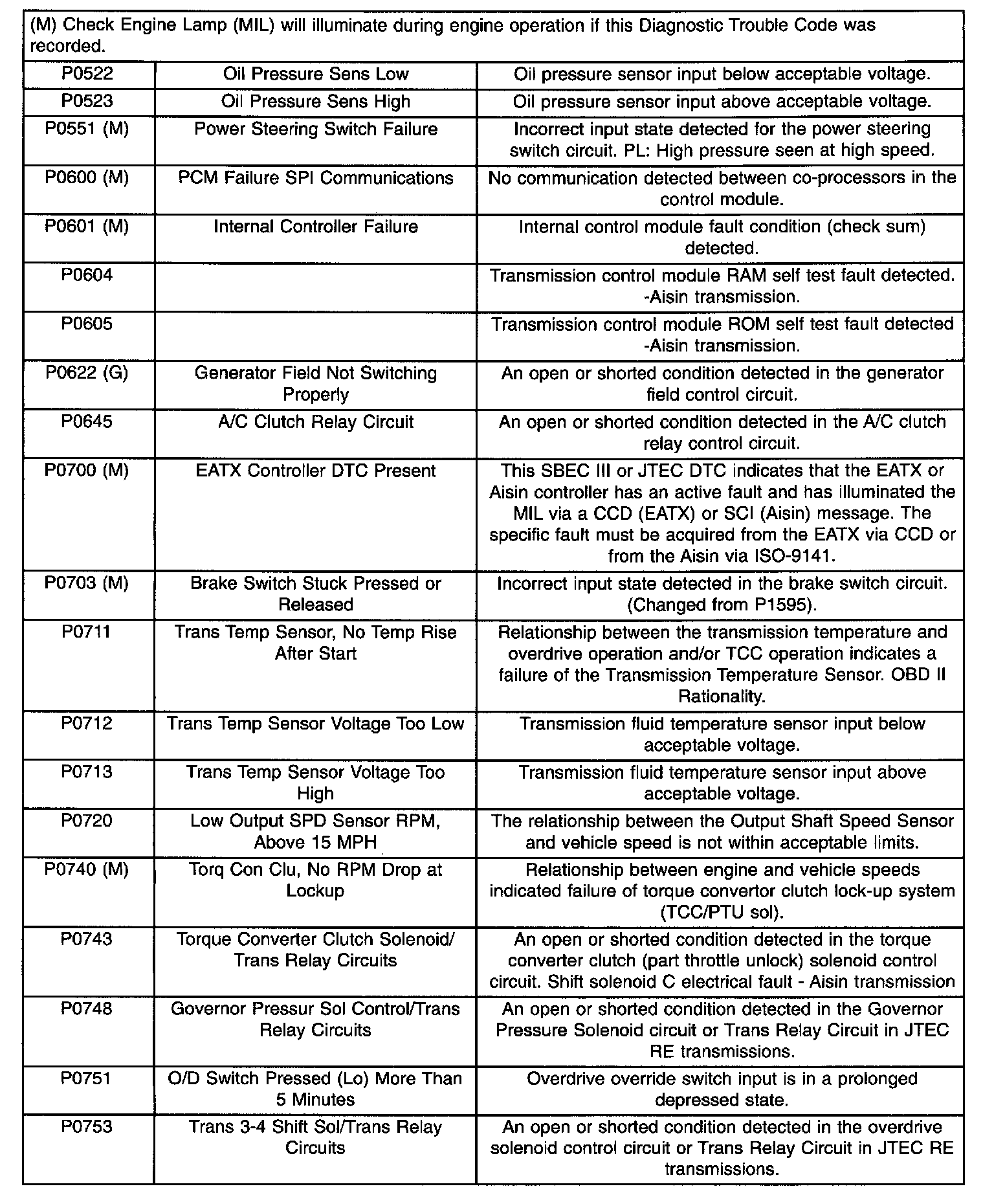

Diagnostic Trouble Code Descriptions (P0522 To P0753):

Diagnostic Trouble Code Descriptions (P0756 To P1388):

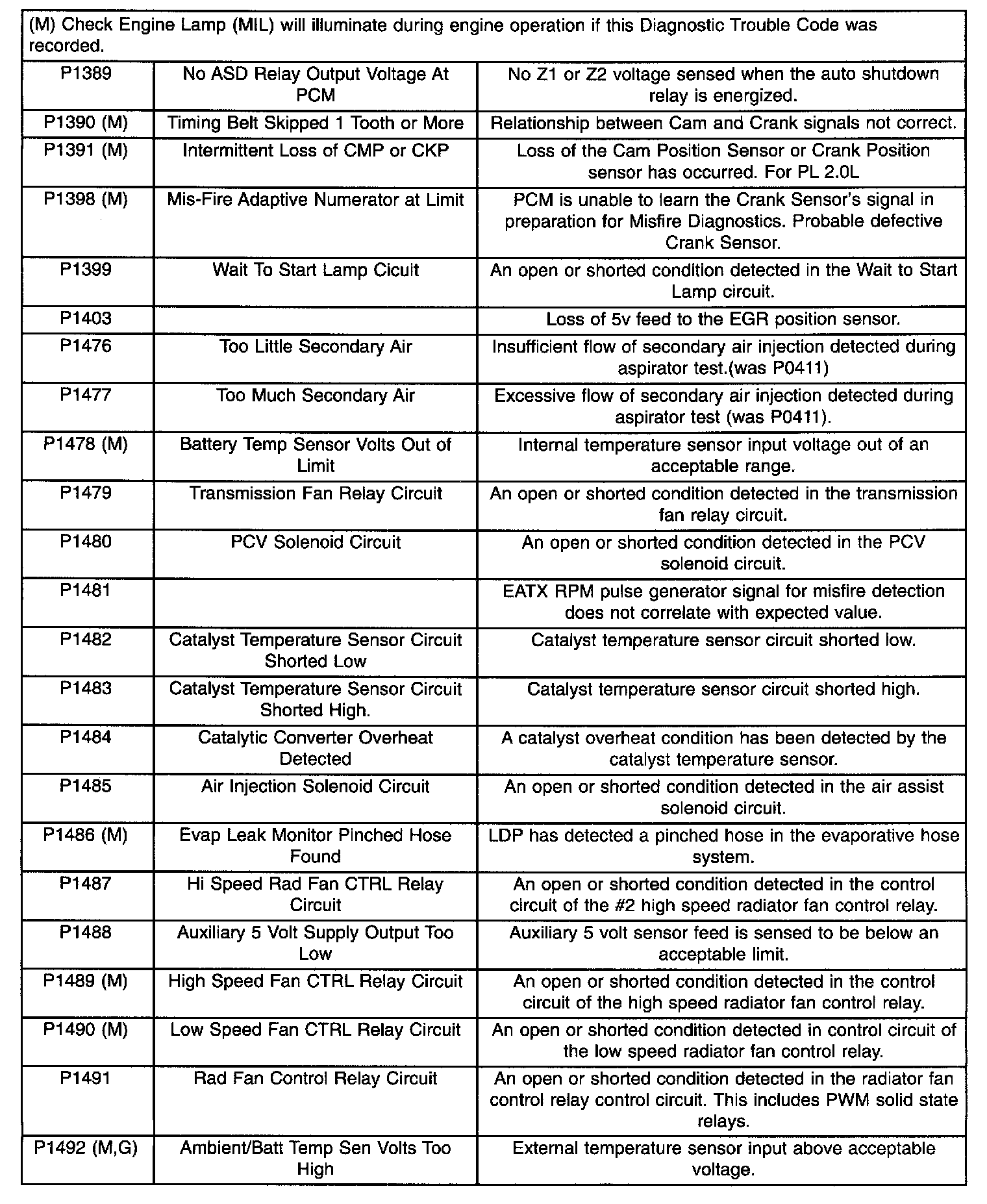

Diagnostic Trouble Code Descriptions (P1389 To P1492):

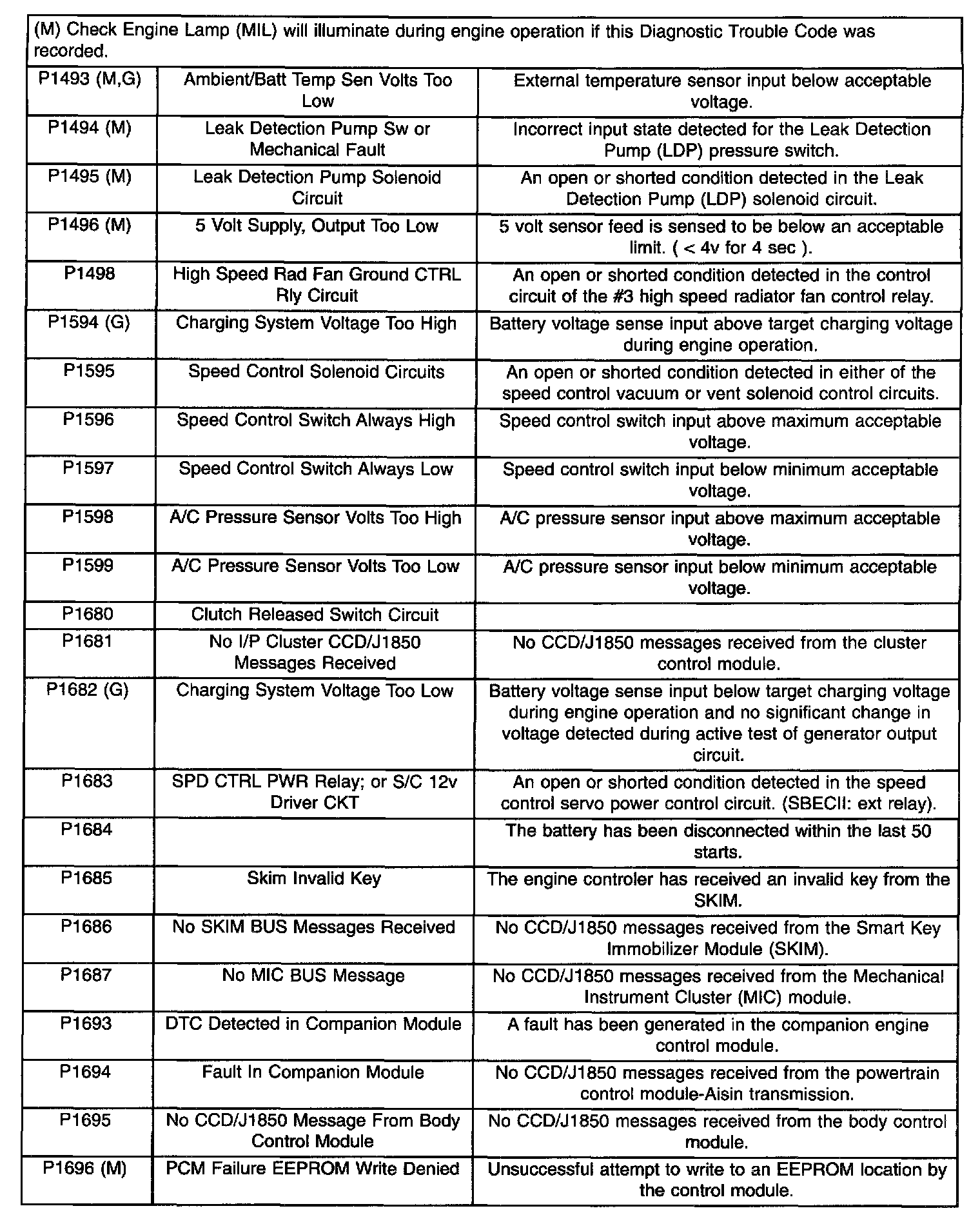

Diagnostic Trouble Code Descriptions (P1493 To P1696):

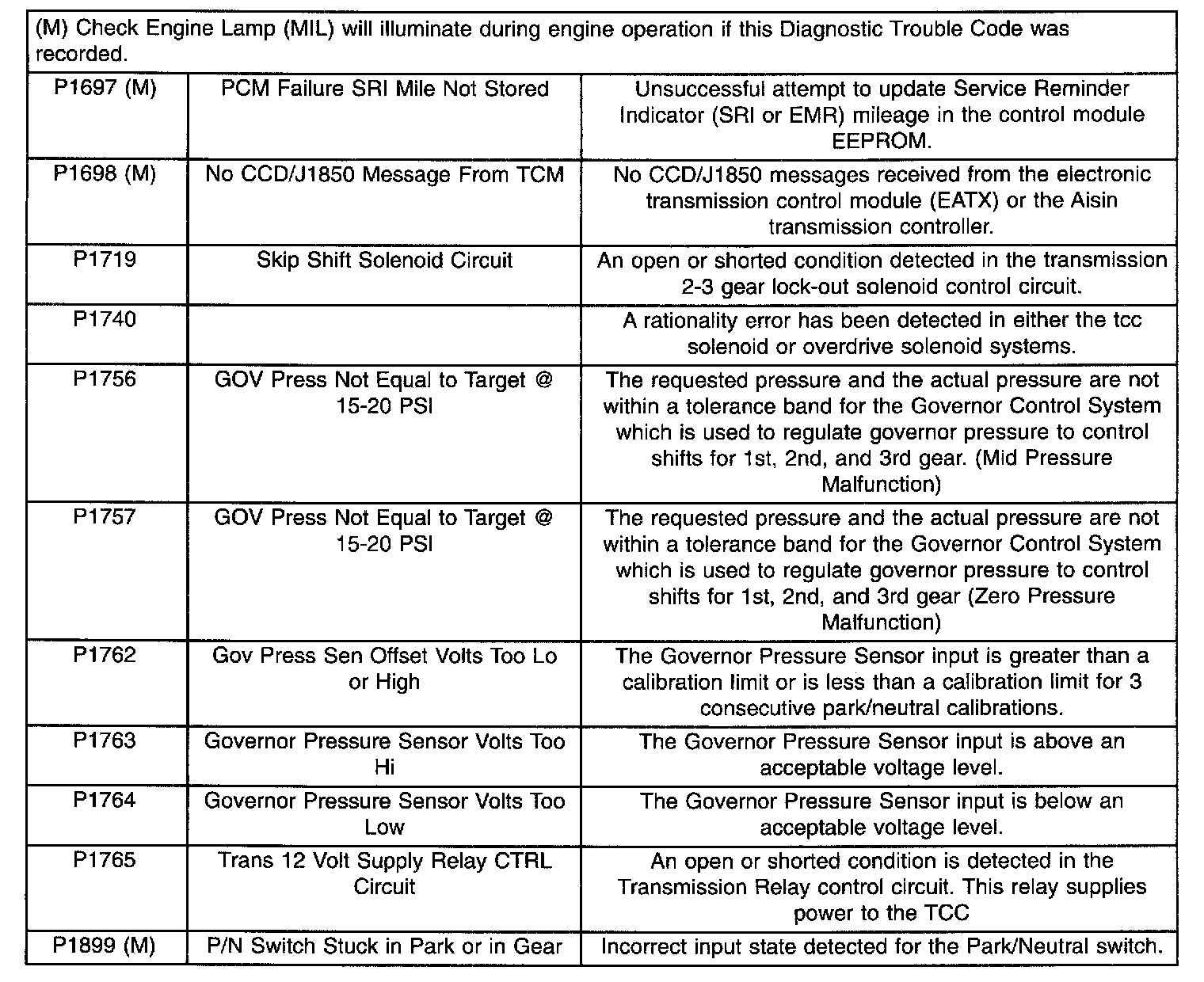

Diagnostic Trouble Code Descriptions (P1697 To P1899):

DIAGNOSTIC TROUBLE CODES
A Diagnostic Trouble Code (DTC) indicates the PCM has recognized an abnormal condition in the system.

Remember that DTC's are the results of a system or circuit failure, but do not directly identify the failed component or components.

NOTE: For a list of DTC's, refer to the charts.

Bulb Check
Each time the ignition key is turned to the ON position, the malfunction indicator (check engine) lamp on the instrument panel should illuminate for approximately 2 seconds then go out. This is done for a bulb check.

Obtaining DTC's Using DRB Scan Tool
1. Connect the DRB scan tool to the data link (diagnostic) connector. This connector is located in the passenger compartment; at the lower edge of instrument panel; near the steering column.
2. Turn the ignition switch on and access the "Read Fault" screen.
3. Record all the DTC's and "freeze frame" information shown on the DRB scan tool.
4. To erase DTC's, use the "Erase Trouble Code" data screen on the DRB scan tool. Do not erase any DTC's until problems have been investigated and repairs have been performed.
