Wiper Blade Element

REMOVAL
1. Lift wiper arm to raise blade off glass.

Wiper Blade And Element:

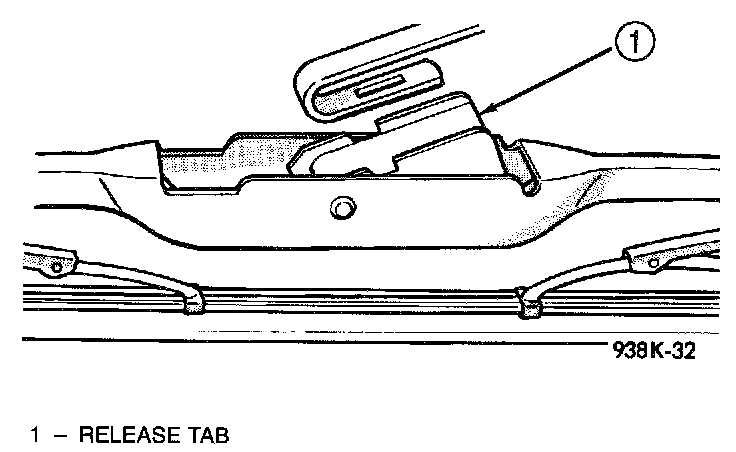

Remove Blade From Arm:

2. Remove blade assembly from arm by pushing release tab under arm tip and slide blade away from arm tip. Gently place wiper arm tip on glass surface.

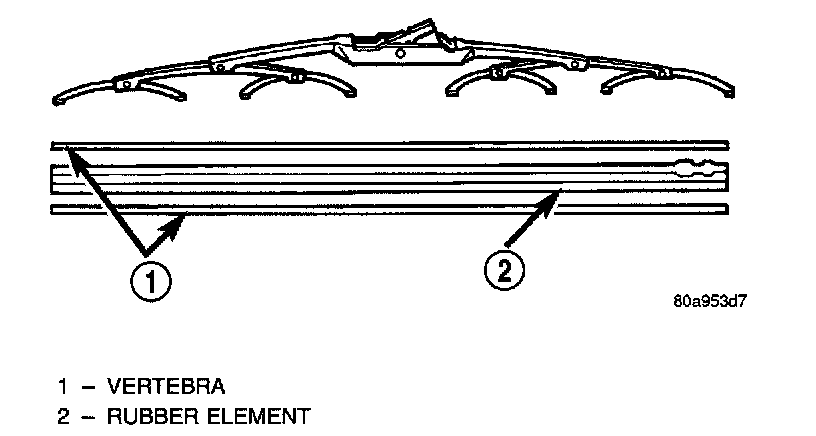

Windshield Wiper Blade Element:

3. Remove wiping element from blade assembly. Pull stopper, of the rubber element, out of the end claw together with vertebra (metal rails).

INSTALLATION
- For installation reverse the above procedures. Check that the element and vertebra are through all claws and the final claw is locked in the stopper.
