Windshield Washer Spray Nozzle: Service and Repair

REMOVAL
1. Disconnect washer fluid hose at the nozzle.

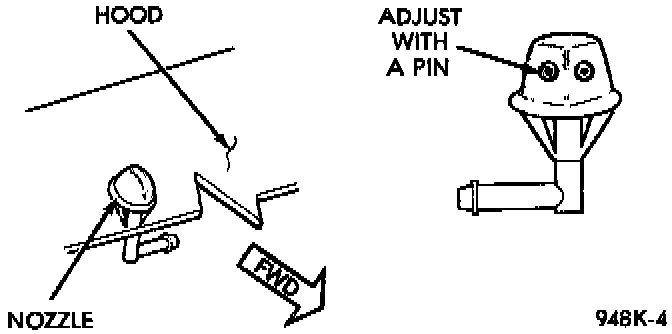

Windshield Washer Nozzle:

2. Using a needle nose pliers, squeeze together the locking tabs on the nozzle.
3. Remove nozzle.

INSTALLATION
1. Place the nozzle in position and push downward till locking tabs are securely snapped into position.
2. Connect the washer hose and ensure that the hose is not kinked.
