Windshield Washer Reservoir: Service and Repair

REMOVAL

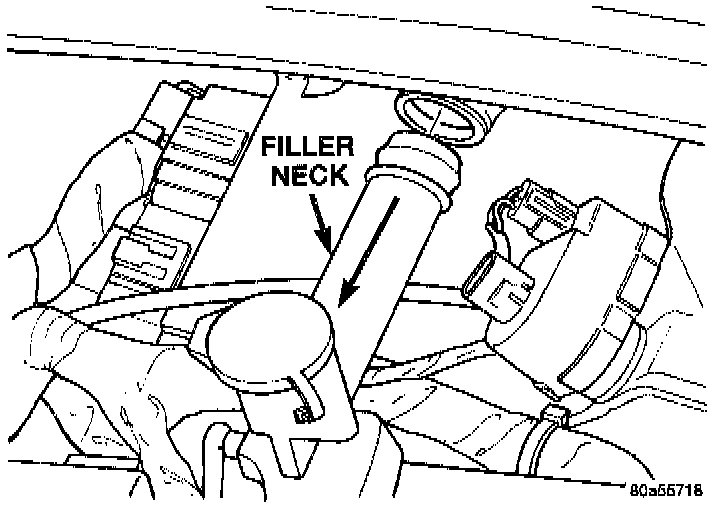

Filler Neck Removal:

1. Remove filler neck.
2. Raise vehicle on hoist.

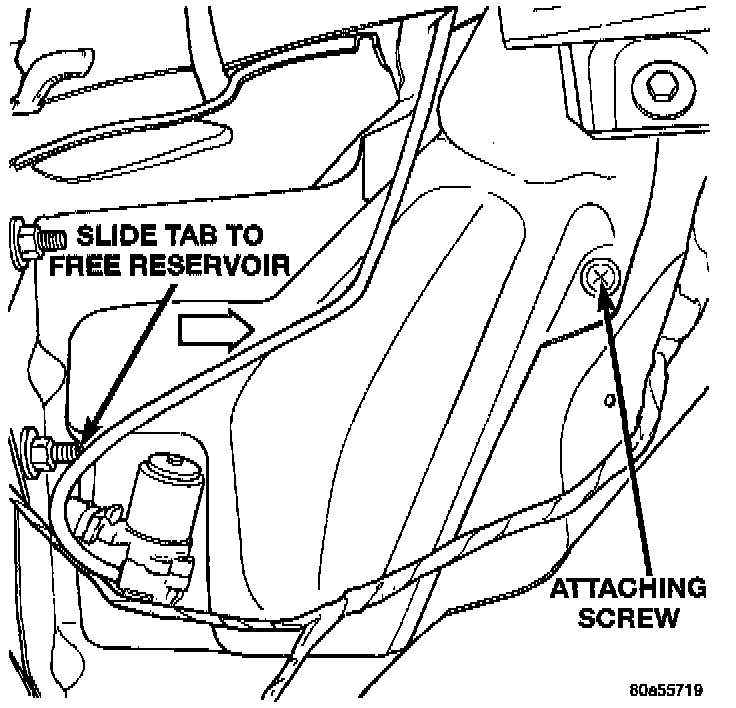

Reservoir Removal:

3. Disconnect the wire connector from the reservoir pump.
4. Disconnect the washer hose at the pump and drain the reservoir.
5. Remove fastener from reservoir.
6. Remove the reservoir through fender opening.

INSTALLATION
For installation, reverse the above procedures. Tighten the reservoir screw to 2.2 to 3.3 N.m (20 to 29 in. lbs.) torque.
