Windshield Washer Pump: Service and Repair

REMOVAL
1. Raise vehicle on hoist.
2. Disconnect the wire connector from the reservoir pump.
3. Disconnect the washer hose at the pump and drain the reservoir.

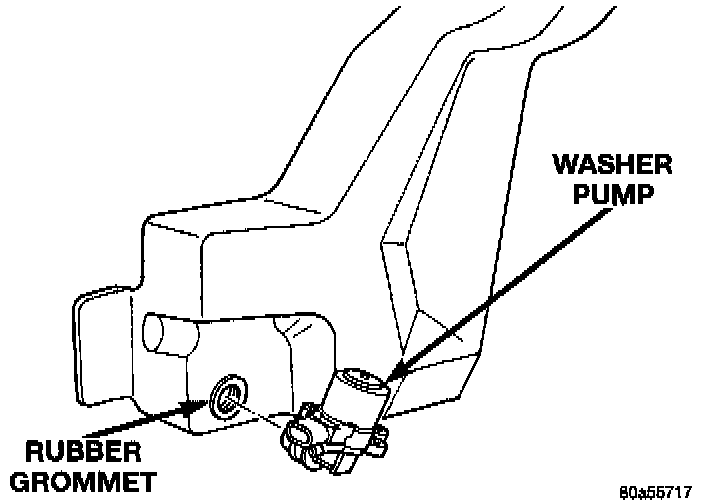

Washer Pump:

4. Gently pry pump away from reservoir and out of grommet. Care must be taken not to puncture reservoir.
5. Remover rubber grommet from reservoir and throw away.

INSTALLATION
For installation, reverse the above procedures.
