Windshield Washers Test

All models are equipped with electric operated windshield washer pumps.

The wash function can be accessed in the OFF position of the wiper control switch. Holding the wash button depressed when the switch is in the OFF position will operate the wipers and washer motor pump continuously until the washer button is released. Releasing the button will stop the washer pump but the wipers will complete the current wipe cycle. Followed by an average of two more wipe cycles (± 1) before the wipers park and the module turns off.

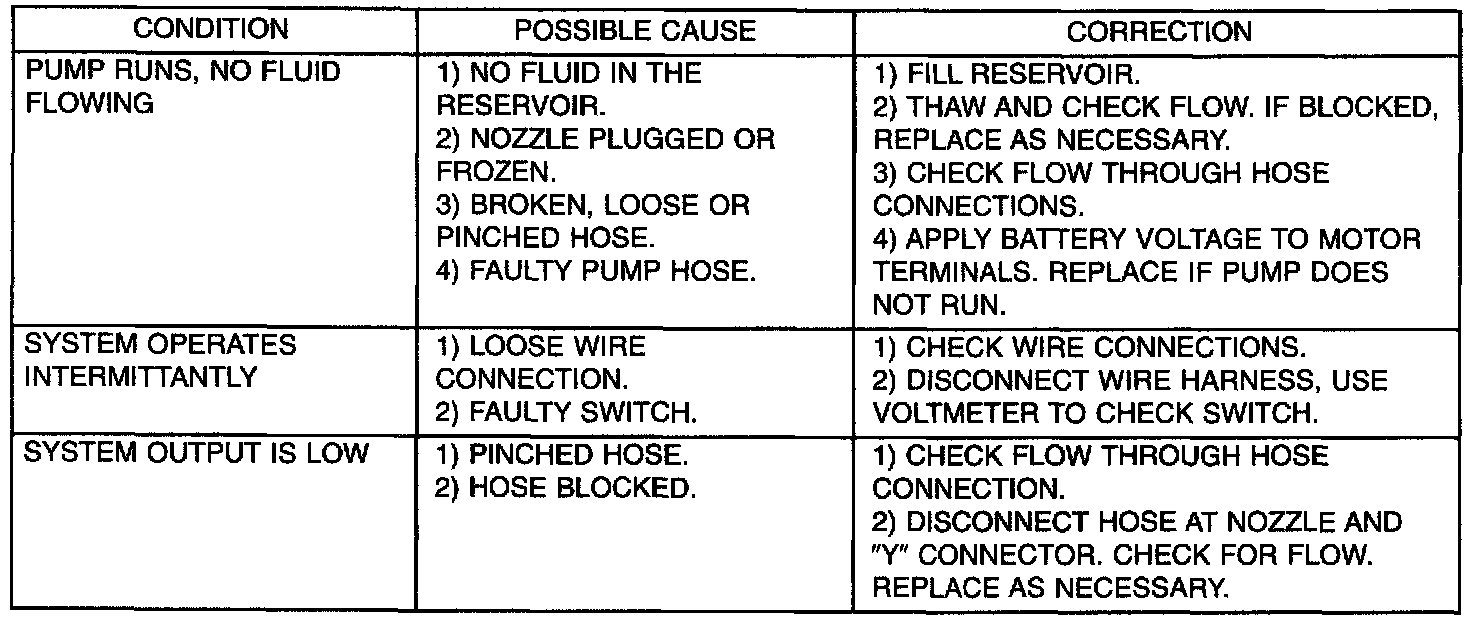

Windshield Washer Test Table:

Whenever a windshield washer malfunction occurs, first verify that the windshield washer wire harness is properly connected to all connectors before starting normal diagnosis and repair procedures. Refer to Windshield Washer Test Table.

The electric pump assembly is mounted directly to the reservoir. A permanently lubricated motor is coupled to a rotor type pump. Fluid, gravity fed from the reservoir, is forced by the pump through rubber hoses to the hood mounted nozzles which direct the fluid streams to the windshield.

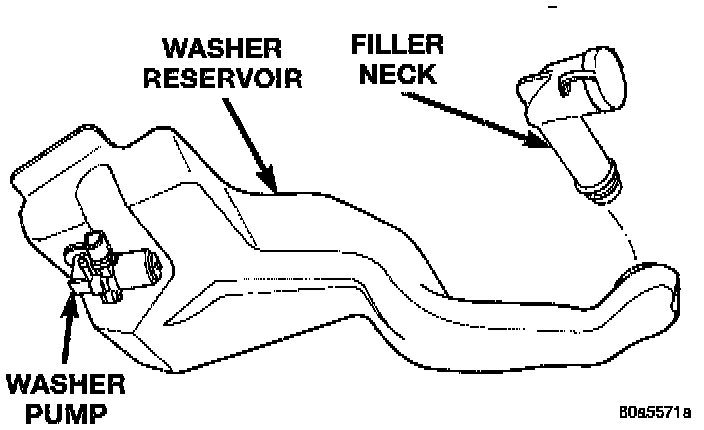

Washer Fluid Reservoir:

The pump and reservoir are serviced as separate assemblies.
