Rear Door Window Regulator - 4 Door

NOTE: Power and manual door glass regulators are serviced using the same procedures. For power window motor service procedures, refer to Power Windows.

REMOVAL
1. Remove door trim panel and water dam.
2. Remove door glass.
3. Disconnect wire connector to power window motor, if so equipped.
4. Remove nuts attaching top of regulator to inner door panel.

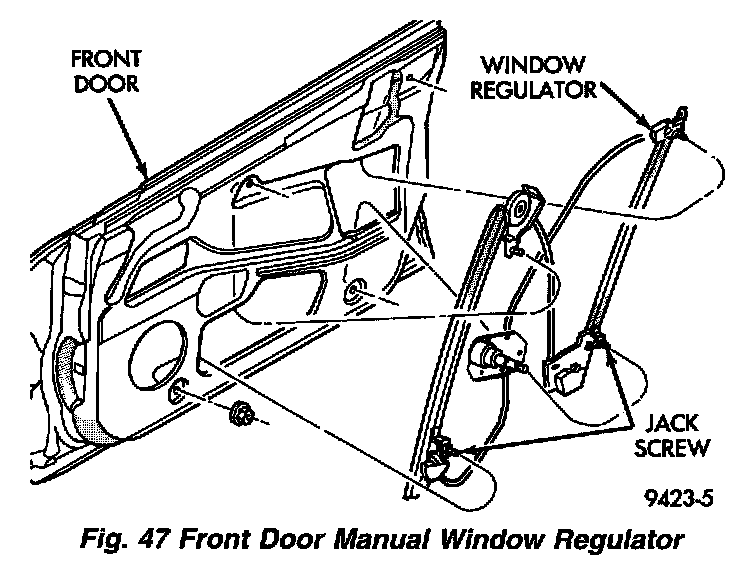

Front Door Manual Window Regulator:

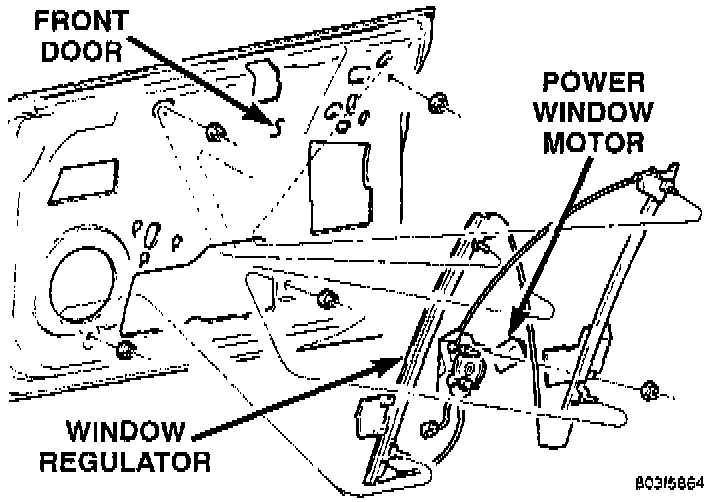

Front Door Power Window Regulator:

5. Remove nuts attaching bottom of regulator to door panel.
6. Loosen bolts attaching regulator crank/motor to door panel.
7. Disengage bolts from keyhole slots in door panel.
8. Remove window regulator from access hole in door panel.
9. Remove power window motor from regulator, if so equipped.

INSTALLATION
1. Install power window motor on regulator, if so equipped.
2. Move window regulator into position in door and engage bolt heads in keyhole slots in inner door panel.
3. Tighten bolts attaching regulator crank/motor to door panel.
4. Install nuts attaching top and bottom of window regulator to door panel.
5. Install door glass. Refer to procedures to verify and adjust glass alignment.
6. Connect wire connector to power window motor, if so equipped.
7. Install door speaker, if so equipped.
8. Install door trim panel and water dam.
