Rear Door Window Regulator - 2 Door

NOTE: Power and manual door glass regulators are serviced using the same procedures. For power window motor service procedures, refer to Power Windows.

REMOVAL
1. Remove door trim panel and water dam.
2. Disconnect wire connector to power window motor, if so equipped.

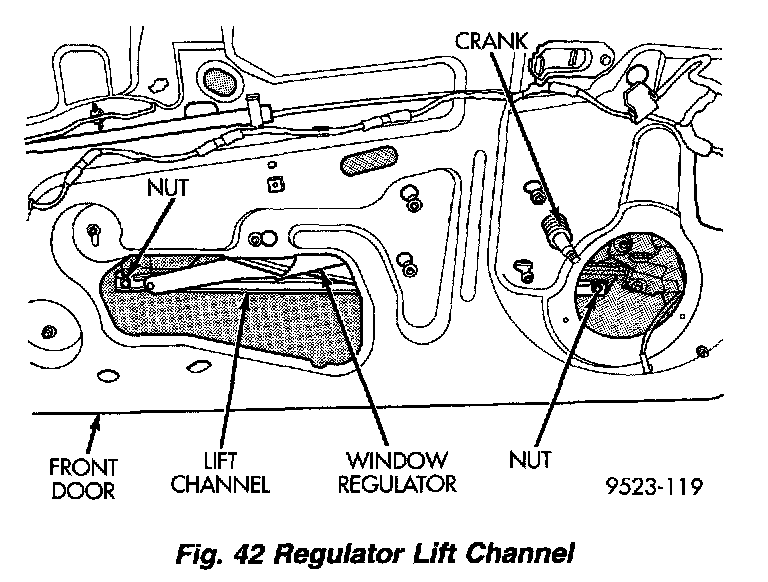

Regulator Lift Channel:

3. Remove nuts attaching regulator lift channel to door glass.
4. Secure door glass in upward position.
5. Mark position of rear bolt of roller channel to inner door panel to aid in installation.
6. Remove bolt attaching rear of roller channel to door panel.
7. Loosen bolt attaching front of roller channel to door panel.

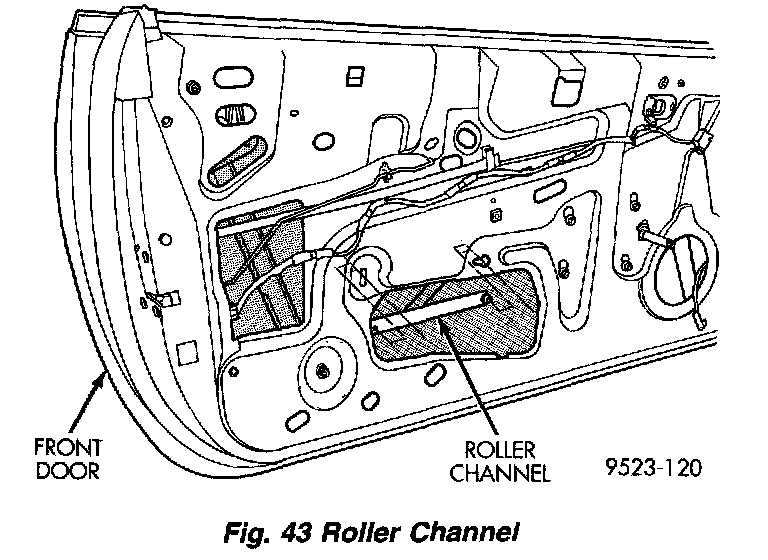

Roller Channel:

8. Remove roller channel from door panel.
9. Loosen bolts attaching window regulator to inner door panel.
10. Remove bolt heads from key hole slots in inner door panel.

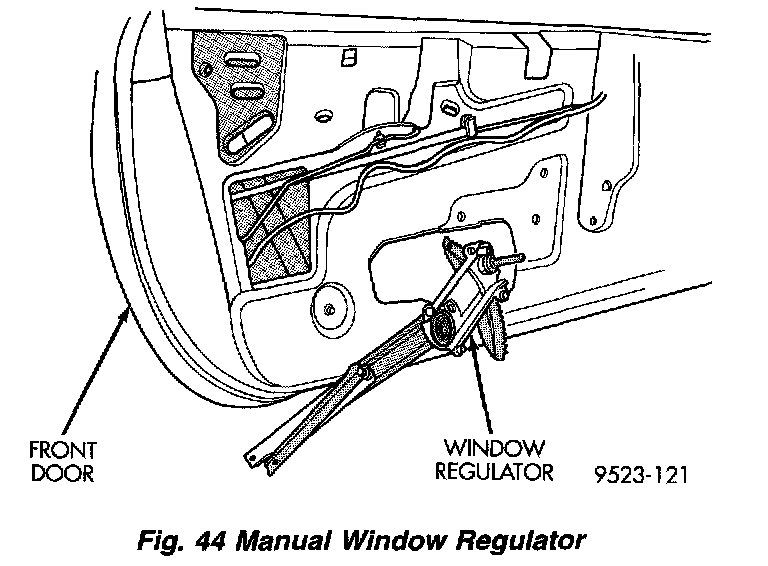

Manual Window Regulator:

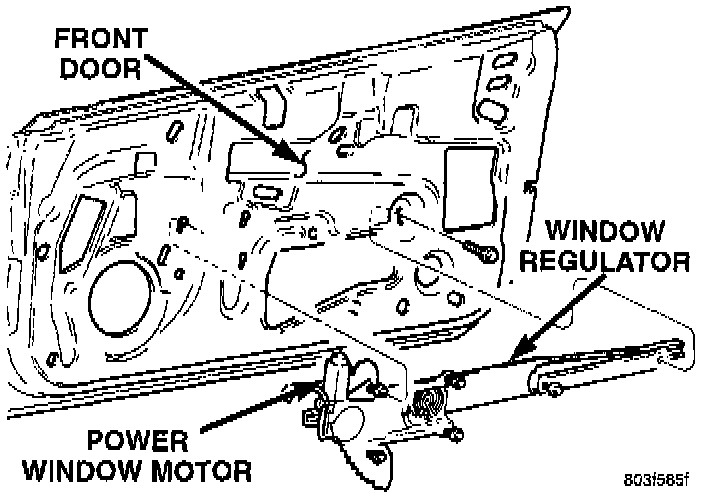

Power Window Regulator:

11. Remove window regulator through large hole in inner door panel.
12. Remove power window motor from regulator, if so equipped. Refer to Power Window Motor procedure.

INSTALLATION
1. Install power window motor on regulator, if so equipped. Refer to Power Window Motor procedures.
2. Move window regulator into position in door and engage bolt heads into key hole slots in inner door panel and tighten bolts.
3. Install roller channel to door panel.
4. Install bolt at rear of roller channel. Make sure that bolt is aligned to mark on inner door panel made previously.
5. Tighten front and rear bolts of roller channel.
6. Install nuts attaching regulator lift channel to door glass.
7. Adjust door glass as described.
8. Connect wire connector to power window motor, if so equipped.
9. Install door speaker, if so equipped.
10. Install door trim panel and water dam.
