Heated Glass Element: Description and Operation

INTRODUCTION

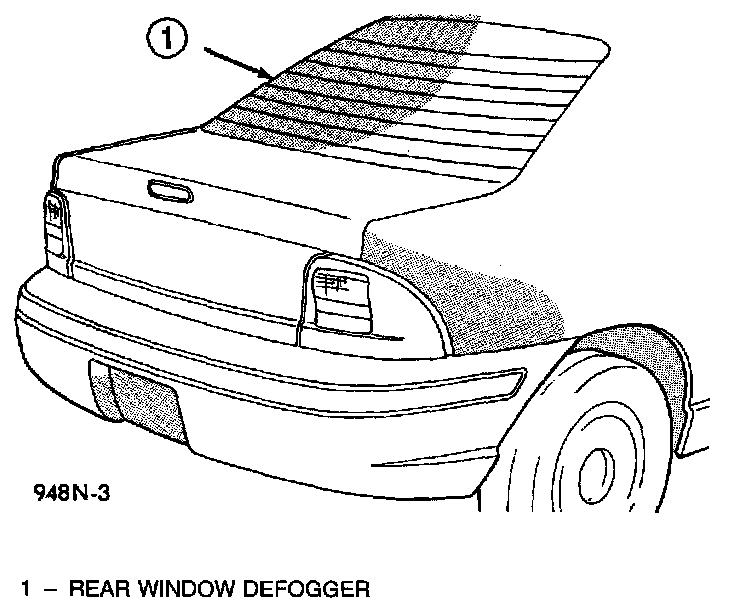

Rear Window Defogger - Typical:

The system consists of a rear glass with two vertical bus bars and a series of electrically connected grid lines fired on the inside surface. A control switch and a timer relay combined into a single assembly is used on all models.

Circuit protection is provided by a maxi fuse located in the Power Distribution Center, for the heated grid circuit and by a fuse for the relay control circuit.

When the switch is turned to the ON position, current is directed to the rear defogger grid lines. The heated grid lines heat the rear glass to clear the surface of fog or frost.

CAUTION: Grid lines can be damaged or scraped off with sharp instruments, care should be taken in cleaning glass or removing foreign materials, decals or stickers. Normal glass cleaning solvents or hot water used with rags or toweling is recommended.
