Crossover Lever

REMOVAL
1. Remove crossover cable. Refer to Gearshift Cable removal.
2. Using a pin punch, remove the crossover roll pin from lever.

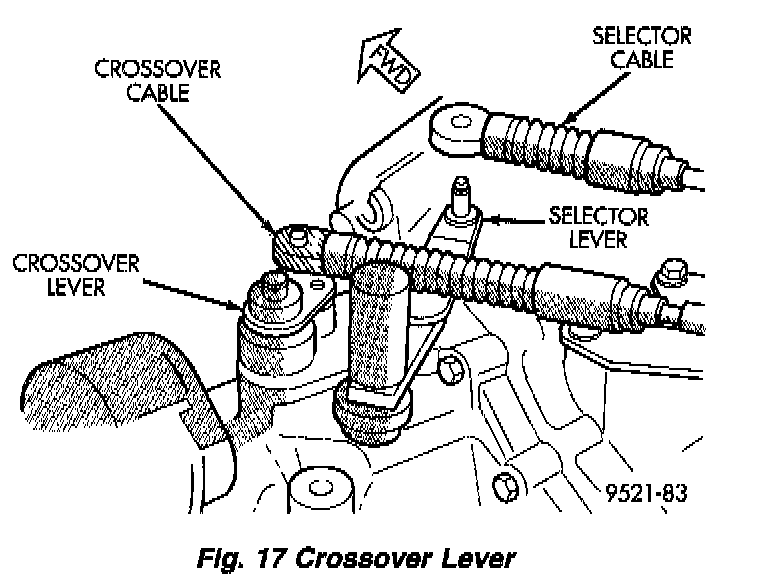

Fig. 17:

3. Pull up and remove the crossover lever from the transaxle crossover shaft.

INSTALLATION
1. For installation, reverse removal procedure. Replace the roll pin that was removed with a new one.
