Home >> Dodge >> 1999 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

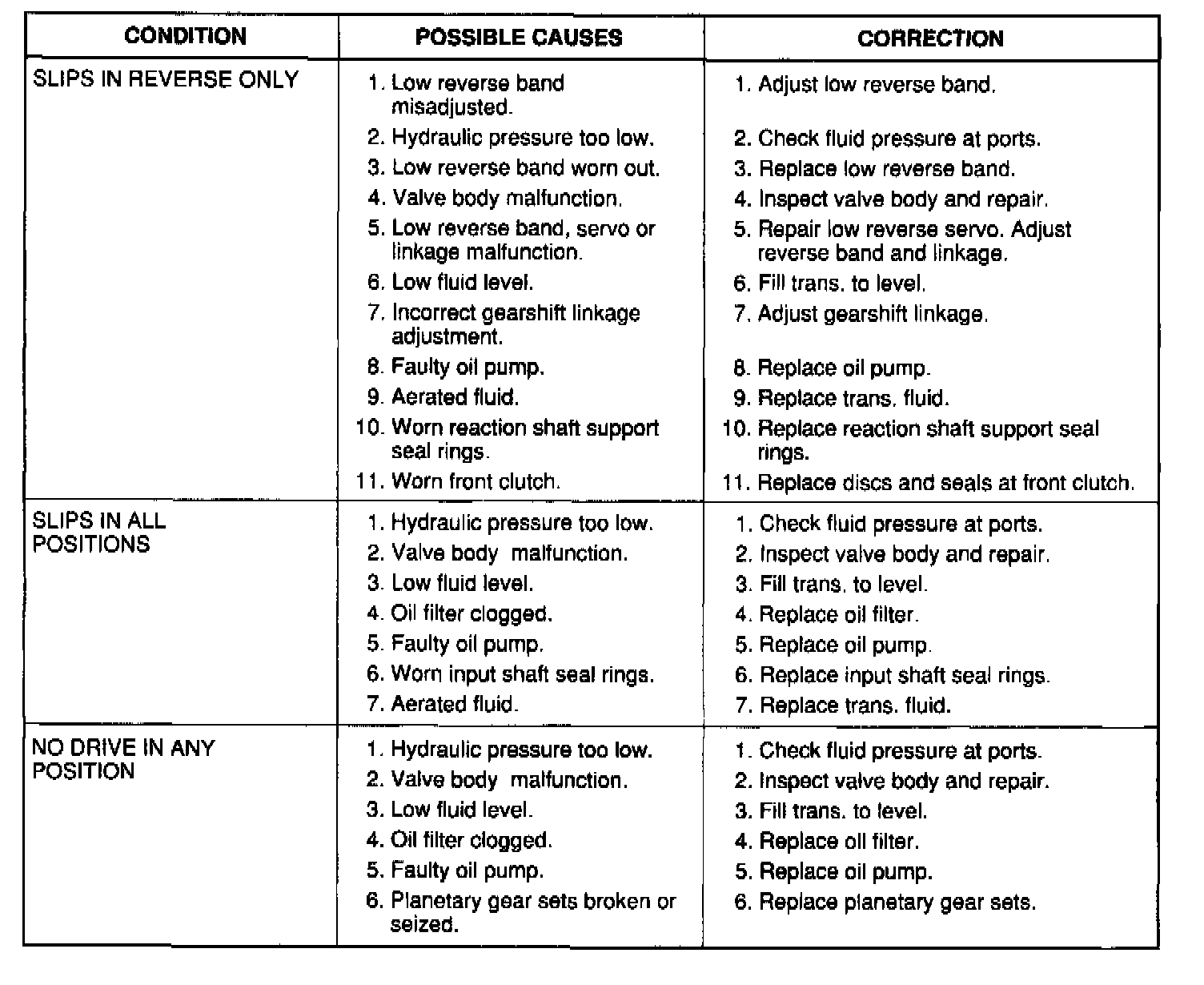

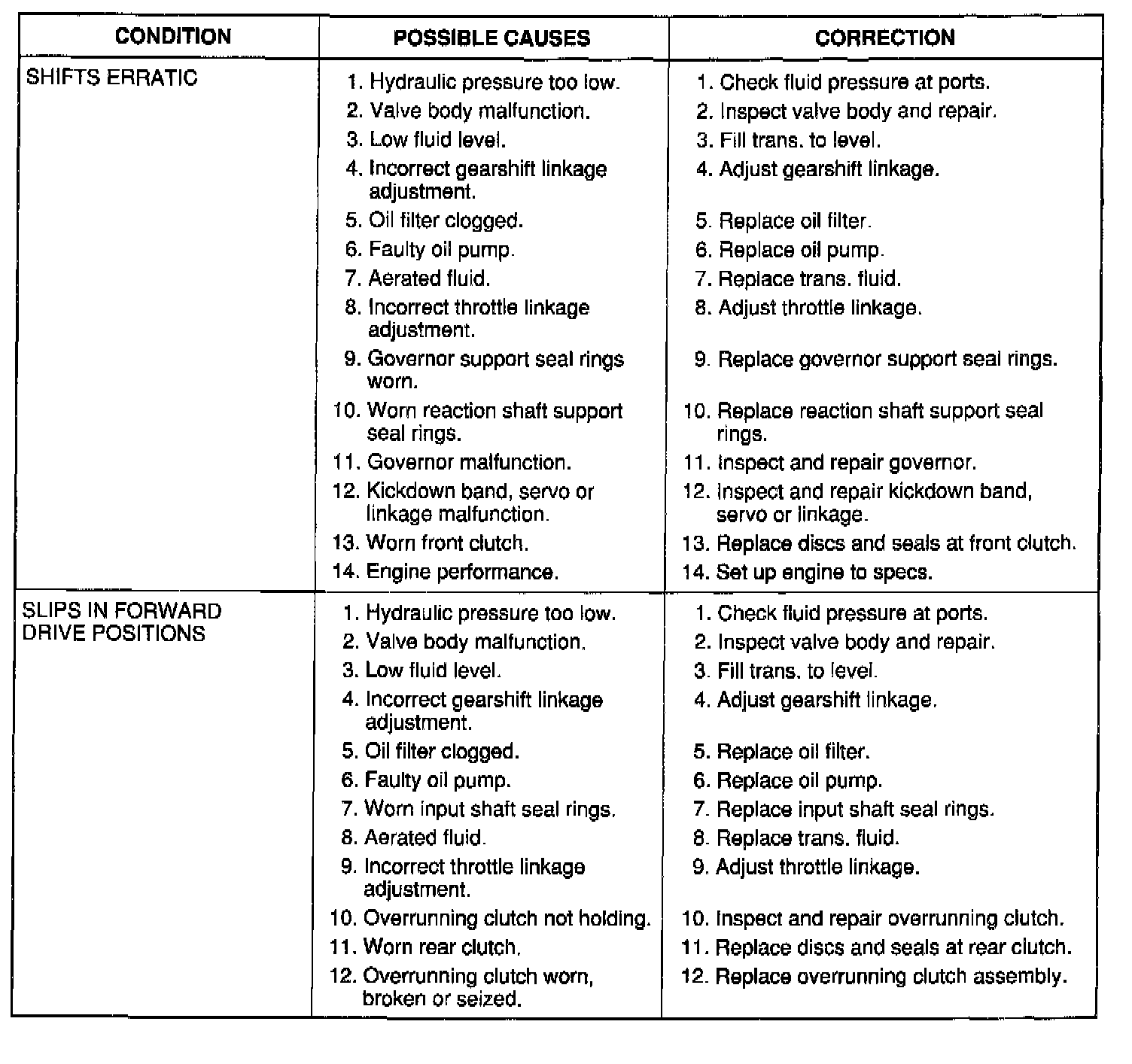

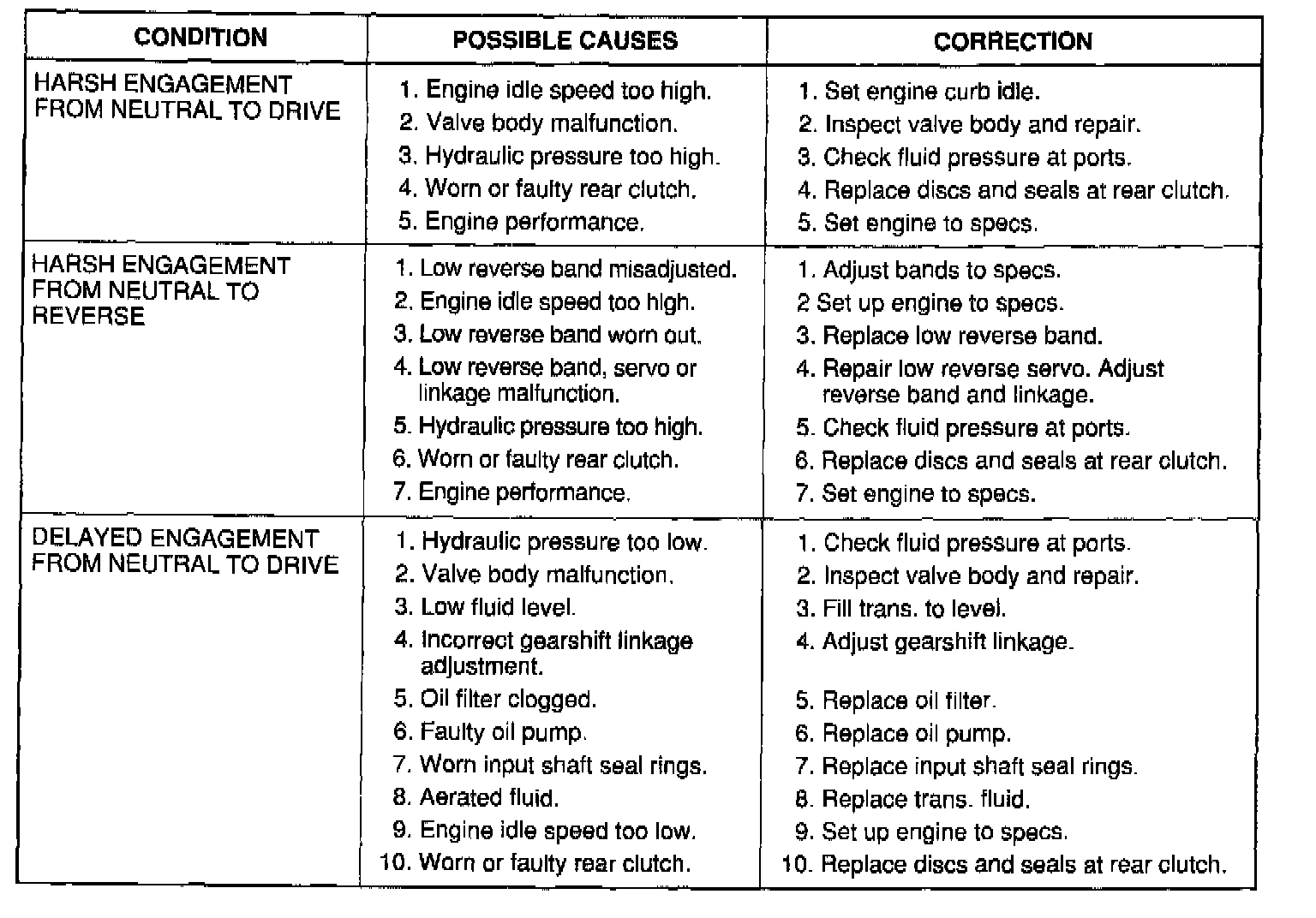

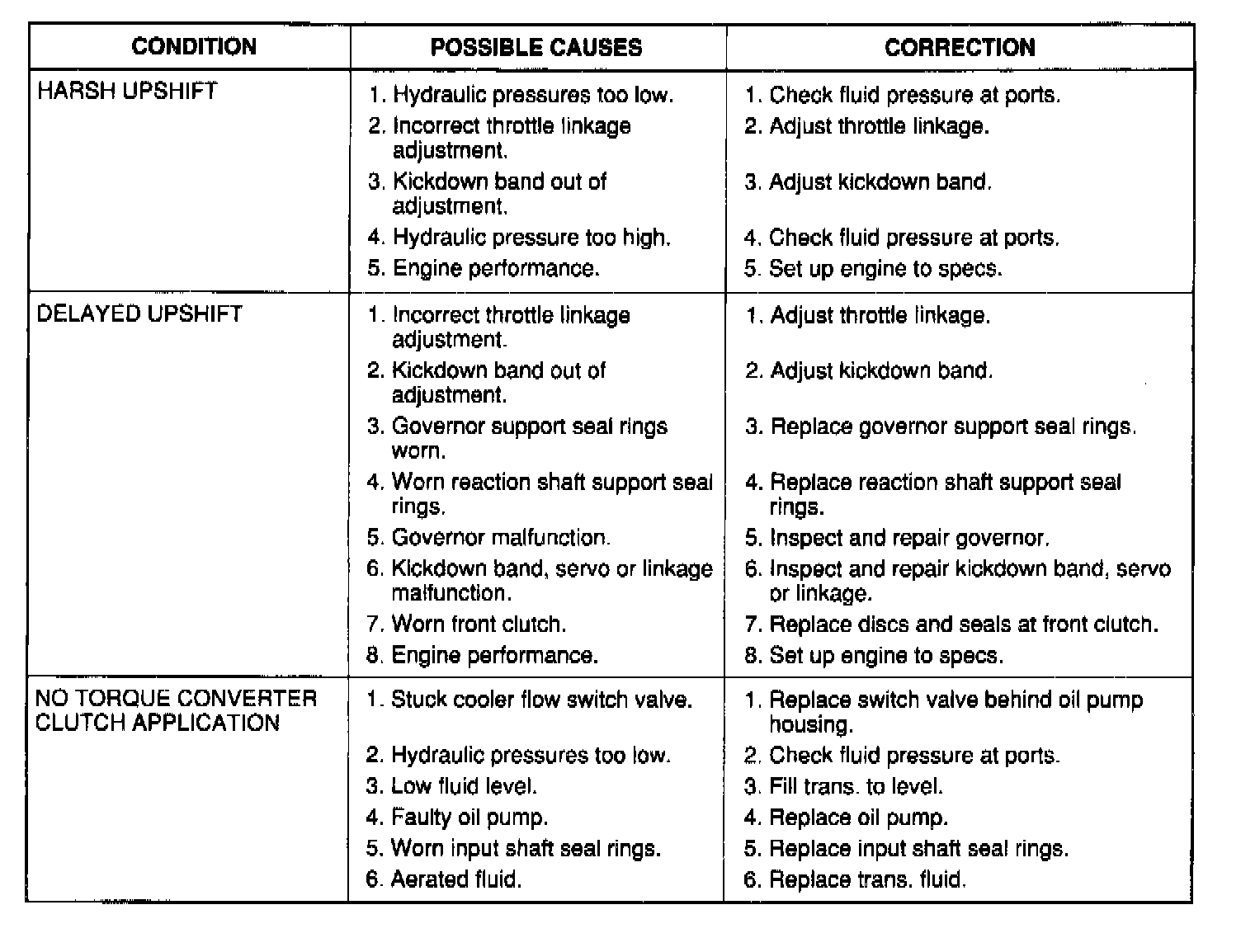

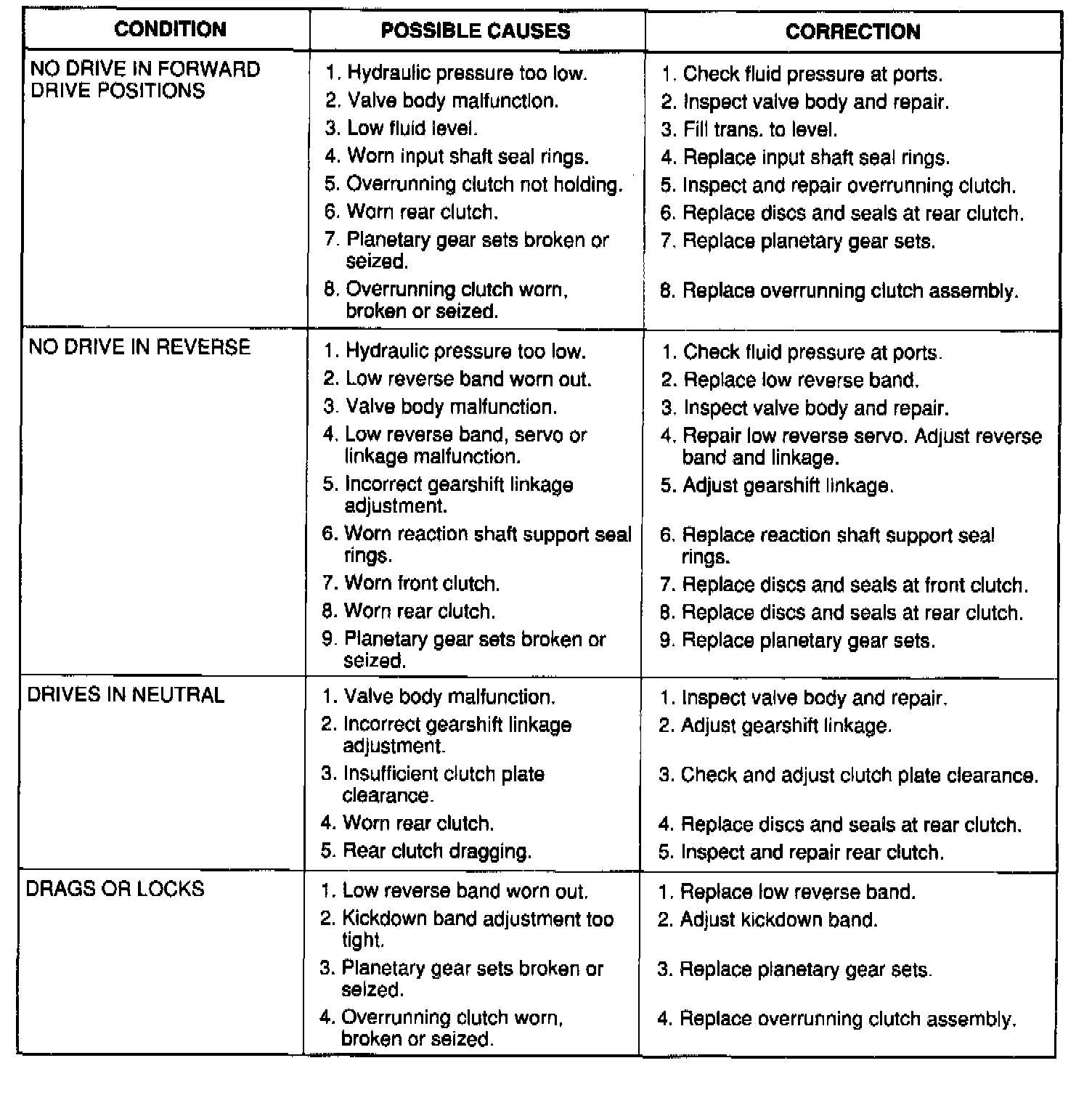

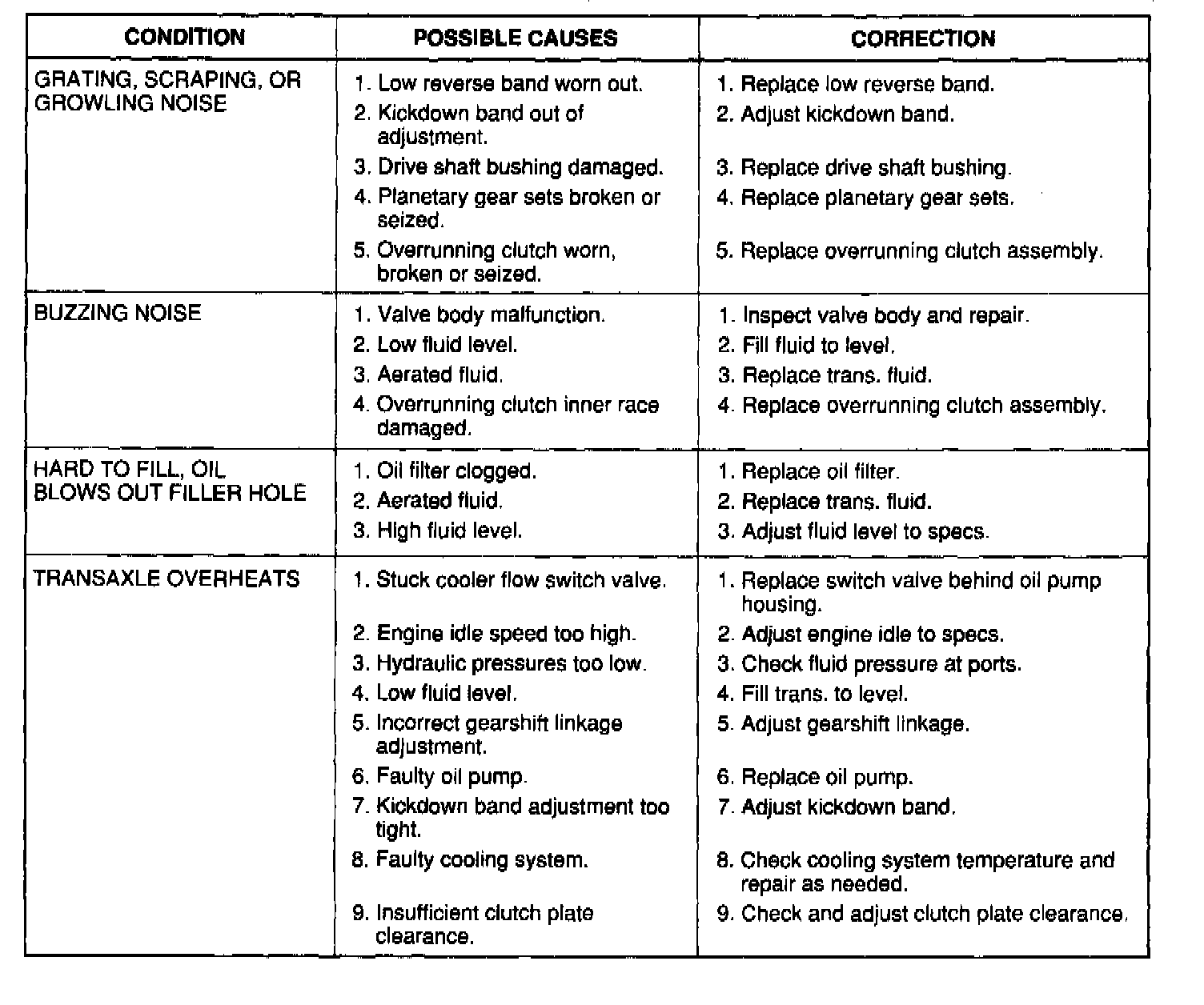

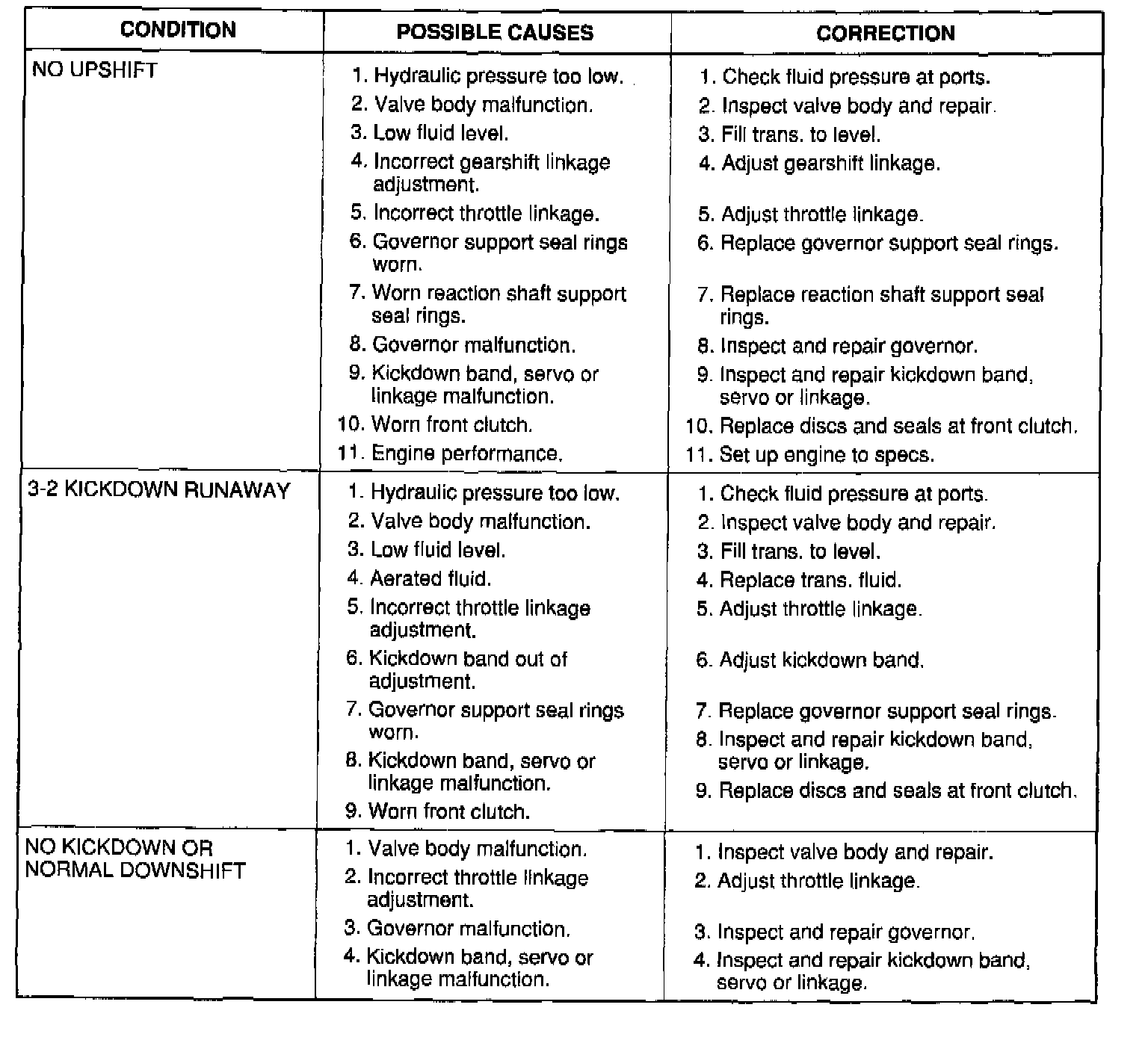

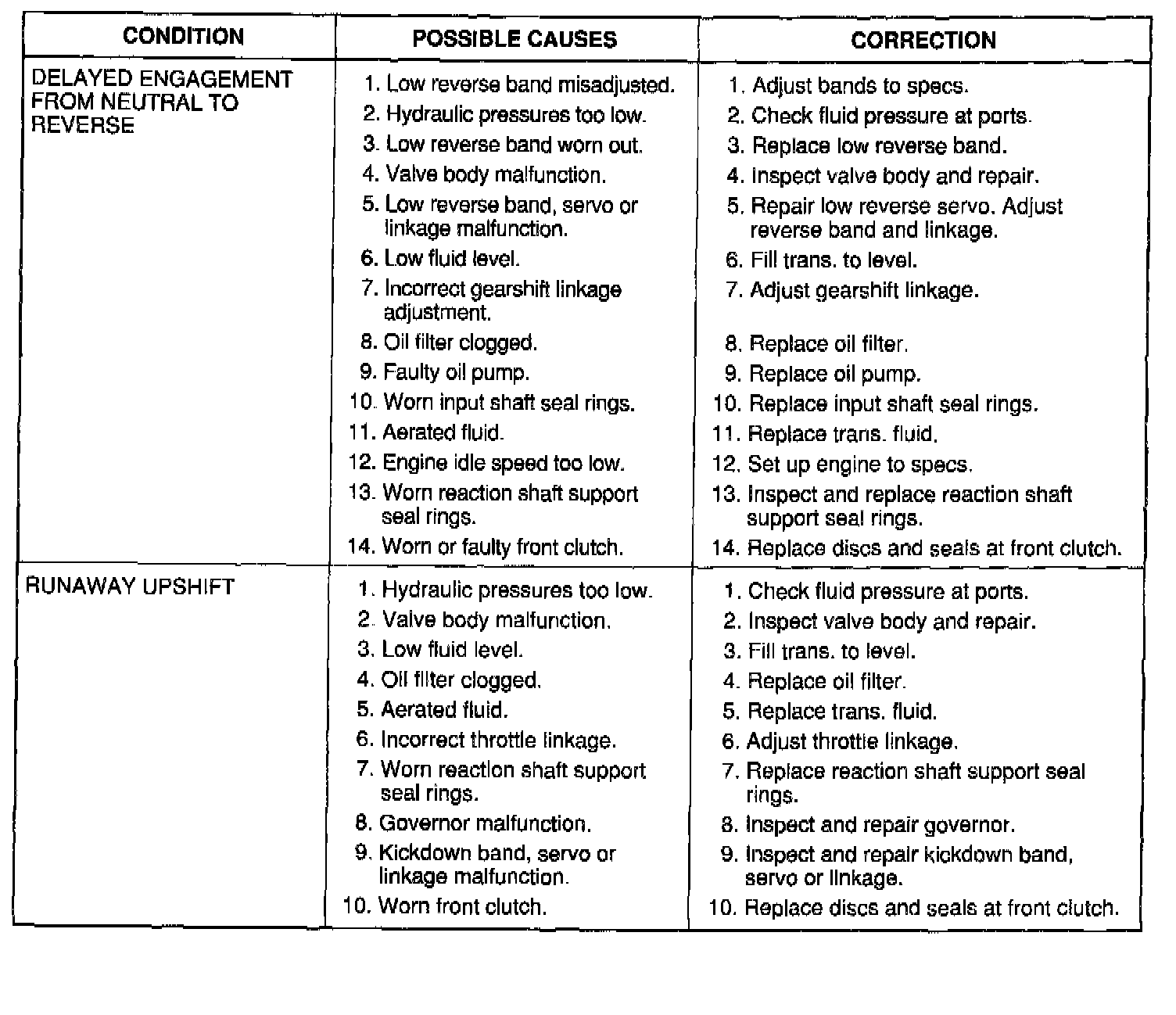

The charts should be used to help diagnose hydraulic or mechanical faults in the transaxle.
