Shift Interlock: Service and Repair

REMOVAL
1. Remove the lower column covers, ignition switch, and shrouds. Refer to Interlock Cable Replacement.

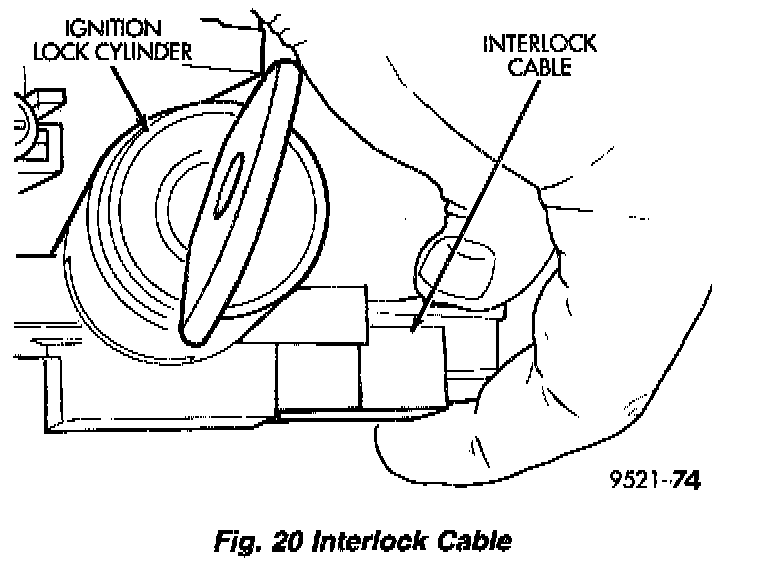

Fig. 20:

2. Grasp the interlock cable and connector firmly. Remove the interlock cable (Fig. 20).

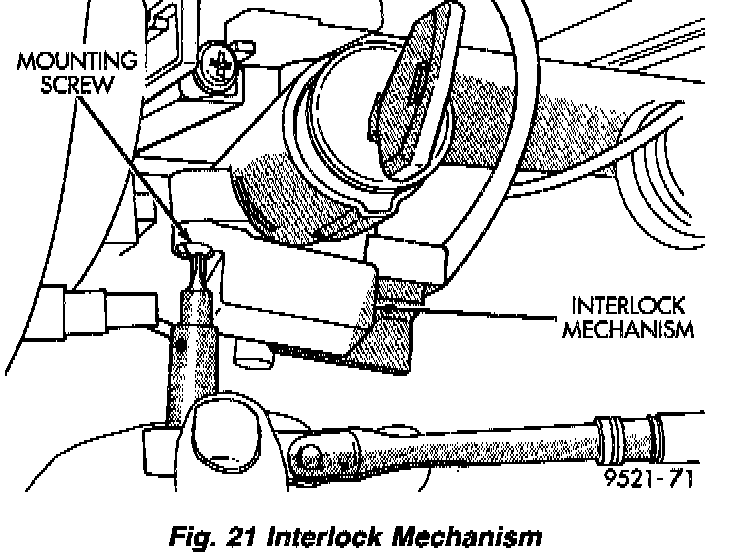

Fig. 21:

3. Remove the two interlock mechanism-to-steering column attaching screws (Fig. 21). Remove the interlock housing.

INSTALLATION
1. Position the interlock housing at steering column. Install the two interlock mechanism-to-steering column attaching screws. Torque screws to 3 Nm (21 inch lbs.).
2. Snap the interlock cable into the housing.
3. Install the lower column covers, shrouds, and ignition switch. Refer to Interlock Cable Replacement.
