Valve Body Recondition

VALVE BODY RECONDITION

Fig. 69:

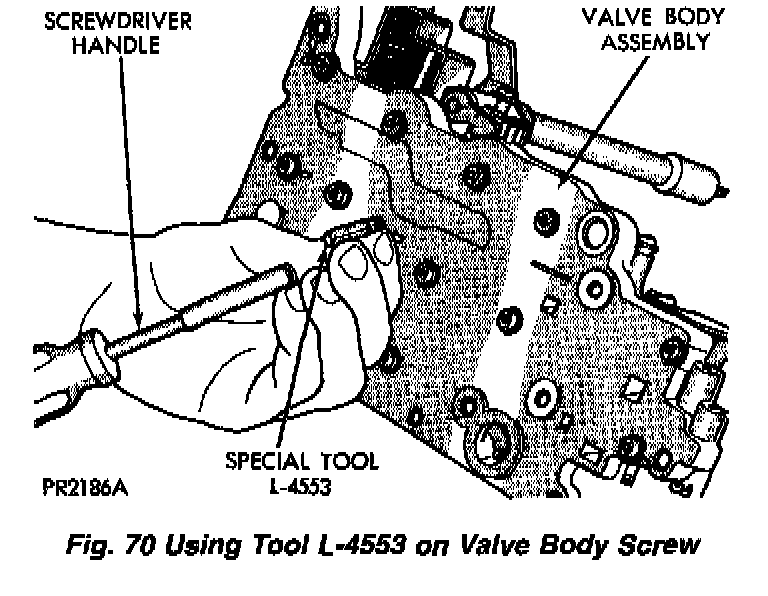

Fig. 70:

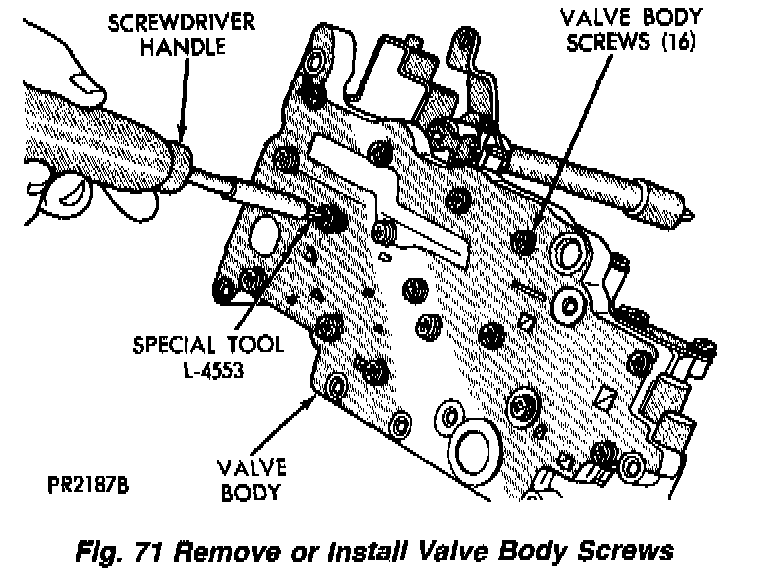

Fig. 71:

Fig. 72:

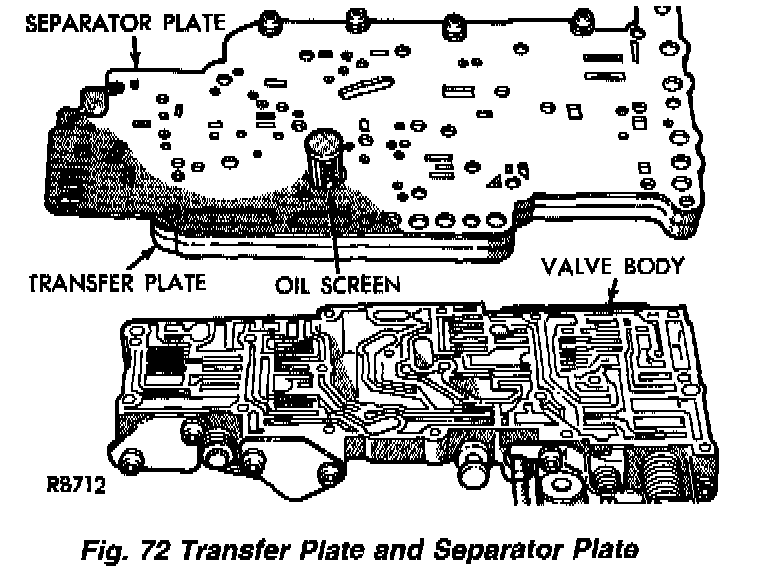

Fig. 73:

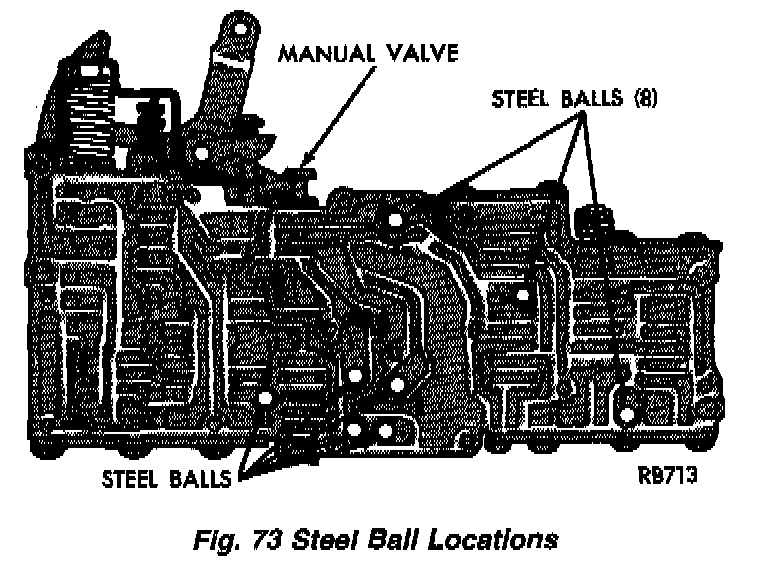

Fig. 74:

Fig. 75:

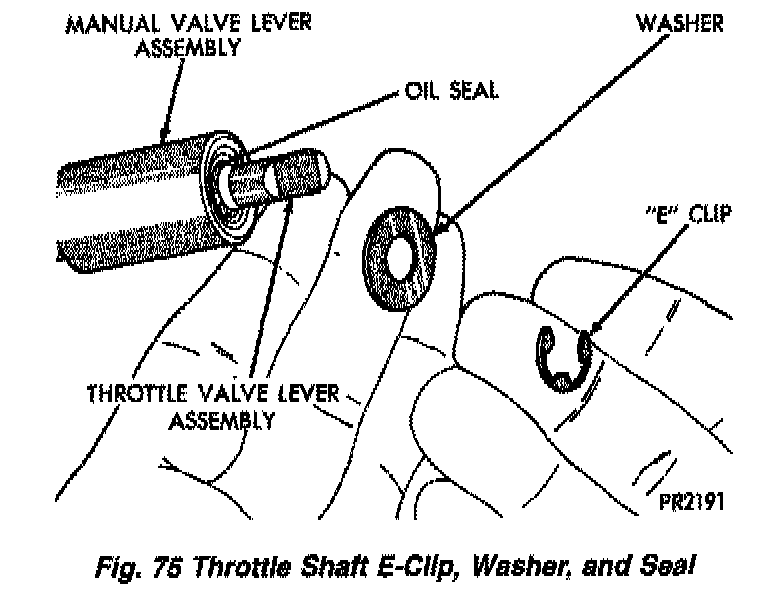

Fig. 76:

Fig. 77:

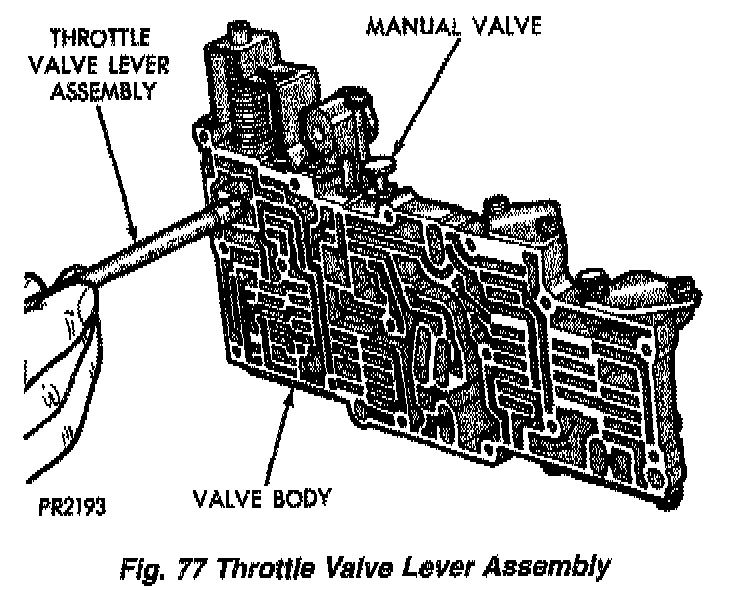

Fig. 78:

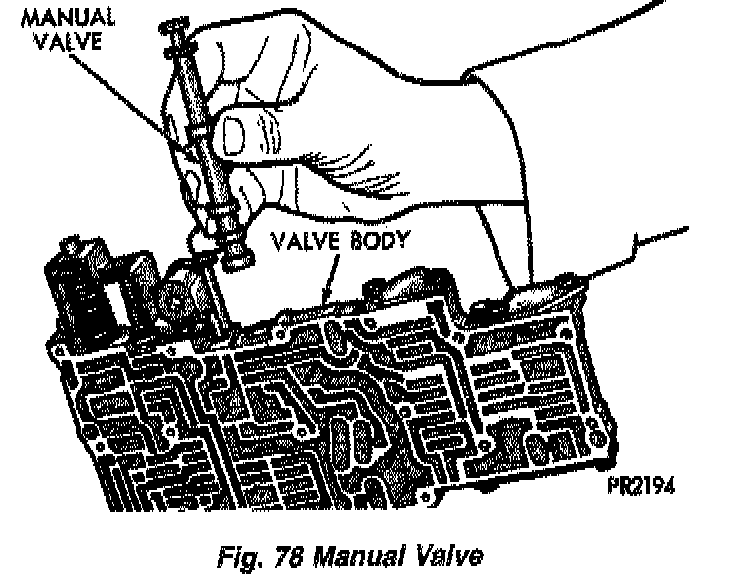

Fig. 79:

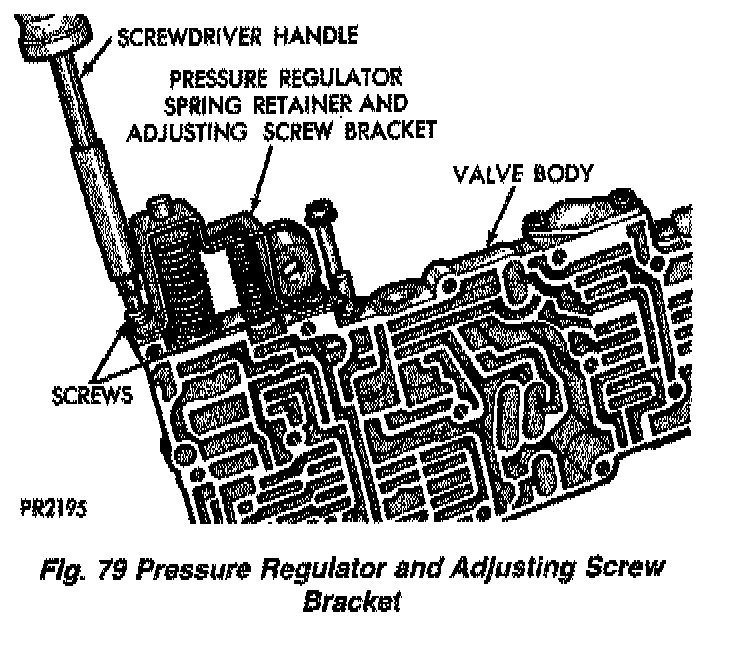

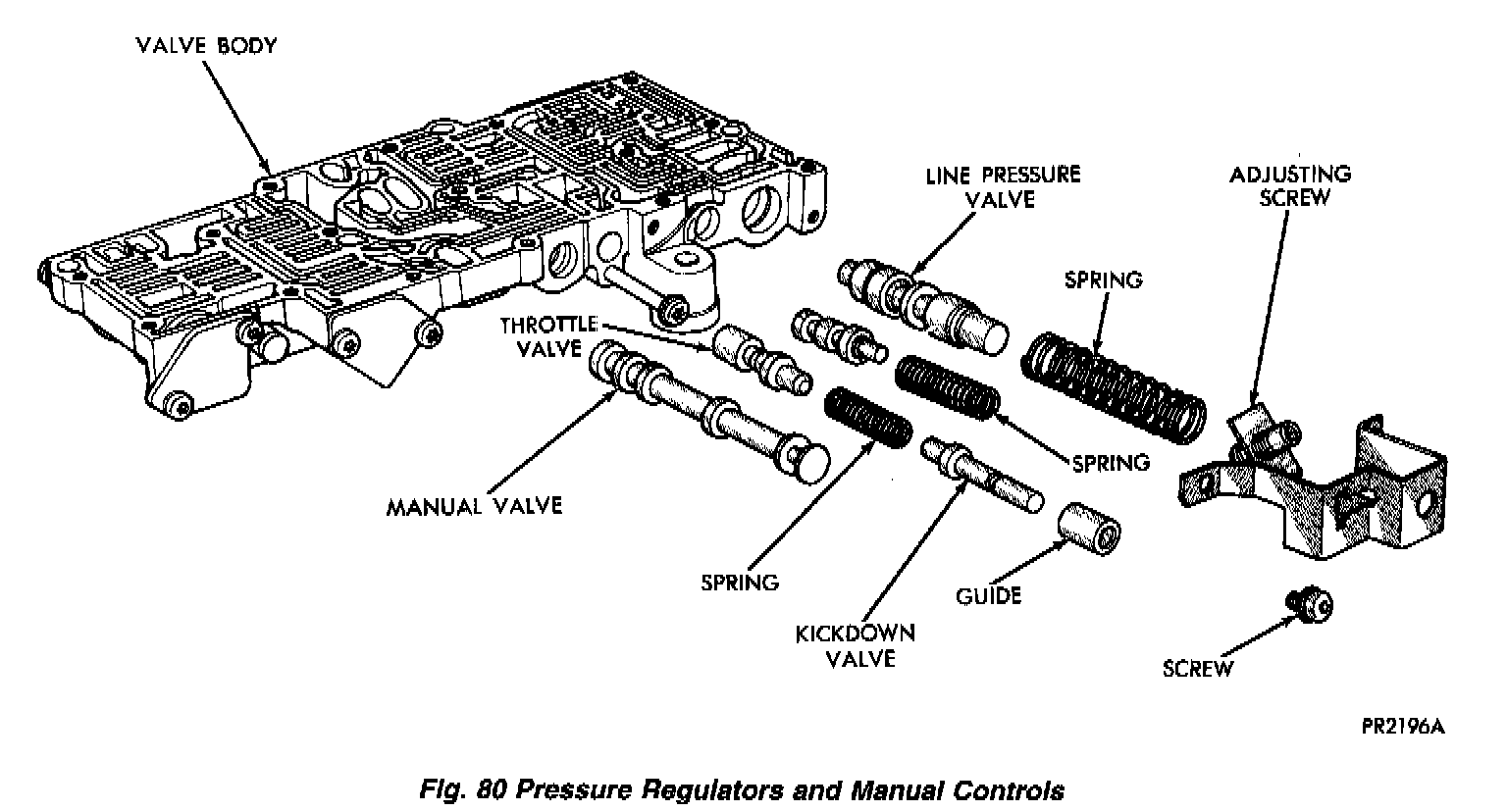

Fig. 80:

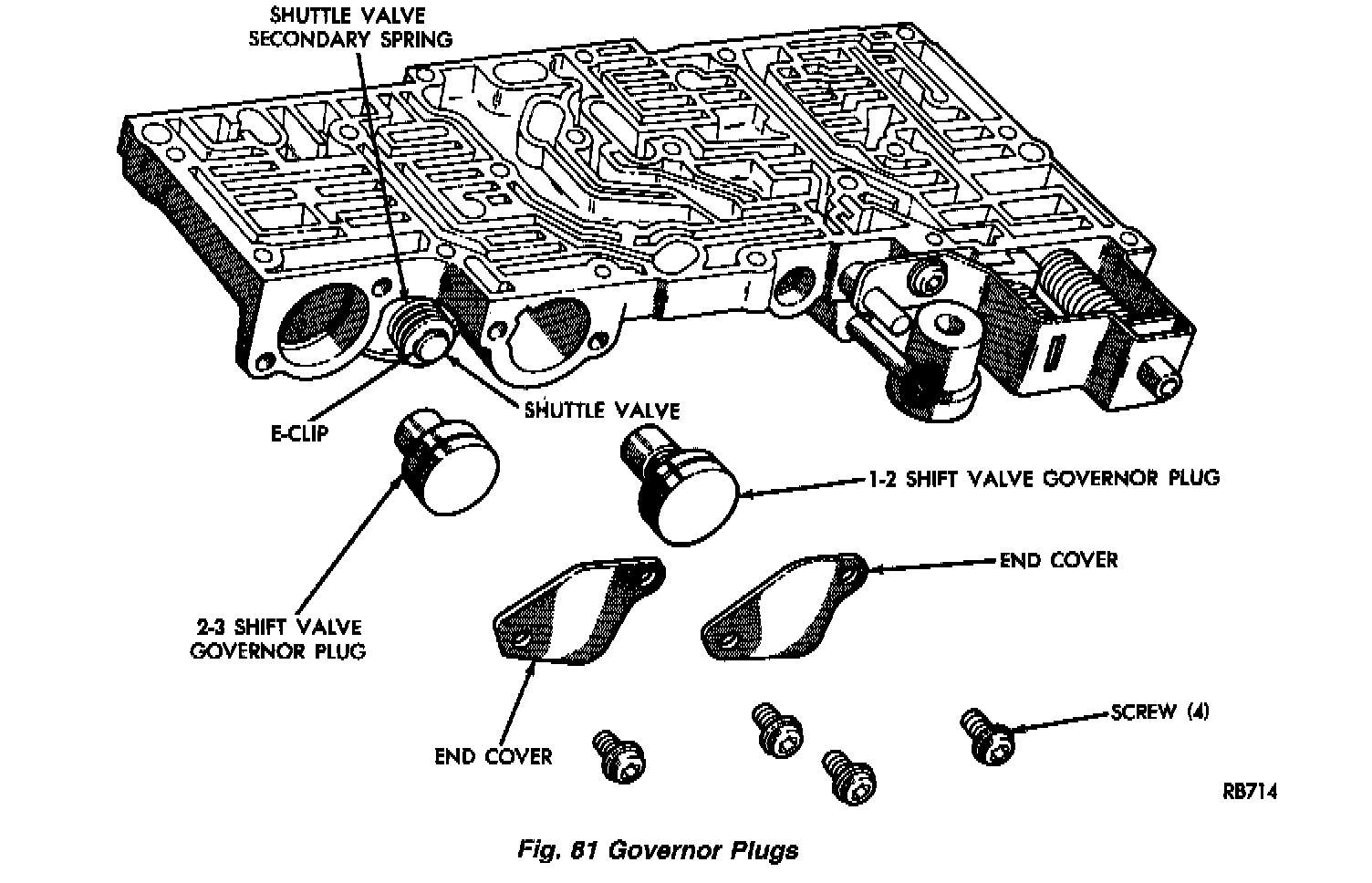

Fig. 81:

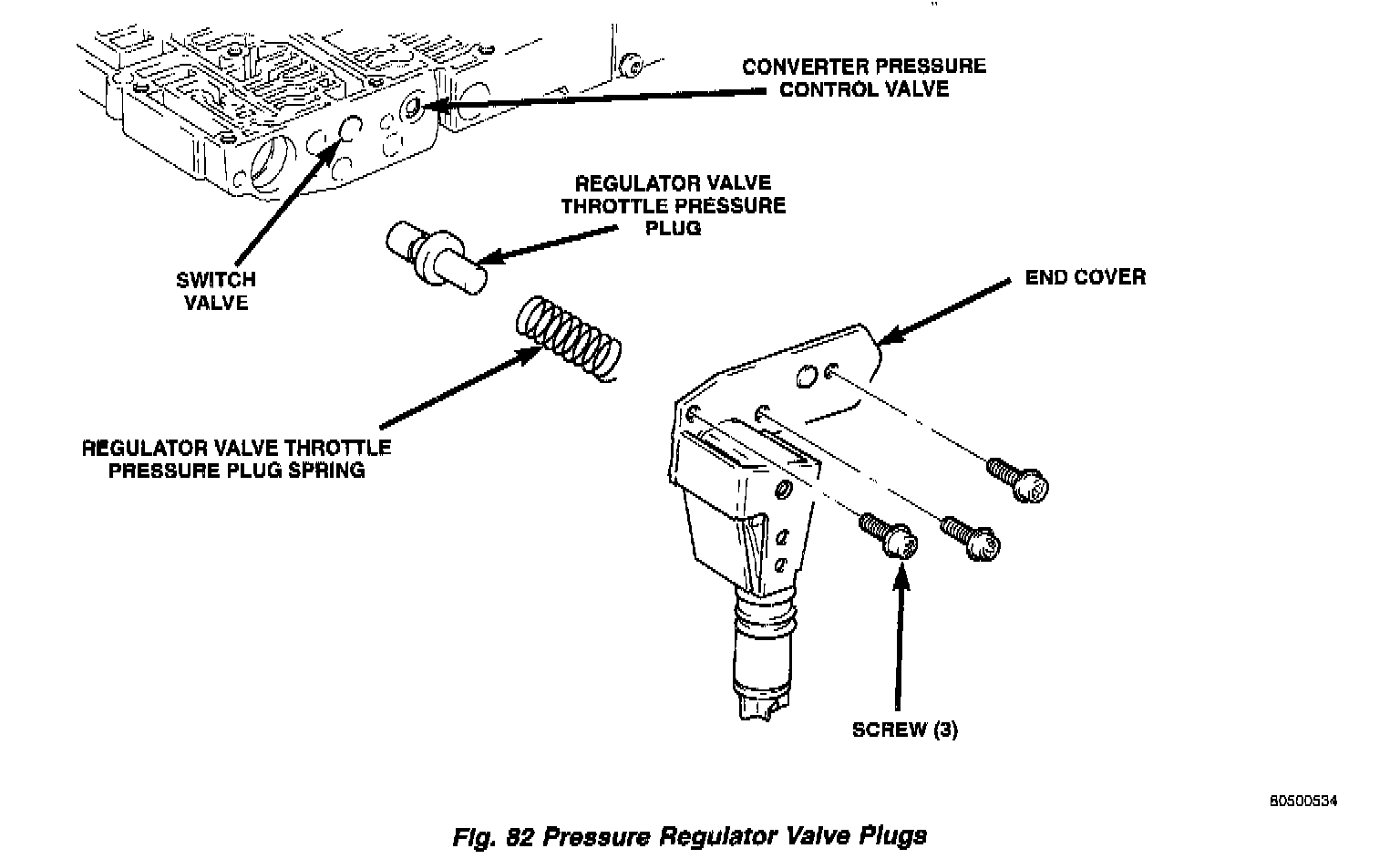

Fig. 82:

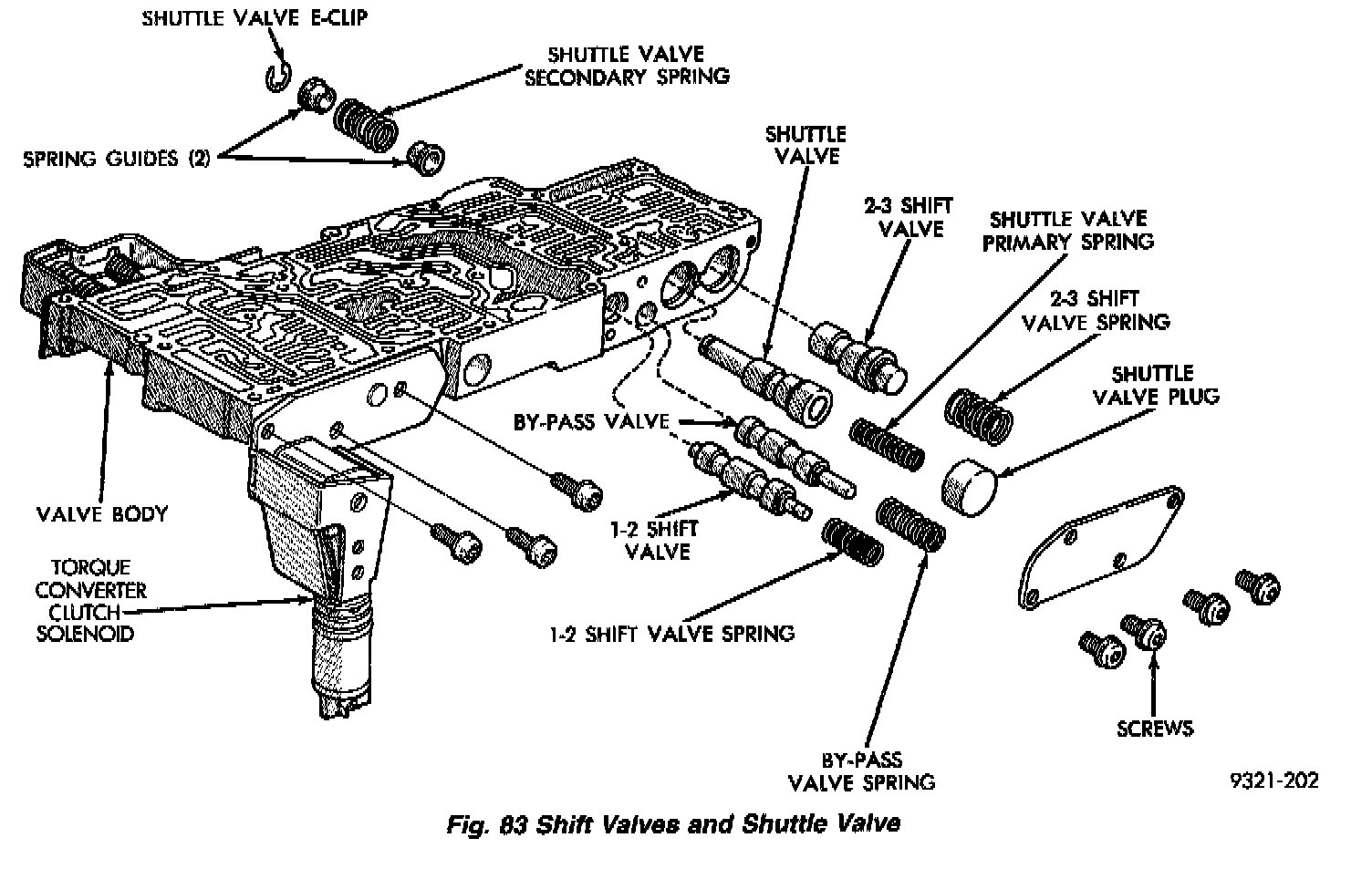

Fig. 83:

NOTE: Tighten all valve body screws to 5 Nm (40 inch lbs.)

Do not clamp any portion of valve body or transfer plate in a vise. Any slight distortion of the aluminum body or transfer plate will result in sticking valves, excessive leakage, or both. When removing or installing valves or plugs, slide them in or out carefully. Do not use force.

NOTE: TAG ALL SPRINGS AS THEY ARE REMOVED FOR REASSEMBLY IDENTIFICATION.
