Rear Suspension - Competition Package

STRUT ADJUSTMENT (COMPETITION PACKAGE SUSPENSION - REAR)

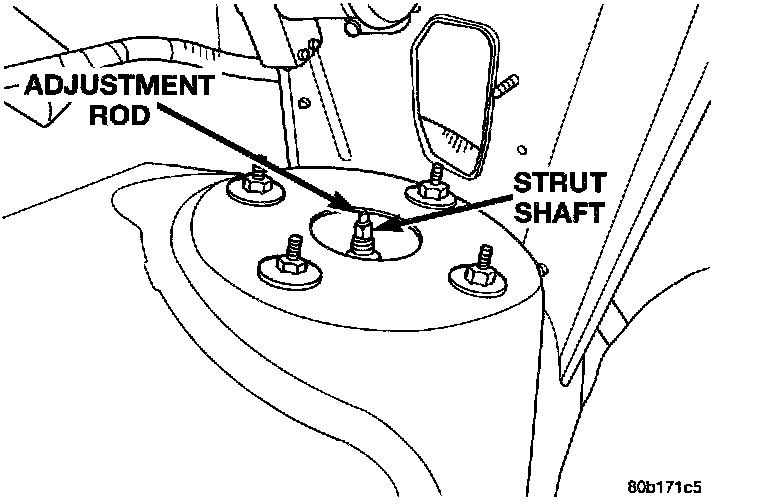

Adjustable Rear Strut:

The rear struts used on a vehicle equipped with the ACR competition package are adjustable. The adjustable struts use a unique strut shaft which has an adjustment rod through the center of it.

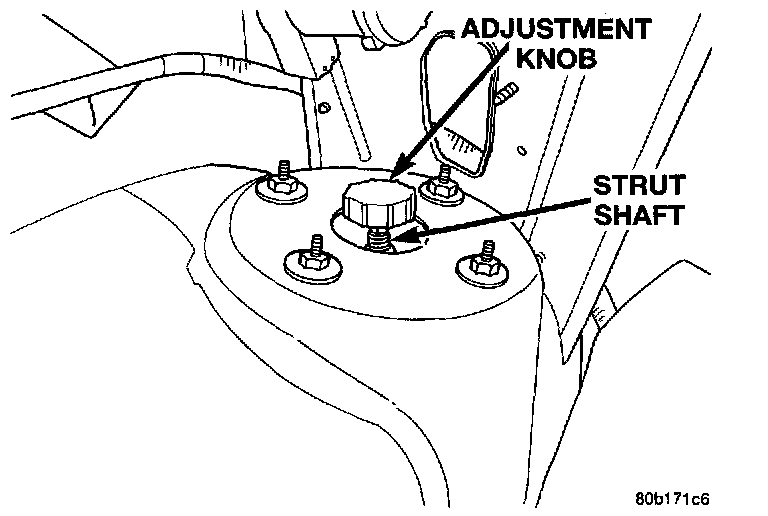

Adjustable Strut Adjustment Knob:

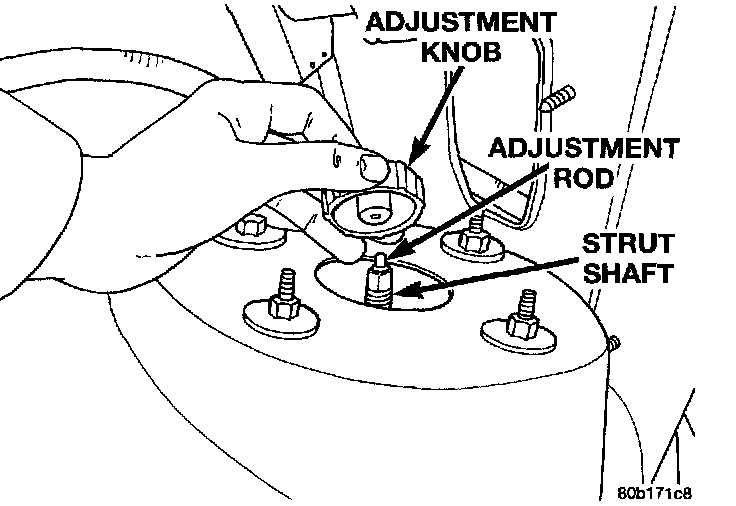

Adjustment Knob Installation:

The rebound dampening of the strut is adjusted using the adjustment knob which is supplied with the vehicle at the time of purchase. The adjustment is done by inserting the flat on the end of the adjustment rod into the groove on the adjustment knob. The rebound dampening is increased by rotating the adjustment knob in a counterclockwise direction and decreased by rotating the adjustment knob in a clockwise direction.
