Front Suspension - Competition Package

STRUT ADJUSTMENT (COMPETITION PACKAGE SUSPENSION - FRONT)

Adjustable Front Strut:

The front struts used on a vehicle equipped with the ACR competition package are adjustable. The adjustable front struts use a unique strut shaft with an adjustment rod through the center of it. The adjustment rod is used to adjust the rebound dampening of the strut.

Adjustable Strut Adjustment Knob:

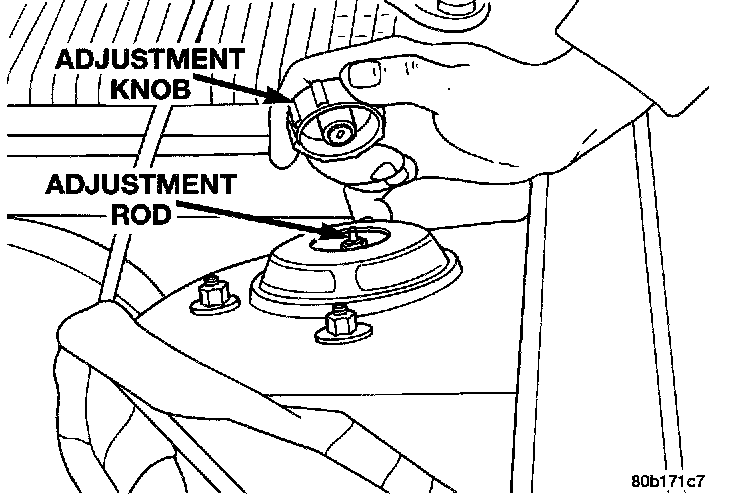

Adjustment Knob Installation:

The rebound dampening of the strut is adjusted using the adjustment knob which is supplied with the vehicle at the time of purchase. The adjustment is done by inserting the flat on the end of the adjustment knob onto the groove of the strut adjustment rod. The rebound dampening is increased by rotating the adjustment knob in a counterclockwise direction and decreased by rotating the adjustment knob in a clockwise direction.
