Steering Column Shrouds

REMOVAL
1. Remove the steering column cover and steering column cover liner.

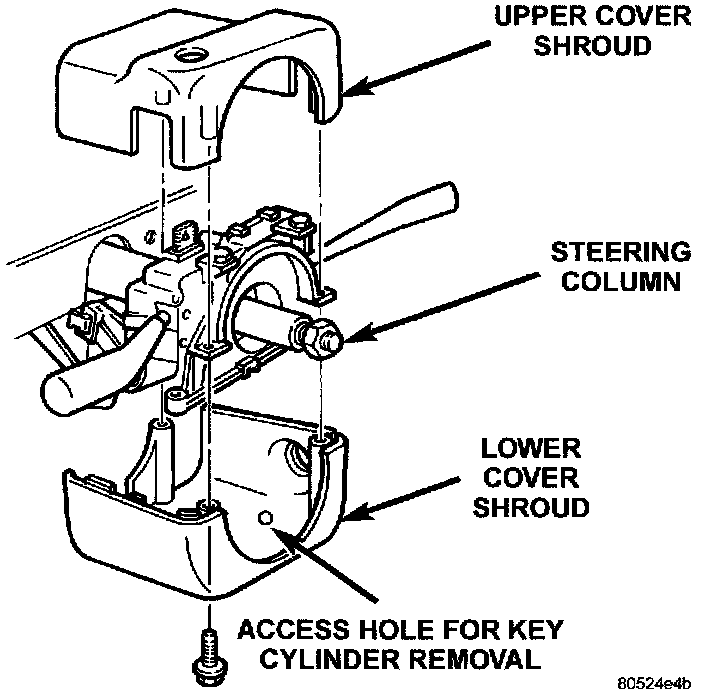

Upper/Lower Shroud:

2. Lift up the top cover and cluster bezel until the clips disengage and separate to provide clearance.
3. Rotate the ignition key cylinder to run/on position. Insert a screw driver into the access hole at the bottom of lower shroud to release the ignition key cylinder.
4. Pull out the ignition key cylinder.
5. Remove the three tower to upper shroud attaching screws through the bottom of the lower shroud.
6. Separate the upper and lower shrouds.


INSTALLATION
- For installation, reverse the above procedures.
