Steering Column Coupling

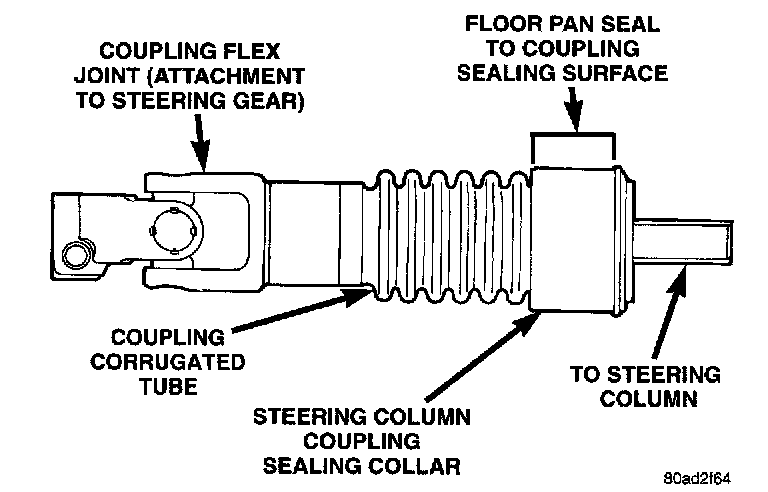

Steering Column Lower Coupling:





This vehicle uses a corrugated design lower coupling used to connect the steering column to the steering gear.

This coupling has a hollow corrugated tube which allows the coupling to bend rather than collapse when a vehicle is involved in a collision.
