Air Bag Control Module: Locations

Airbag Control Module Location:

Airbag Control Module (ACM):

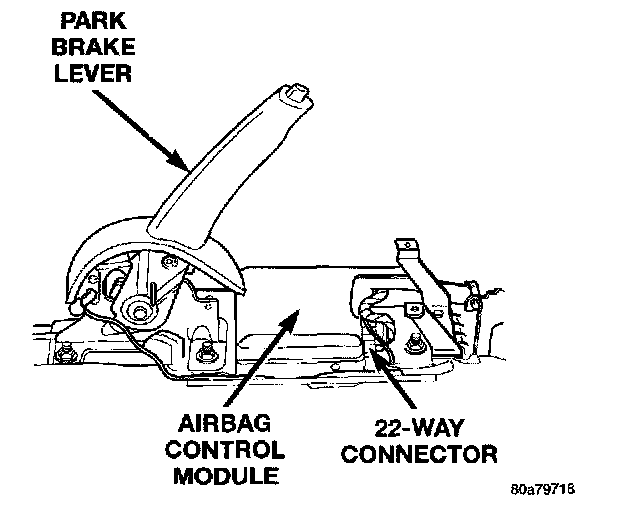

The Airbag Control Module (ACM) is mounted on the tunnel/floor pan between the gearshift lever and the park brake lever.
