Home >> Dodge >> 1999 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Clockspring Assembly / Spiral Cable >> Diagrams

Clockspring Assembly / Spiral Cable: Diagrams

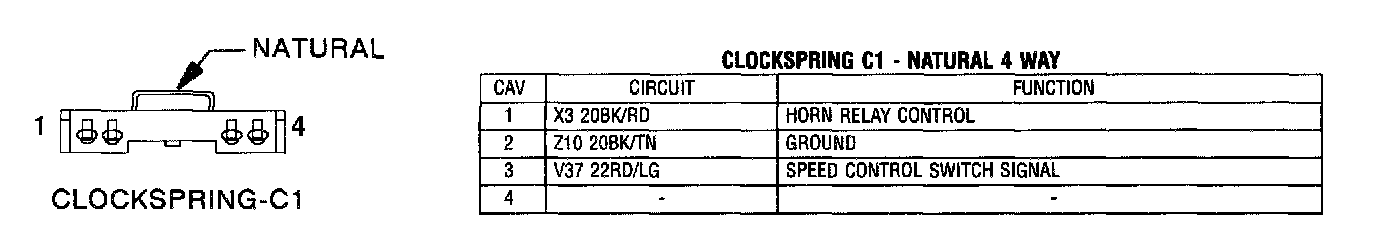

C1 - Natural 4 Way:

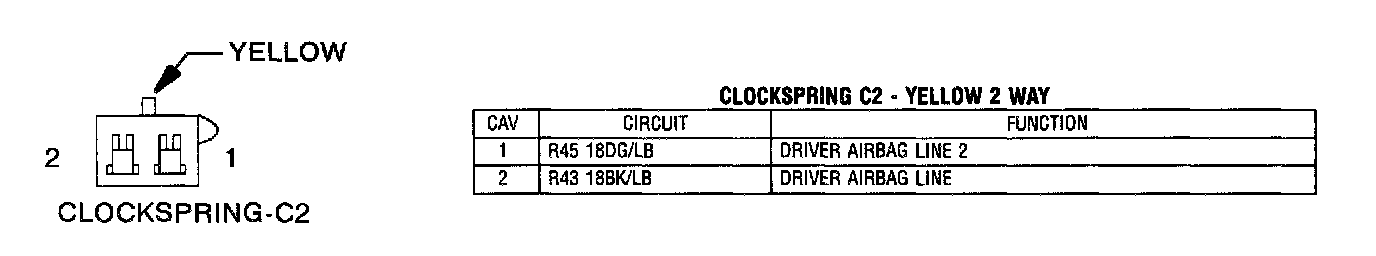

C2 - Yellow 2 Way:
