Air Bag: Locations

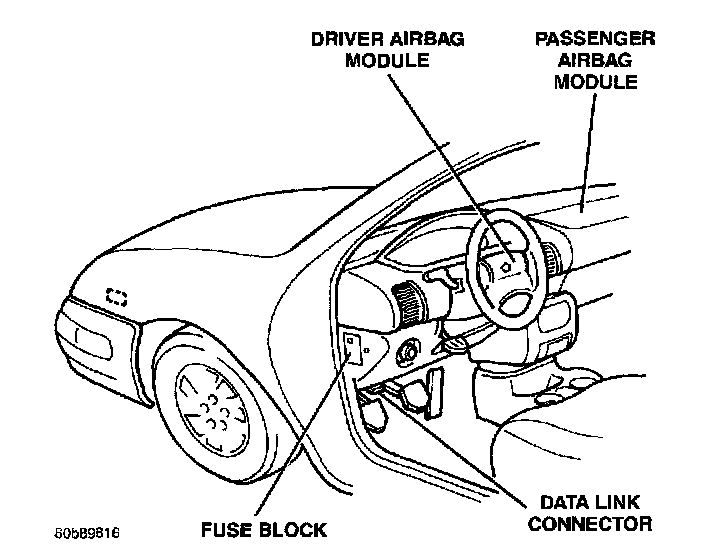

Airbag Module (Driver):




The Driver Airbag Module located on the steering wheel.
The Passenger Airbag Module is located beneath the decorative cover of the instrument panel, facing the passenger seat.
