Spark Plug Tube Seal - Valve Cover: Testing and Inspection

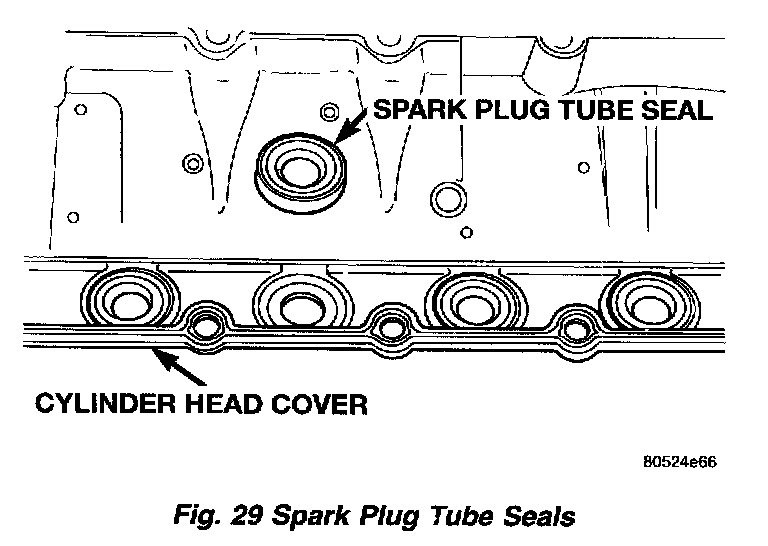

Figure 29:

The spark plug tube seals are located in the cylinder head cover (Fig. 29). These seals are pressed into the cylinder head cover to seal the outside perimeter of the spark plug tubes. If these seals show signs of hardness and/or cracking they should be replaced.
