Oxygen Sensor(s)

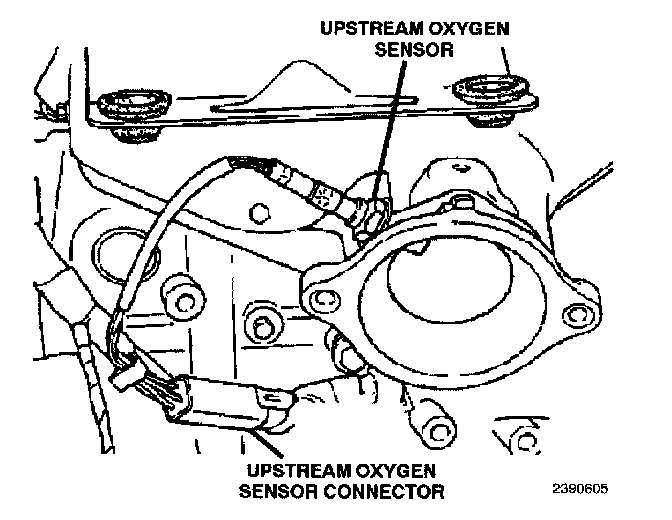

Upstream Oxygen Sensor, Upstream Oxygen Sensor Connector:

Upstream oxygen sensor is mounted in the exhaust manifold flange.

Downstream Heated Oxygen Sensor:

The downstream heated oxygen sensor threads into the exhaust outlet pipe behind the catalytic convertor.
