Throttle Body-Manual Transmission

Remove throttle body cables using the following procedures.

REMOVAL
1. Remove throttle cable cover.

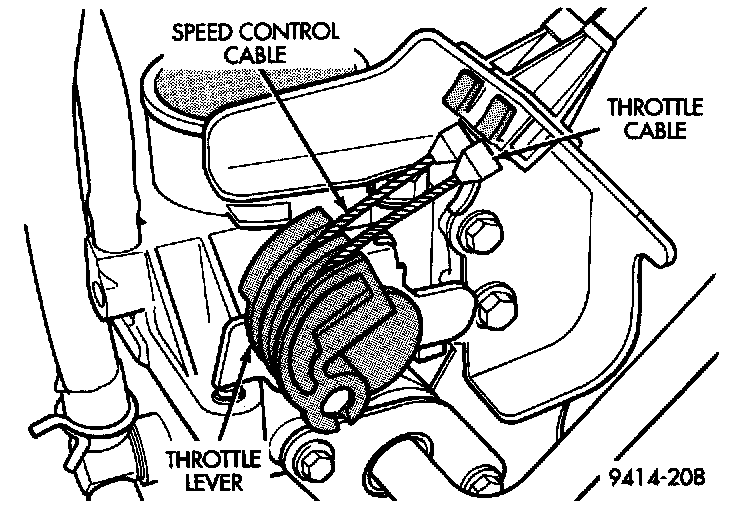

Throttle Cable Attachment To Throttle Body:

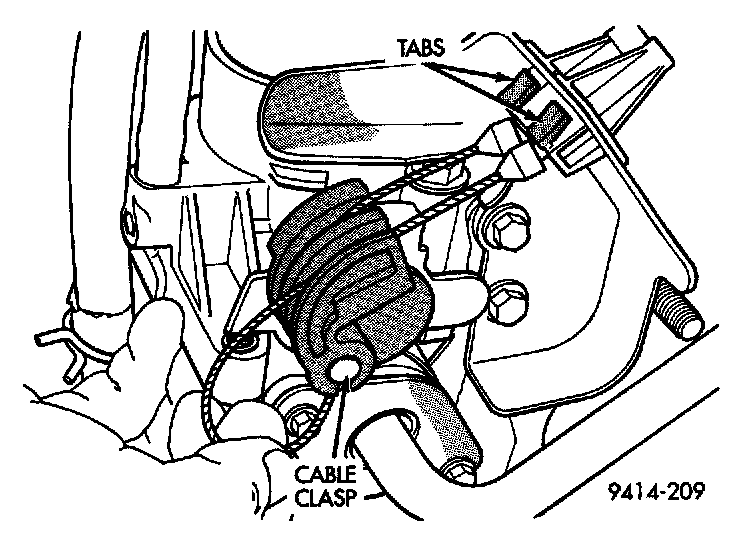

Disconnecting Throttle Cable:

2. Remove throttle cable from the throttle body cam.
3. Compress the retaining tabs on the cable and slide cable out of bracket.
4. If equipped with speed control, remove speed control cable from throttle lever by sliding clasp out hole used for throttle cable.
5. Remove 2 screws holding cable mounting bracket and support bracket.
6 Remove TPS connector.
7. Remove Idle Air Control motor connector.
8. Remove the EVAP purge hose.
9. Remove throttle body mounting bolts. Remove throttle body.

Re-Usable Throttle Body Gasket:

10. The rubber O-ring gasket on the intake manifold is reusable. Wipe the O-ring clean before installing throttle body.

INSTALLATION
1. Connect the electrical connection to the throttle body.
2. Install gasket.
3. Install throttle body on intake manifold. Tighten mounting bolts 11.8 N.m (105 in. lbs.).
4. Attach cable mounting bracket and support bracket with 2 screws.
5. Connect the EVAP purge hose to the throttle body.
6. Install cable housing(s) retainer tabs into bracket.
7. If equipped with speed control, rotate the throttle lever forward to the wide open position and install speed control cable clasp.
8. Rotate throttle lever to wide open position and install throttle cable clasp.
9. Install throttle cable cover. Tighten bolt to 4.5 N.m (40 ins. lbs.).
