Throttle Body-Automatic Transmission

REMOVAL
1. Remove throttle cable cover.
2. Remove throttle body cables using the following procedures.

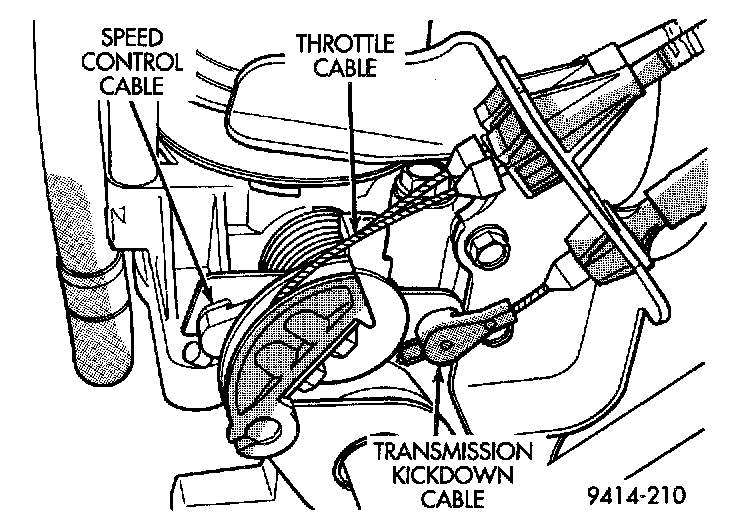

Throttle Body Cables Attachment To Throttle Body:

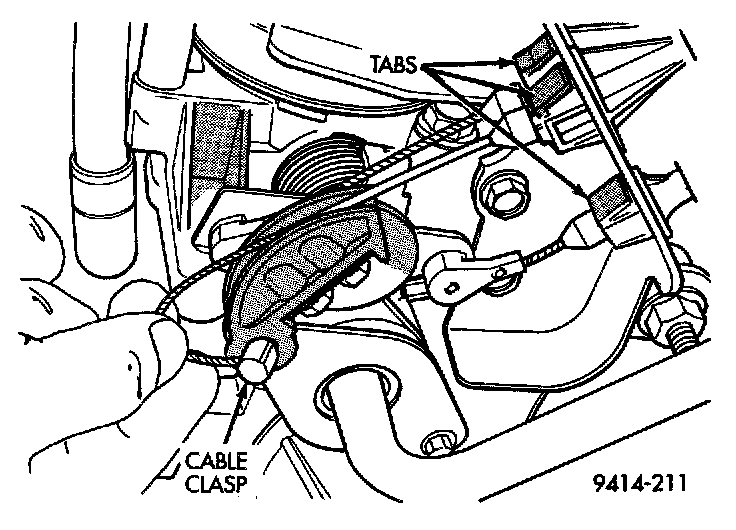

Disconnecting Throttle Cable:

3. Remove throttle cable from throttle body cam.
4. Compress the retaining tabs on the cable and slide cable out of bracket.

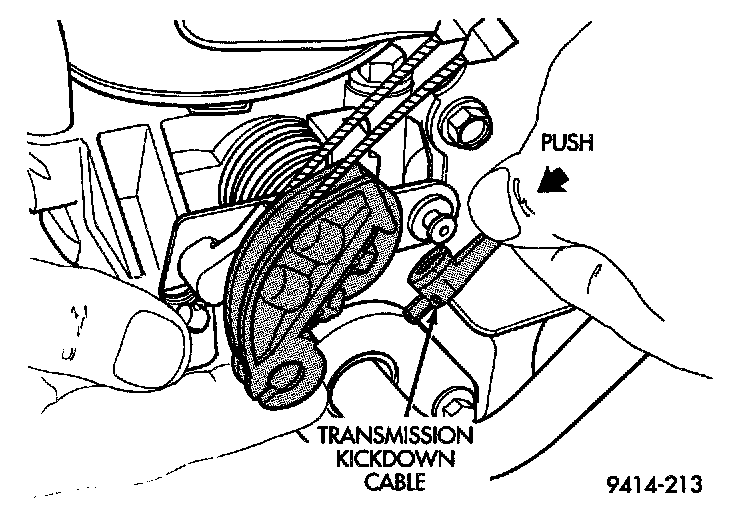

Transmission Kickdown Cable Connector:

5. Hold throttle lever in the wide open position. Using finger pressure only, remove kickdown cable by PUSHING connector off the lever nail head. DO NOT try to pull connector off perpendicular to the lever.
6. Compress the retaining tabs on the cable and slide cable out of bracket.

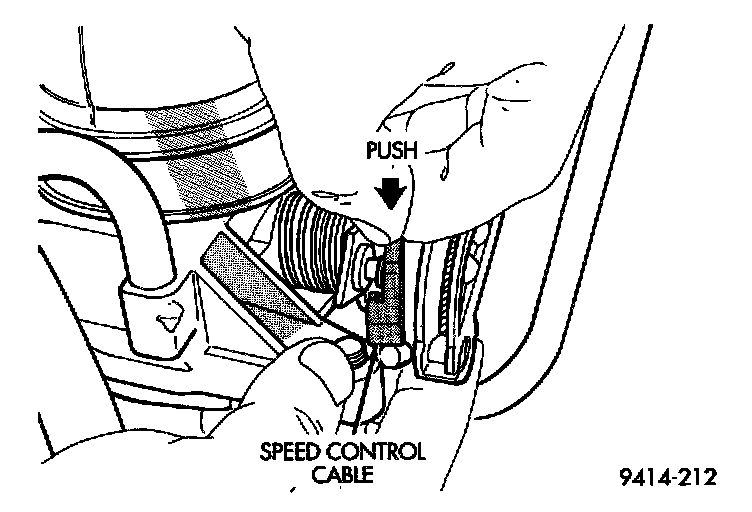

Speed Control Cable Connector:

7. if equipped with speed control, hold throttle lever in the wide open position. Using finger pressure only, remove speed control cable by PUSHING connector off the lever nail head. DO NOT try to pull connector off perpendicular to the lever.
8. Compress the retaining tabs on the cable and slide cable out of bracket.
9. Remove 2 screws holding cable mounting bracket and support bracket.
10. Remove TPS connector.
11. Remove Idle Air Control motor connector.
12. Remove EVAP purge hose.
13. Remove throttle body mounting bolts. Remove throttle body.

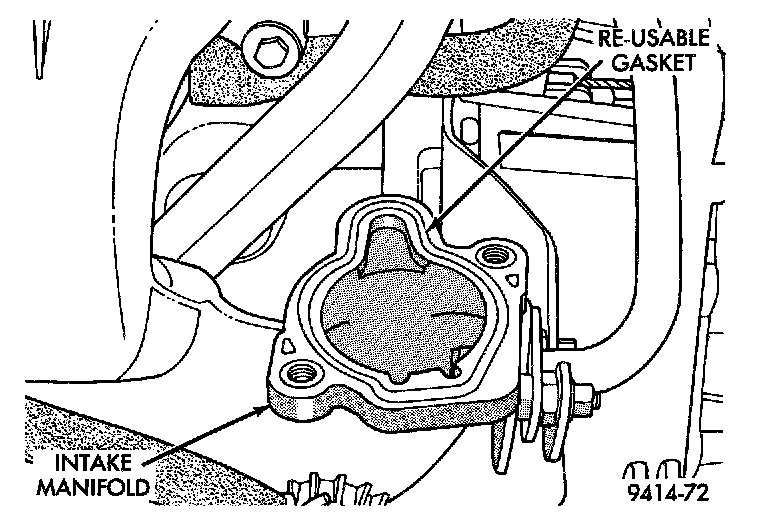

Re-Usable Throttle Body Gasket:

14. The rubber O-ring gasket on the intake manifold is reusable. Wipe the O-ring clean before installing throttle body.

INSTALLATION
1. Connect electrical connection to throttle body.
2. Install throttle body on intake manifold. Tighten mounting bolts 11.8 N.m (105 in. lbs.).
3. Attach cable mounting bracket and support bracket with 2 screws.
4. Connect the EVAP purge hose.
5. Install cable housing(s) retainer tabs into bracket.
6. Install throttle body cables using the following procedures.
7. From the engine compartment, rotate the throttle lever forward to the wide open position and install throttle cable clasp.
8. If equipped with speed control, rotate throttle lever forward to the wide open position and slide speed control cable connector onto nail head.
9. Rotate throttle lever forward to the wide open position and slide kickdown cable connector onto nail head,
10. Install throttle cable cover. Tighten bolt to 5.6 N.m (50 ins. lbs.).
