Rollover Valve: Service and Repair

Fuel Filler Tube Rollover Valve:

REMOVAL

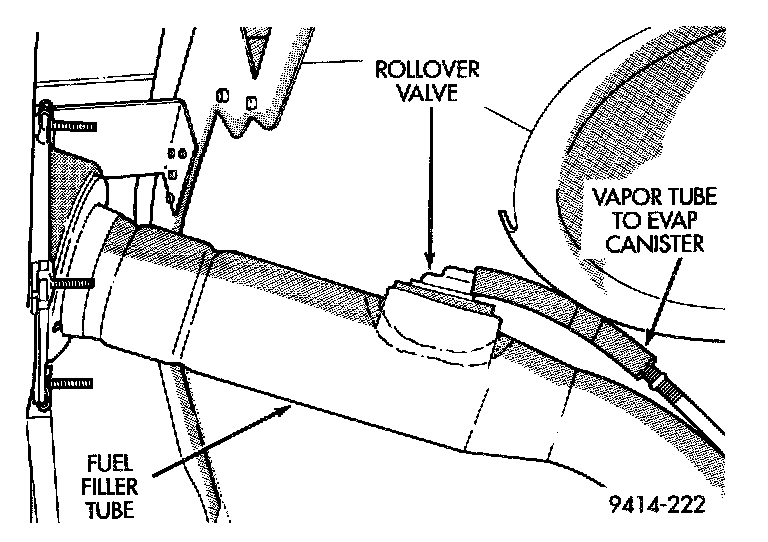

The rollover valve is mounted in the fuel filler tube.
1. To release fuel tank pressure, remove the fuel filler tube cap.
2. Disconnect vapor tube from rollover valve.
3. Using a straight screwdriver, pry the valve out of the grommet in the fuel filler tube.

INSTALLATION
1. Apply a light coating of power steering fluid to the grommet.
2. Install valve in grommet.
3. Attach vapor tube to valve.
4. Install fuel filler tube cap.
