Fuel Filler Hose: Service and Repair

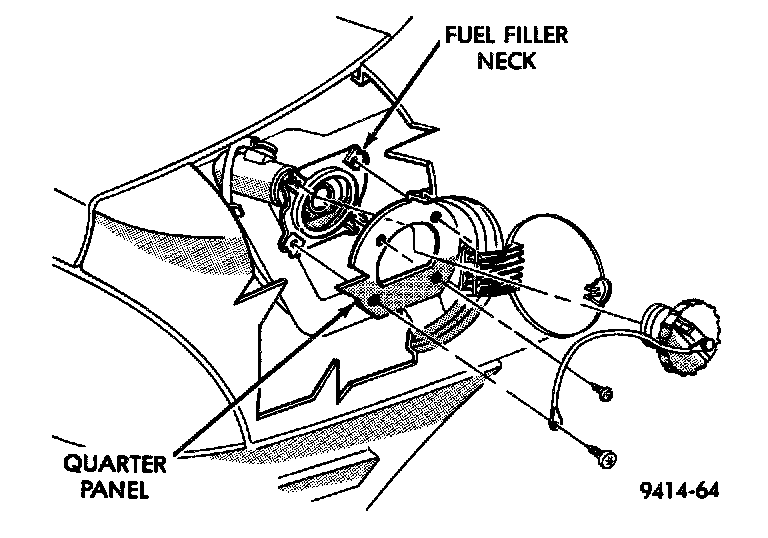

Fuel Filler Neck:

REMOVAL
1. Loosen fuel filler tube cap.
2. Remove fuel filler neck screws.
3. Disconnect fuel fill vapor tube.
4. Disconnect fuel filler tube from fuel tank. Remove filler neck.
5. Remove groundstrap fastener on rail.

INSTALLATION
1. Reverse for installation.
