No Crank Condition

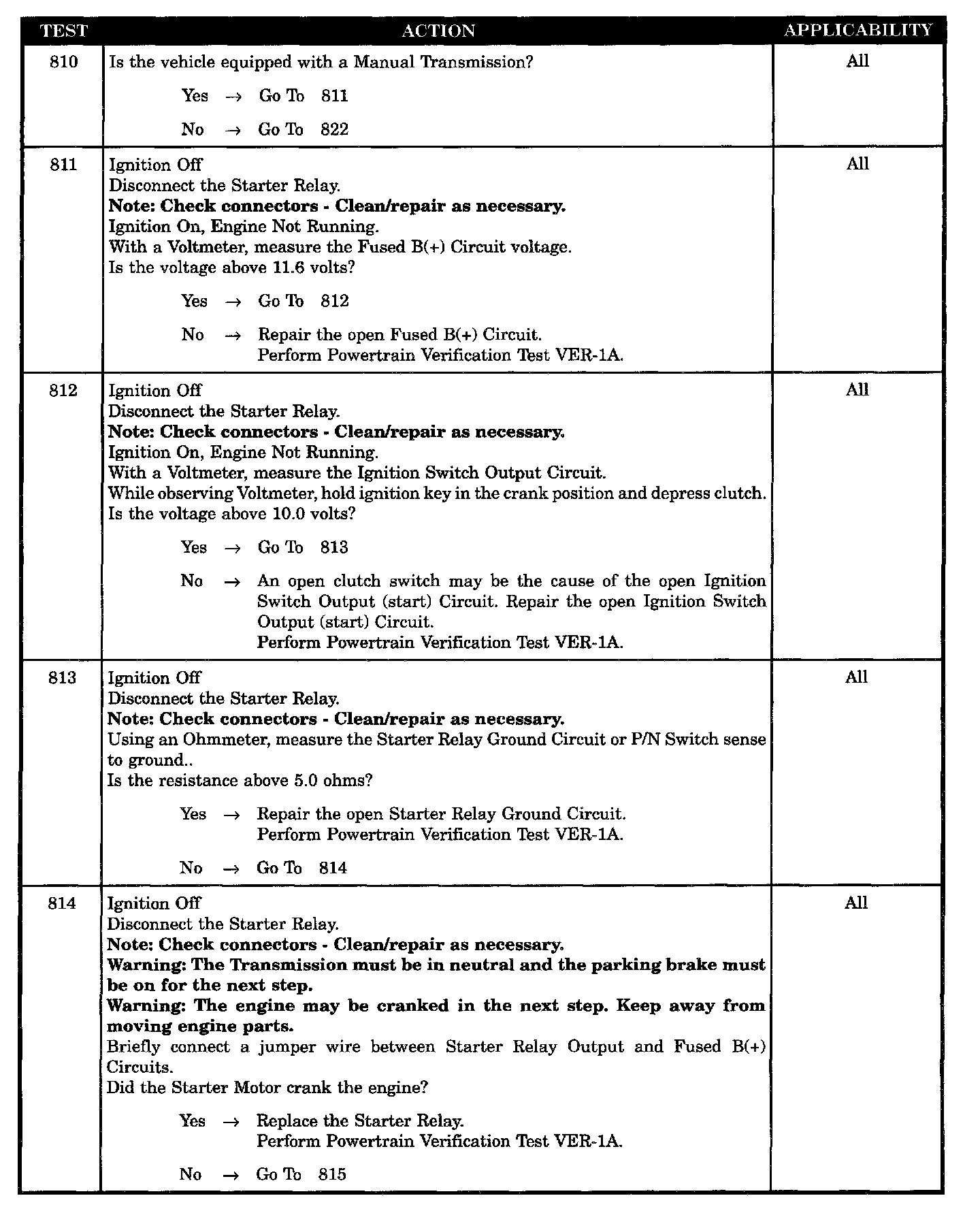

Tests 810 - 814:

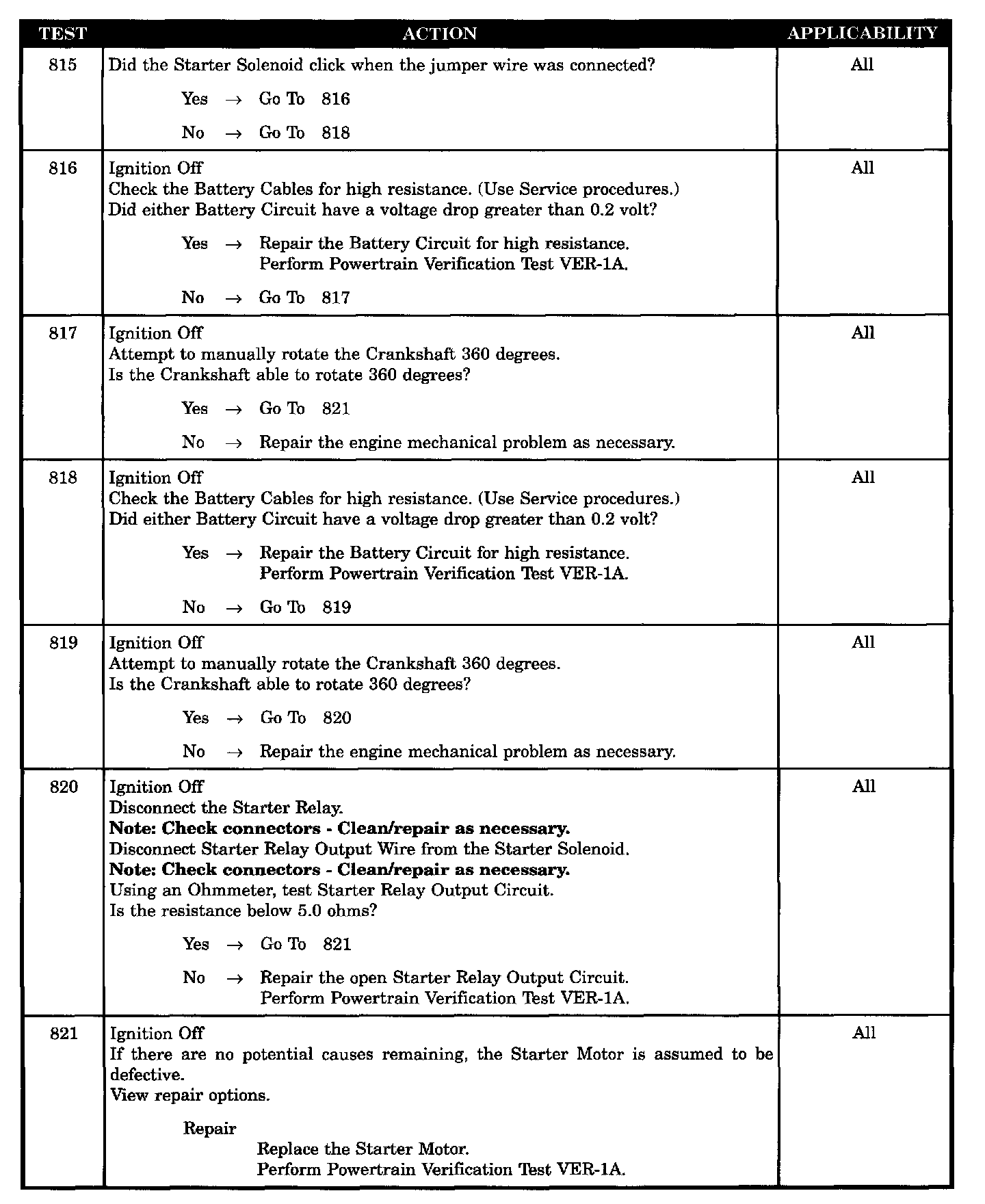

Tests 815 - 821:

Tests 822 - 826:

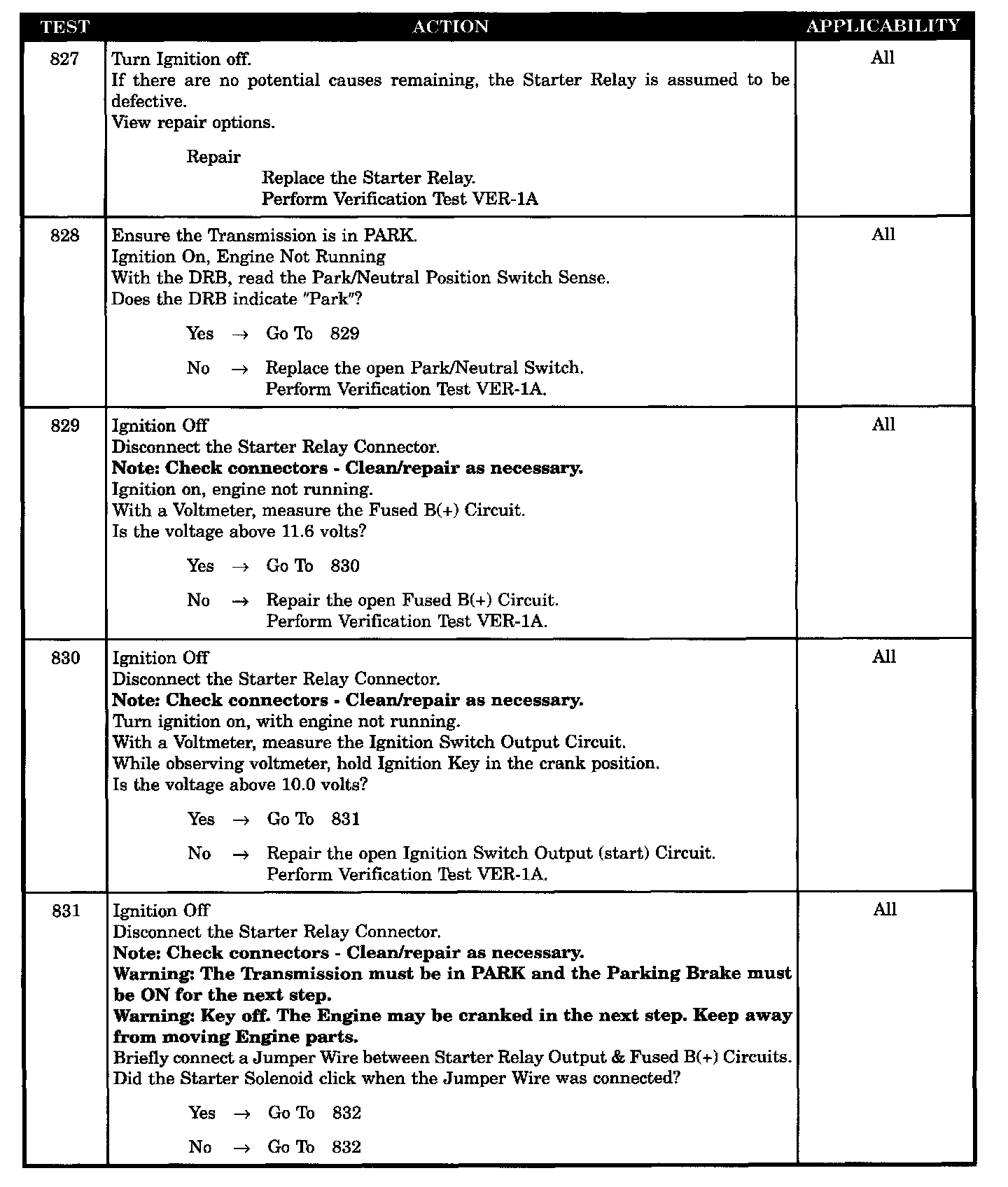

Tests 827 - 831:

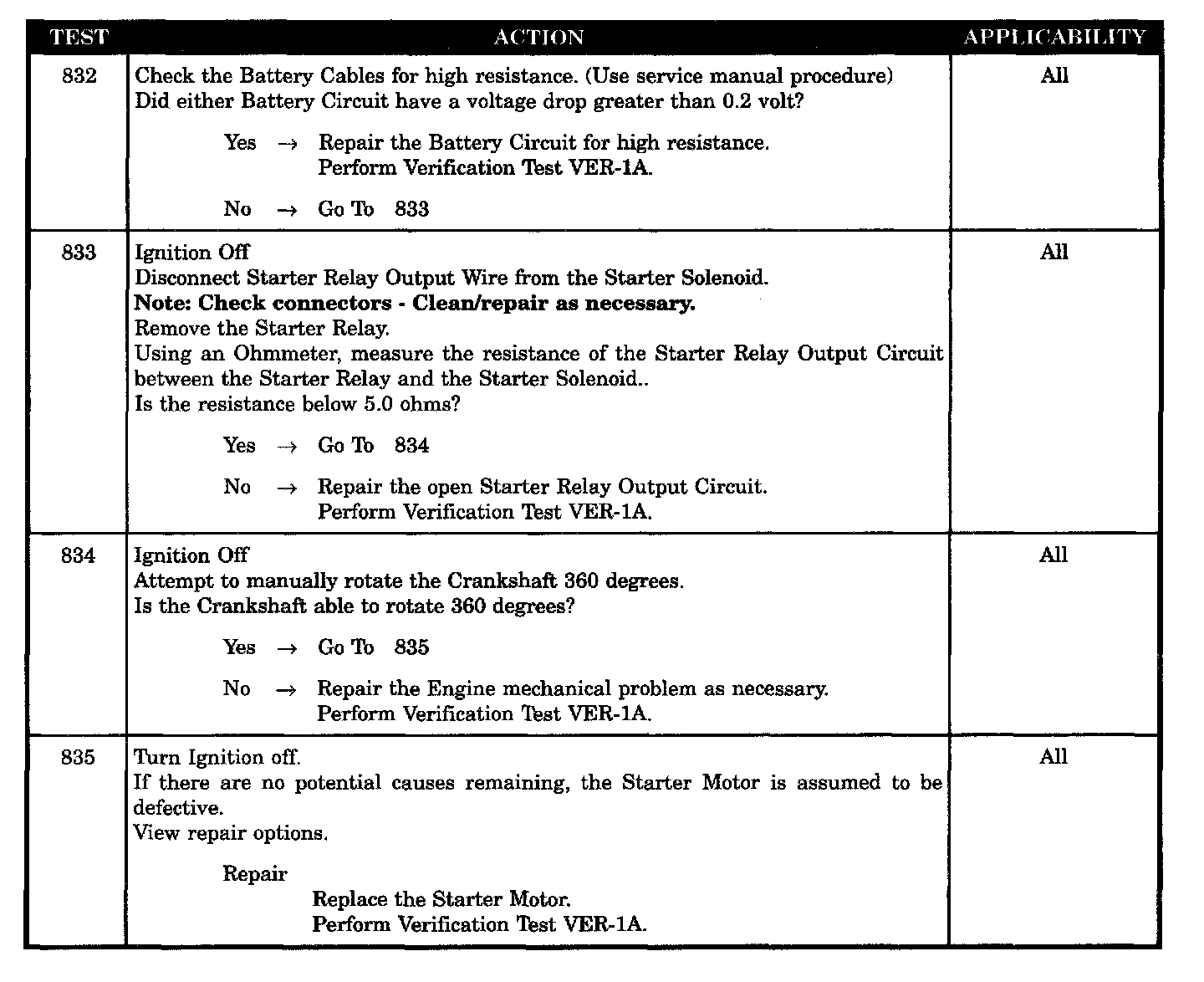

Tests 832 - 835:

SYMPTOM
* NO CRANK CONDITION

POSSIBLE CAUSES
- Battery circuit high resistance
- Battery circuit high resistance
- Fused B(+) circuit open
- Fused B(+) circuit open
- Ignition switch output circuit open
- Ignition switch output circuit open
- P/N SW sense ckt open btwn start rly and splice
- Park/Neutral switch open
- Starter motor defective
- Starter relay defective (no crank condition)
- Starter relay ground circuit open
- Starter relay output circuit open
- Starter relay output circuit open
- Engine mechanically defective
- Starter motor def (no crank condition)
- Starter relay defective
- Engine defective
