Home >> Dodge >> 1999 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> Low Fuel Pressure

Low Fuel Pressure

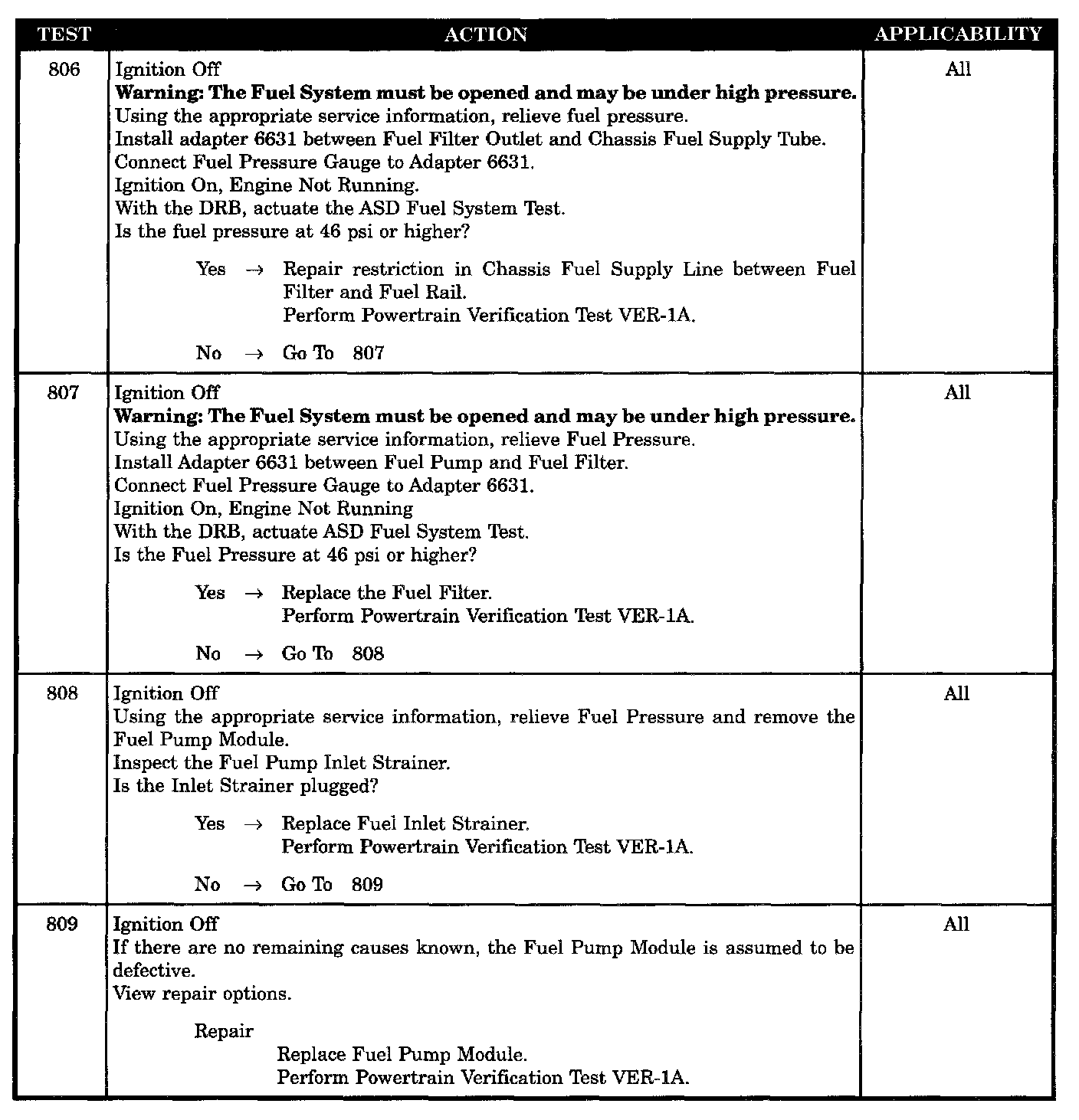

Tests 806 - 809:




SYMPTOM
* LOW FUEL PRESSURE

POSSIBLE CAUSES
- Fuel pump module defective
- Fuel filter defective
- Fuel inlet strainer defective
- Fuel line restricted between fuel filter & fuel rail
