Checking Engine Mechanical Systems

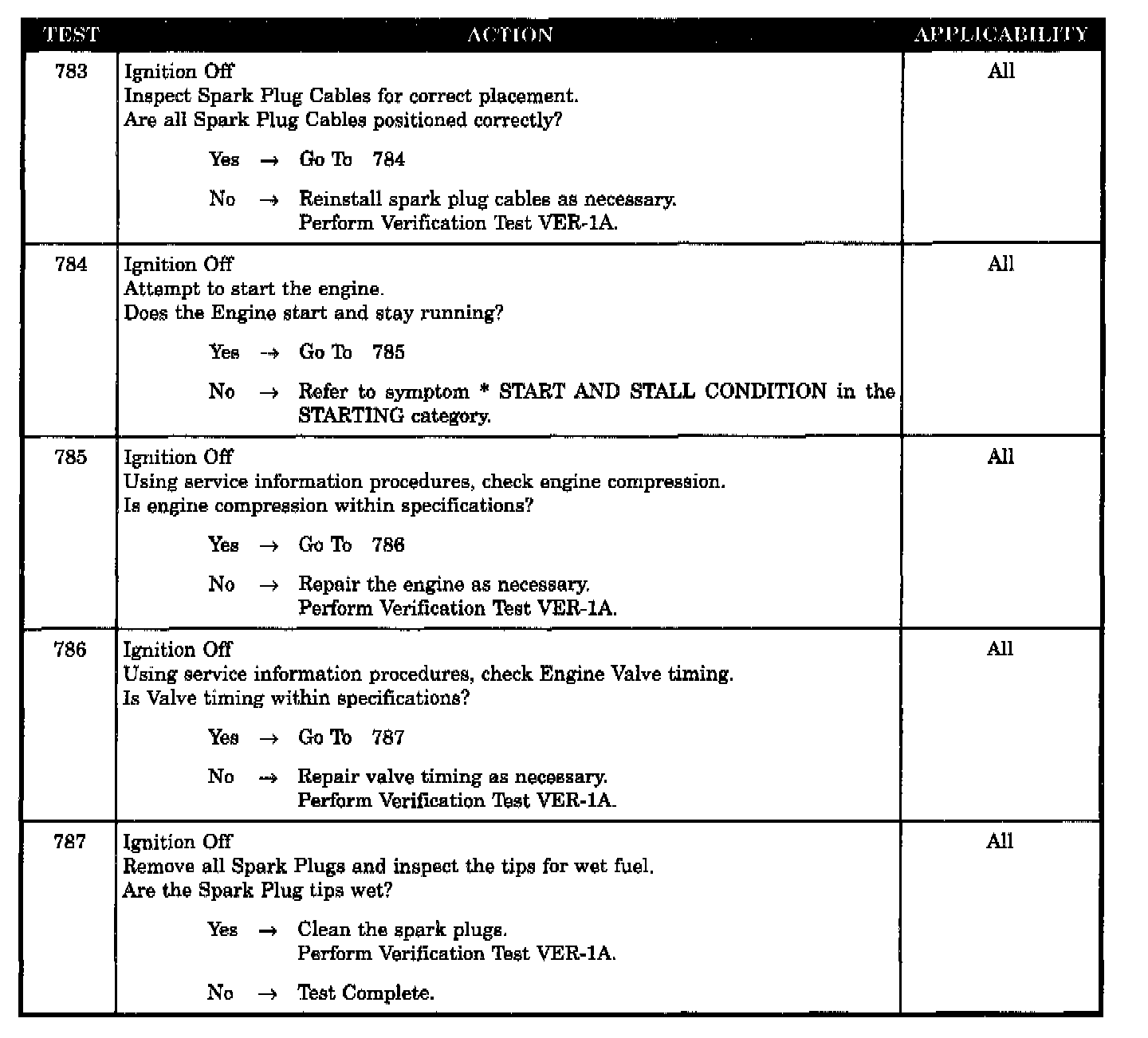

Tests 783 - 787:




SYMPTOM
* CHECKING ENGINE MECHANICAL SYSTEMS

POSSIBLE CAUSES
- Spark plug cables positioned incorrectly
- Engine compression out of specification
- Valve timing out of specification
- Spark plugs wet
