Oil Filter: Service and Repair

REMOVE AND INSTALL

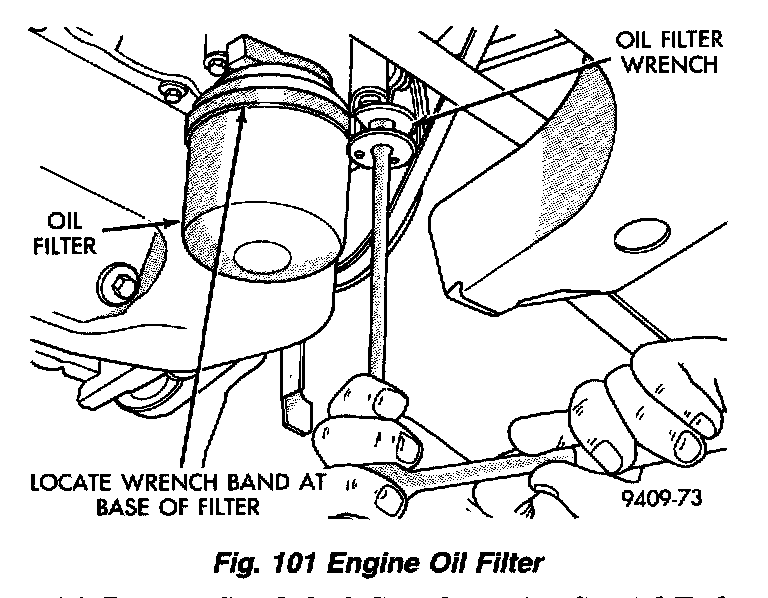

Figure 11:

CAUTION: When servicing the oil filter avoid deforming the filter, install tool band strap against the seam at the base of the filter. The seam, joining the can to the base is reinforced by the base plate.

1. Turn counterclockwise to remove.
2. To install, lubricate new filter gasket. Check filter mounting surface. The surface must be smooth, flat and free of debris or old pieces of rubber. Screw filter on until gasket contacts base. Tighten to 21 Nm (15 ft. lbs.).
