A/C Belt

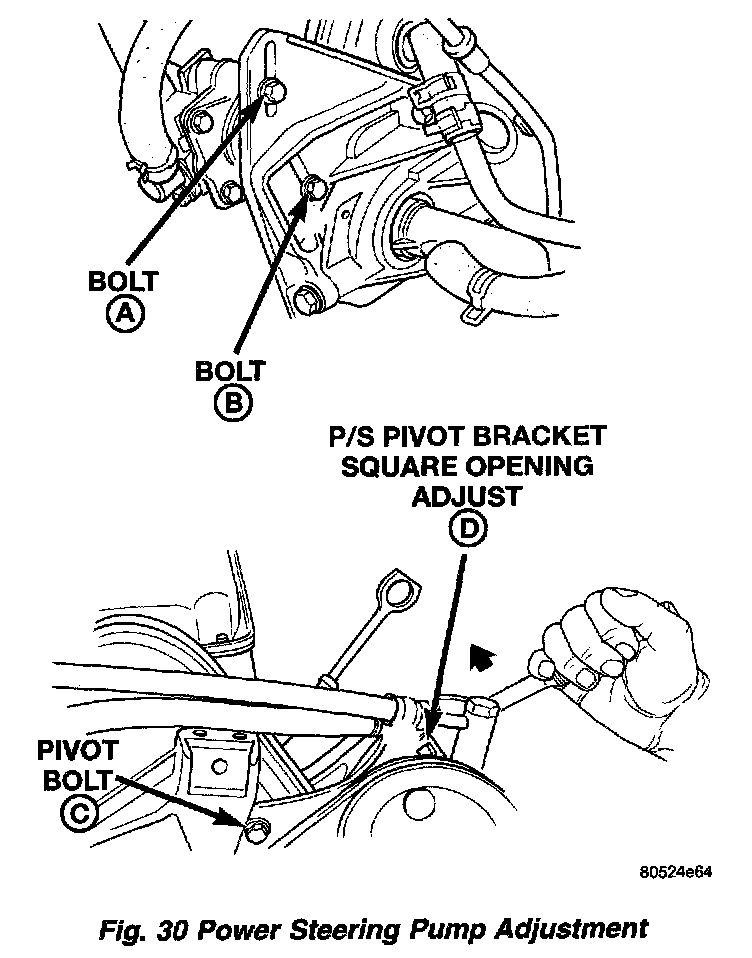

Figure 30:

1. Loosen the power steering pump locking bolts A and B and pivot bolt C (Fig. 30) to remove and install belt and/or adjust belt tension.
2. Using a 1/2" breaker bar, adjust belt tension by applying torque to the square D hole on the power steering pivot bracket. Adjust tension to specification given in Belt Tension Chart.
3. Tighten in order, first tighten locking bolt A to 27 Nm (20 ft. lbs.) then, bolt B to 27 Nm (20 ft. lbs.). Then pivot bolt C to 54 Nm (40 ft. lbs.).

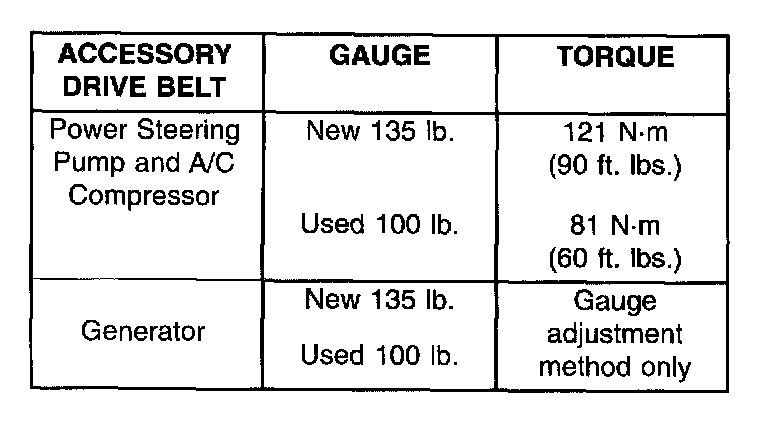

BELT TENSION CHART
