Drive Belt: Adjustments
OVERVIEWSatisfactory performance of the belt driven accessories depends on belt condition and proper belt tension. There are two belt tensioning methods given in order of preference:
^ Belt tension gauge method.
^ Torque equivalent method.
The belt tension gauge method usually requires the vehicle to be raised on a hoist and the splash shield removed.
TORQUE EQUIVALENT METHOD
Adjustable accessory brackets provided with a 13 mm (1/2 inch) square hole for a torque wrench can use an equivalent torque value for belt adjustment.
Equivalent torque values for adjusting these accessory drive belts are specified in the Belt Tension Chart.
BELT TENSION CHART
BELT TENSION GAUGE METHOD
NOTE: Use belt tension gauge Special Tool 7198 for:
^ For conventional belts and Poly-V belts. Adjust the belt tension for a New or Used belt. Refer to the Belt Tension Chart for specifications.

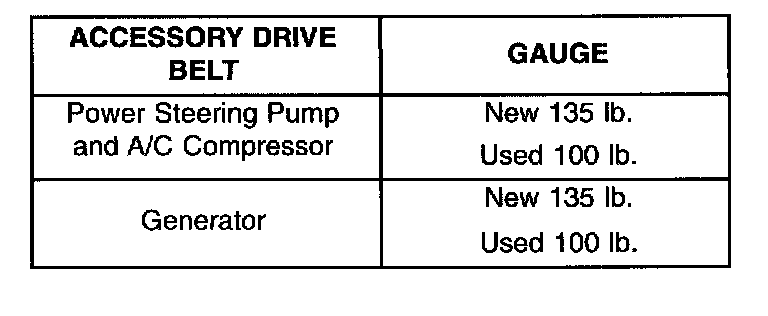

BELT TENSION CHART
