Park and Turn Signal Lamp

REMOVAL
1. Release hood latch and open hood.

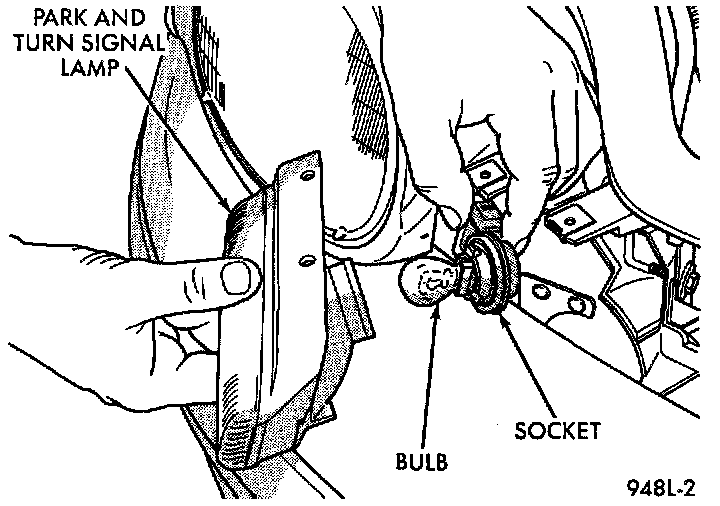

Park And Turn Signal Lamp:

2. Remove screws holding lamp to headlamp module.
3. Separate park and turn signal lamp from vehicle.
4. Disengage wire connector from back of lamp socket.

INSTALLATION
- Reverse the preceding operation.
