Marker Lamp: Service and Repair

Front Side Marker Lamp

REMOVAL
1. Remove socket and bulb from side marker lamp.

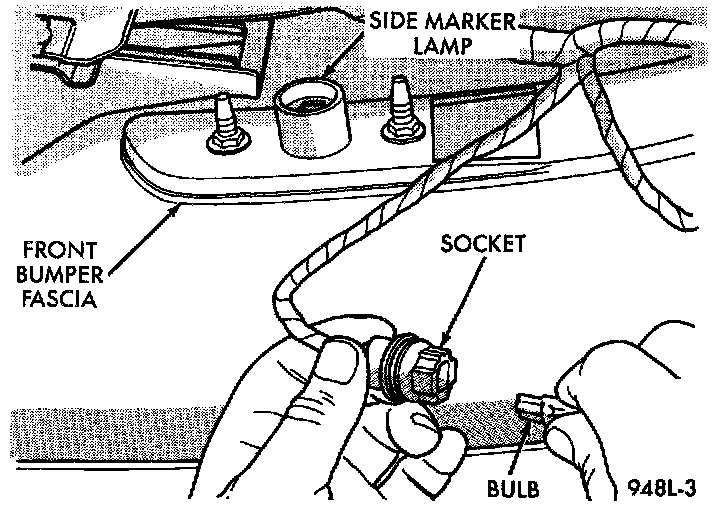

Front Side Marker Lamp:

2. Remove nuts holding side marker lamp to front bumper fascia.
3. Separate side marker lamp from vehicle.

INSTALLATION
Reverse the preceding operation.
