Marker Lamp Bulb: Service and Repair

REMOVAL

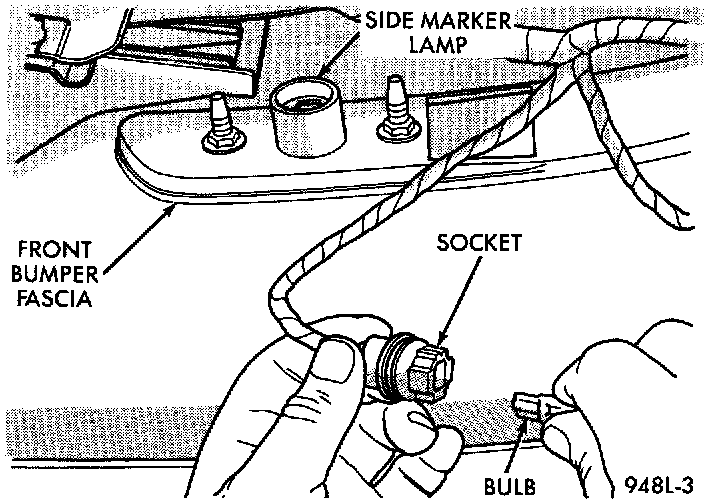

1. Reach behind front bumper fascia forward of front wheel.
2. Remove socket from side marker lamp.

Front Side Marker:




3. Pull bulb from socket.

INSTALLATION
Reverse the preceding operation.
