License Plate Bulb: Service and Repair

REMOVAL

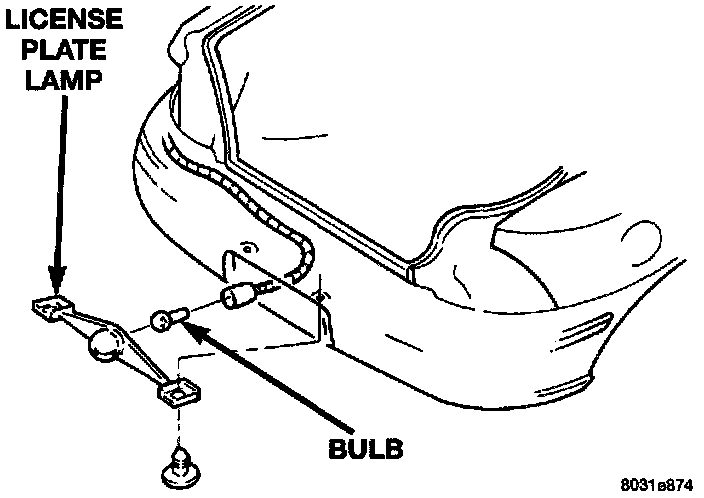

License Plate Lamp:




1. Remove screws holding license plate lamp to rear bumper.
2. Separate lamp from bumper.
3. Remove bulb socket from lamp.
4. Pull bulb from socket.

INSTALLATION
Reverse the preceding operation.
