Horn: Service and Repair

REMOVAL

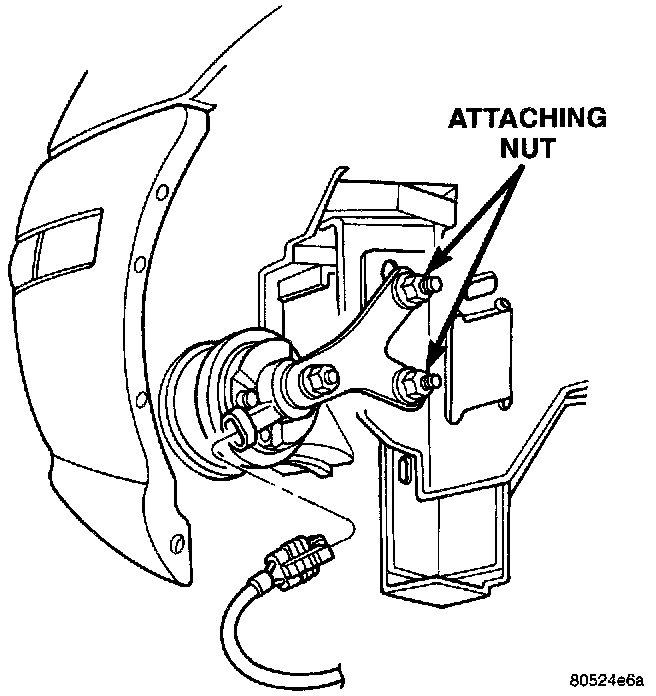

Horn Location:




Disconnect connector and remove horn attaching nuts from the bumper support bracket.

INSTALLATION
For installation, reverse the above procedures. Insure that the horn projector does not touch bumper reinforcement or the sound output may be altered.
