Headlamp Bulb: Service and Repair

REMOVAL
1. Release hood latch and open hood.
2. Disengage wire connector from headlamp bulb connector.
3. Remove retaining ring holding bulb to back of headlamp module.

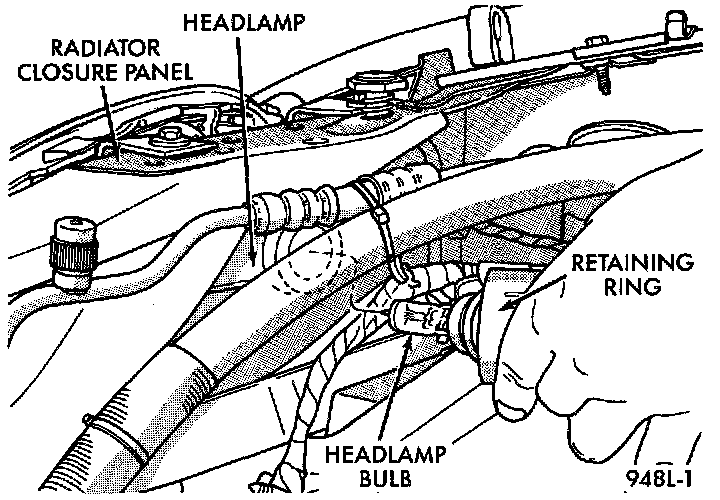

Headlamp Bulb:

4. Pull bulb from back of headlamp module.

INSTALLATION

CAUTION: Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result.
