Fog/Driving Lamp: Service and Repair

Fog Lamp Assembly

REMOVAL

Fog Lamp:

1. Remove bolt holding fog lamp to radiator closure panel.
2. Separate fog lamp from radiator closure panel.
3. Pull fog lamp through opening in fascia.

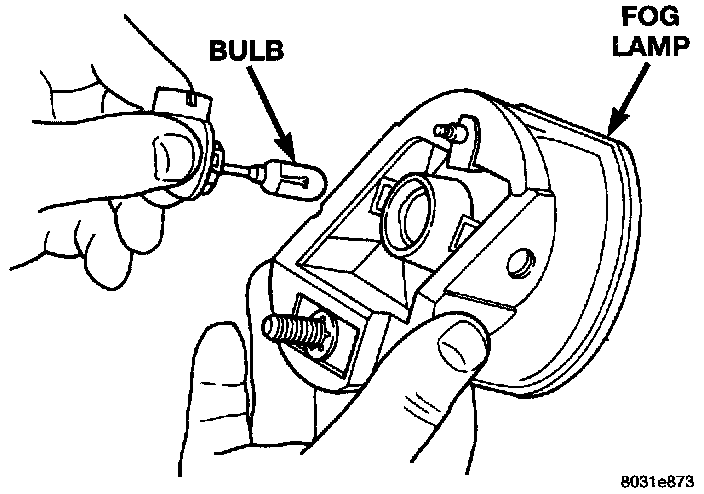

4. Disengage wire connector from fog lamp bulb base.
5. Separate fog lamp from vehicle.

INSTALLATION
Reverse the preceding operation
