Odometer: Service and Repair

REMOVAL
1. Remove the instrument panel top cover and cluster bezel.

Odometer:

2. Remove the four screws attaching cluster to instrument panel.
3. Remove the cluster.
4. Remove the screws attaching PC board cover to cluster.
5. Disconnect the odometer connector from the printed circuit board.
6. Remove the screws attaching lens, dial and gauge assembly to the housing. The bottom screws attaching lens to the housing can be accessed without removing the foam pad.
7. Remove the lens, dial and gauge assembly from housing.

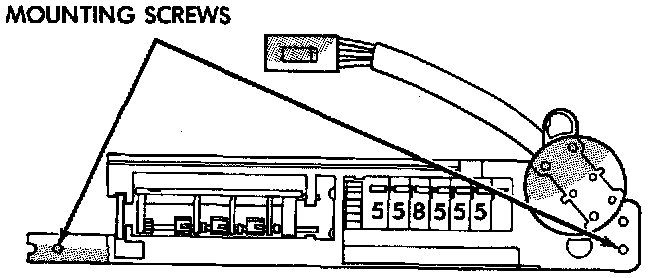

8. Remove the two screws holding the odometer to dial and gauge assembly When setting the dial/gauge and/or cluster assembly down, it must be face up or the gauge operation will be damaged.

INSTALLATION
For installation, reverse the above procedures. Carefully place the dial and gauge assembly on the cluster and ensure that the odometer connector is placed through the board. Install with a slight rocking motion to ensure the pins on gauges line up.
