Instrument Cluster Printed Circuit Board Replacement

REMOVAL
1. Remove the cluster.

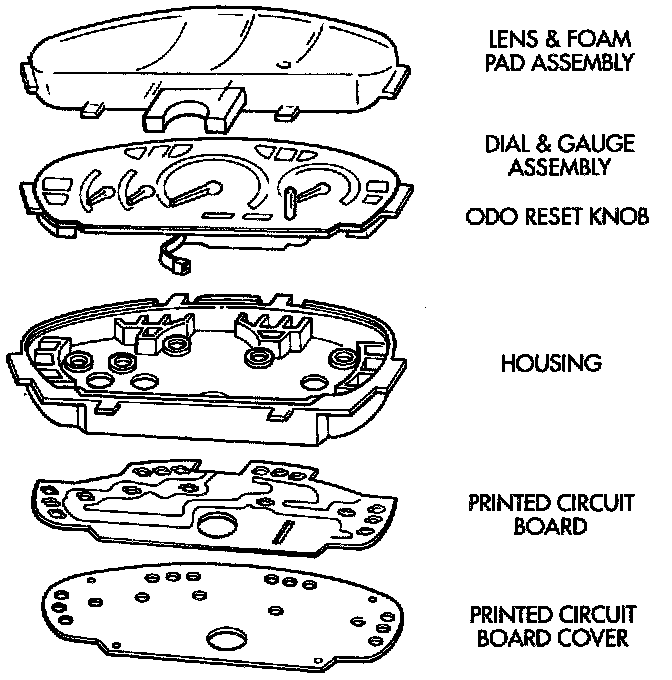

Cluster Assembly:

2. Remove the attaching screws and rear cover. The bottom screws attaching lens to housing can be accessed without removing foam pad.

Printed Circuit Board:

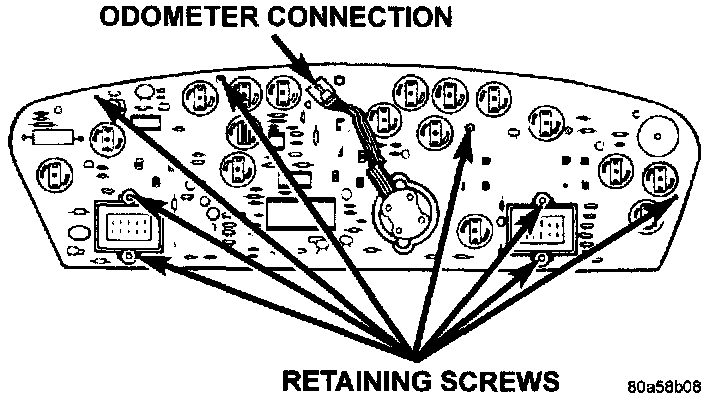

3. Disconnect the odometer connector and remove eight attaching screws that attach the printed circuit board and housing.
4. Carefully remove printed circuit board from the cluster.

INSTALLATION
- For installation, reverse the above procedures. Carefully place board on the cluster and ensure that the odometer connector is placed through the board. Gently press board on cluster with a slight rocking motion to ensure pins on gauges line up.
